HLA Attachments - Telescopic Boom Pole - Hydraulic 20 ft 13½ ft - 3,000 lb Closed / 1,500 lb Extended Capacity [LA-BPHA240BO500]

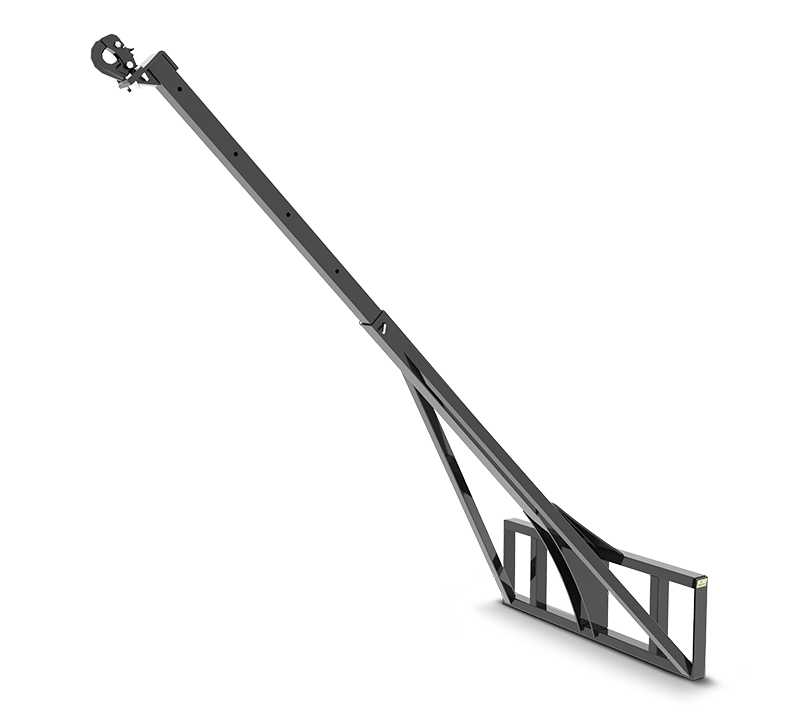

HLA Attachments BPHA240BO500 Hydraulic Telescopic Boom Pole is a heavy-duty material-handling jib designed to provide controlled reach from a universal skid-steer-style quick-attach carrier. Its 13.5 ft main boom incorporates a hydraulically controlled 6.5 ft telescopic section, allowing the attachment to extend from a 13.5 ft closed length to a maximum open length of 20 ft. Rated to handle up to 3,000 lb when closed and 1,500 lb when extended, this boom pole provides a practical combination of lifting capacity and extended reach for moving, placing, or positioning compatible suspended loads.

The BPHA240BO500 uses HLA mounting code BO500 and requires a host machine equipped with compatible auxiliary hydraulics. Hydraulic extension lets the operator adjust the boom length without manually repositioning the telescopic section. At the working end, a pintle hook incorporates a spring-loaded locking arm and pin to help retain the load connection. The attachment weighs approximately 775 lb, making host-machine lift capacity, operating limits, hydraulic compatibility, and load position important considerations when selecting and using the boom pole.

Key Features

• Hydraulically activated telescopic boom for convenient reach adjustment
• Extends from 13.5 ft closed to 20 ft fully open
• 13.5 ft main boom with a 6.5 ft hydraulically controlled telescopic section
• Rated capacity of 3,000 lb with the boom closed
• Rated capacity of 1,500 lb with the boom extended
• Pintle end hook with a spring-loaded locking arm and pin
• BO500 universal skid-steer-style quick-attach mounting configuration
• Approximately 775 lb attachment weight
• Optional spring hose mount and hydraulic hose kit available

Hydraulic Telescopic Reach

The BPHA240 is built around a 13.5 ft main boom and a 6.5 ft hydraulic telescopic section. With the telescopic section retracted, the attachment provides its highest published rated capacity of 3,000 lb. Fully extended, it reaches an overall open length of 20 ft and has a published rated capacity of 1,500 lb. This configuration allows the operator to select additional reach when needed while retaining a higher capacity for work performed closer to the carrier.

Auxiliary hydraulics are required to operate the telescopic extension. A verified flow or pressure requirement is not published for this model, so hydraulic compatibility must be confirmed for the intended host machine.

Load Connection

The boom terminates in a pintle end hook fitted with a spring-loaded locking arm and pin. This provides a defined connection point at the end of the boom for suitable material-handling applications. Always operate within the attachment’s stated capacity at the applicable boom position and within all lift, stability, and operating limits of the host machine.

Compatibility

This configured model uses the BO500 universal skid-steer-style quick-attach mount. HLA lists BO500 as a quick-attach mounting code across numerous skid-steer and compatible loader models. Mounting fit alone does not establish operating suitability; the carrier’s lift capacity, hydraulic system, attachment capacity, and operating limitations must all be confirmed before use.

Optional Equipment

• SHMK: Optional spring hose mount kit
• HK90: Optional 90-inch hose kit with flat-faced couplers

Specifications
