HLA Attachments - Single 3-Point Hitch Bale Spear - 49" Tine (44" Usable Length) - 2,000 lb Capacity - Hay and Bale Handling [LA-SE3PH49]

SKU LA-SE3PH49
Starting at $51500
Starting at $51500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

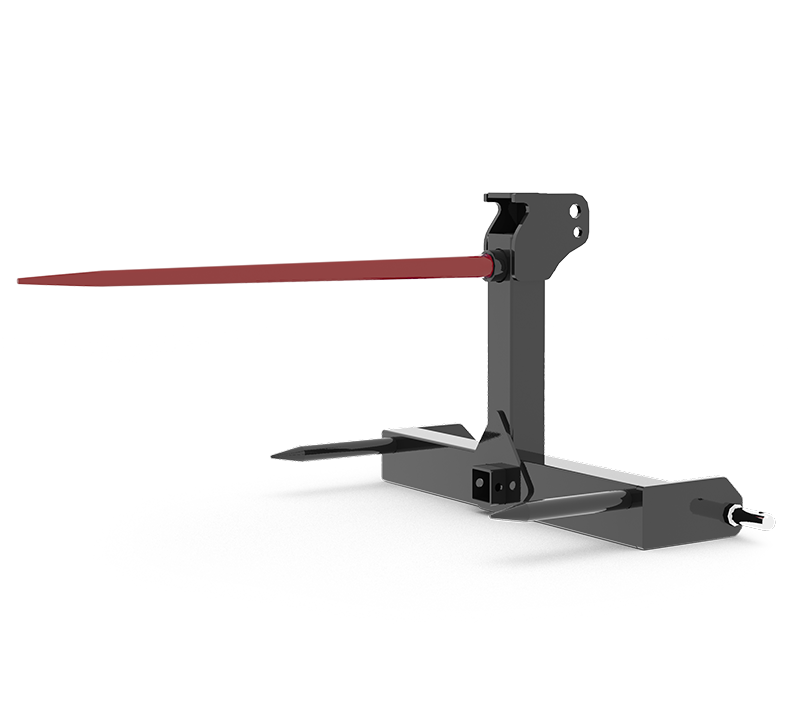

HLA Attachments SE3PH49 Single Three-Point Hitch Bale Spear is a practical hay- and bale-handling attachment designed for tractors equipped with a Category I or Category II three-point hitch. Its single 49-inch Kverneland main tine provides 44 inches of usable tine length, while two stabilizer tines help control the bale during handling. Rated for up to 2,000 lb at a 24-inch load center, this compact attachment is well suited to moving compatible bales around farms, feed areas, storage buildings, and hay yards.

Reliable Single-Spear Bale Handling

The SE3PH49 uses one Kverneland bale tine as its primary lifting point. The main tine penetrates the bale to provide secure support, and the two stabilizer tines help reduce unwanted bale rotation while it is being lifted, carried, or positioned.

With a full main tine length of 49 inches and a usable length of 44 inches, the spear offers substantial engagement with the bale. Its rated capacity is 2,000 lb when measured at a 24-inch load center. Operators should always account for bale weight, load position, tractor capacity, hitch limits, and operating conditions before lifting or transporting a load.

Category I and II Hitch Compatibility

This bale spear fits both Category I and Category II three-point hitches, allowing it to be used with a range of compatible tractors. The three-point-mounted design keeps the attachment directly behind the tractor for straightforward lifting and positioning during routine hay handling.

The attachment also includes a Reese receiver and ball-hitch provision for added versatility. A ball hitch is not included.

Key Features

  • Single three-point hitch bale spear for hay and bale handling
  • One 49-inch Kverneland main bale tine
  • 44 inches of usable main tine length
  • Two stabilizer tines for improved bale control
  • Rated capacity of 2,000 lb at a 24-inch load center
  • Fits Category I three-point hitches
  • Fits Category II three-point hitches
  • Reese receiver and ball-hitch provision
  • Ball hitch is not included
  • Approximate attachment weight of 87 lb

Tractor and Hitch Requirements

The HLA Attachments SE3PH49 requires a compatible Category I or Category II three-point hitch. Before use, confirm that the tractor, three-point hitch, and attachment combination is suitable for the intended bale weight and the stated 24-inch load center. The tractor must remain stable and within its applicable operating and lifting limits throughout bale handling.

Specifications

Brand HLA Attachments
Model / Manufacturer Part Number SE3PH49
Catalogue Product Code LA-SE3PH49
Product Type Single three-point hitch bale spear
Main Tine Type Kverneland bale tine
Main Tine Length 49 in
Usable Tine Length 44 in
Stabilizer Tines 2
Rated Capacity 2,000 lb at a 24 in load center
Three-Point Hitch Compatibility Category I and Category II
Receiver Provision Reese receiver / ball-hitch provision; ball hitch not included
Weight Approximately 87 lb
