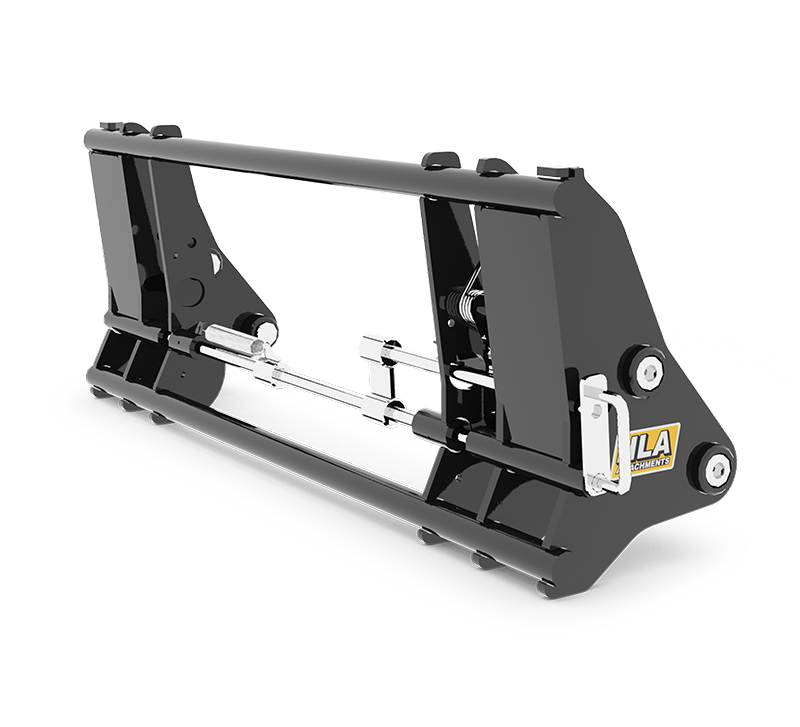

HLA Attachments - Euro Quick Fit Plate mounted to JD 600 Series - Loader Quick-Attach Adapter [LA-ADAO600JD640]

HLA Attachments ADAO600JD640 Euro Quick Fit Plate Adapter converts a John Deere 600 Series quick-attach loader carrier to accept Euro/Global tool-carrier attachments. Designed for operators who need to use Euro/Global implements with a compatible John Deere loader, this loader quick-attach adapter supports attachment systems including Alo/Quicke and John Deere Global. Its TriggerLock automatic latching mechanism is activated by the attachment, while a single-handle release and spring-return lock pins provide straightforward manual operation. Optional hydraulic activation is also available for applications where remote operation is preferred.

Convert Your John Deere 600 Series Loader

The ADAO600JD640 provides a dedicated interface between a John Deere 600 Series loader-side quick-attach carrier and Euro/Global attachments. It allows compatible attachments to be used without replacing the loader’s existing carrier system, making it a practical solution for farms, contractors, property managers, and equipment fleets that operate attachments with different coupling standards.

On the loader side, the adapter is configured for the John Deere 600 Series quick-attach system. On the attachment side, it provides a Euro/Global tool-carrier interface. Compatible attachment systems include Alo/Quicke and John Deere Global.

TriggerLock Latching System

HLA Attachments equips this adapter with its TriggerLock automatic latching mechanism. The locking action is activated by the attachment as it is connected, helping simplify the attachment process. For manual release, the adapter uses a single operating handle. The lock pins incorporate spring return, providing a simple, integrated system for releasing and securing compatible attachments.

For operators who want an alternative to manual activation, an optional hydraulic activation kit is available under part number ADAO600HYD. Hydraulic hose, pressure, and flow requirements are not specified.

Key Features

• Converts a John Deere 600 Series loader carrier to accept Euro/Global attachments
• John Deere 600 Series quick-attach interface on the loader side
• Euro/Global tool-carrier interface on the attachment side
• Accepts compatible attachment systems including Alo/Quicke and John Deere Global
• TriggerLock automatic latching mechanism activated by the attachment
• Single-handle manual release for convenient operation
• Spring return on the lock pins
• Rated capacity of 5,500 lb
• Approximate adapter weight of 190 lb
• Optional hydraulic activation available

Compatibility

This adapter is specifically configured for the following interfaces:

• Loader side: John Deere 600 Series quick-attach loaders
• Attachment side: Euro/Global tool-carrier attachments
• Compatible attachment systems: Alo/Quicke and John Deere Global

Confirm that both the loader carrier and the attachment coupling system match these interfaces before use.

Hydraulic Activation Option

The ADAO600JD640 can be used with manual release through its single-handle mechanism and spring-return lock pins. Optional hydraulic activation is available as HLA Attachments part number ADAO600HYD. Hydraulic activation requirements, including hose configuration, pressure, and flow, are not specified.
