HLA Attachments

HLA Attachments - 98" Stone Fork Retainer Tine Heavy Duty - Stone and Debris Handling [LA-SFRH98BO500]

SKU LA-SFRH98BO500
Starting at $5,01000
Starting at $5,01000

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

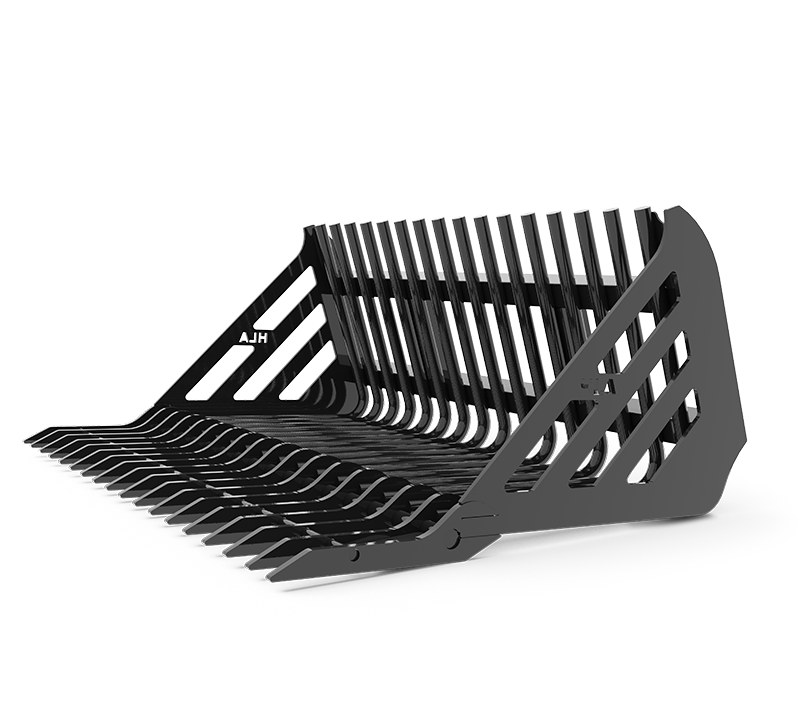

HLA Attachments SFRH98BO500 98-Inch Heavy-Duty Stone Fork is a high-capacity material-handling attachment built for moving stones and debris with a compatible loader. Its heavy-duty construction, 98-inch working width, retainer-style tines, and 9,500 lb rated capacity make it well suited to demanding landscaping, cleanup, and material-handling applications. This configuration includes HLA’s BO500 universal skid-steer-style quick-attach interface for convenient connection to compatible loader carriers.

Heavy-Duty Stone and Debris Handling

The SFRH98BO500 combines a broad working width with closely spaced, heavy-duty tines. Each tine measures 1-3/4 inches in diameter, while the 2-3/4-inch spacing between tines helps support stone and debris during handling. The retainer-style tine design is intended to provide a robust working surface for demanding material-handling tasks.

For durability at the primary wear area, the tine points are 3/4 inch thick and manufactured from 400 Brinell high-strength steel. This heavy-duty construction supports the attachment’s substantial 9,500 lb rated capacity.

Key Features

  • 98-inch working width for broad material coverage
  • Heavy-duty construction for demanding stone and debris handling
  • 9,500 lb rated capacity
  • Retainer-style tine configuration
  • 1-3/4-inch-diameter tines
  • 2-3/4-inch spacing between tines
  • 3/4-inch-thick tine points
  • Tine points manufactured from 400 Brinell high-strength steel
  • BO500 universal skid-steer-style quick-attach mounting interface
  • Approximate attachment weight of 1,655 lb

Wide, High-Capacity Design

With an overall width and working width of 98 inches, this HLA Attachments stone fork provides a wide handling area. Its overall dimensions are 31 inches high and 50 inches deep, creating a substantial attachment for handling heavy loads of stone and debris. The approximate 1,655 lb attachment weight reflects its heavy-duty build and should be considered when matching it to a loader.

Compatibility

The SFRH98BO500 is configured with HLA mounting code BO500 and is compatible with loaders equipped with a universal skid-steer-style quick-attach carrier. Confirm that the loader’s carrier interface, operating capacity, and attachment-handling limits are suitable for the attachment’s approximate weight and intended load before use.

Specifications

Brand HLA Attachments
Model SFRH98BO500
Base Model SFRH98
Product Type Heavy-duty stone and debris fork with retainer-style tines
Mounting Code BO500
Carrier Interface Universal skid-steer quick attach
Working Width 98 in
Transport Width 98 in
Overall Height 31 in
Overall Depth 50 in
Rated Capacity 9,500 lb
Approximate Weight 1,655 lb
Tine Type Retainer style
Tine Diameter 1-3/4 in
Tine Spacing 2-3/4 in
Tine Point Thickness 3/4 in
Tine Point Material 400 Brinell high-strength steel
Product Code LA-SFRH98BO500
