HLA Attachments - 96" Standard Telehandler Bucket [LA-THMB96BO500]

SKU LA-THMB96BO500
Starting at $5,20500
Starting at $5,20500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

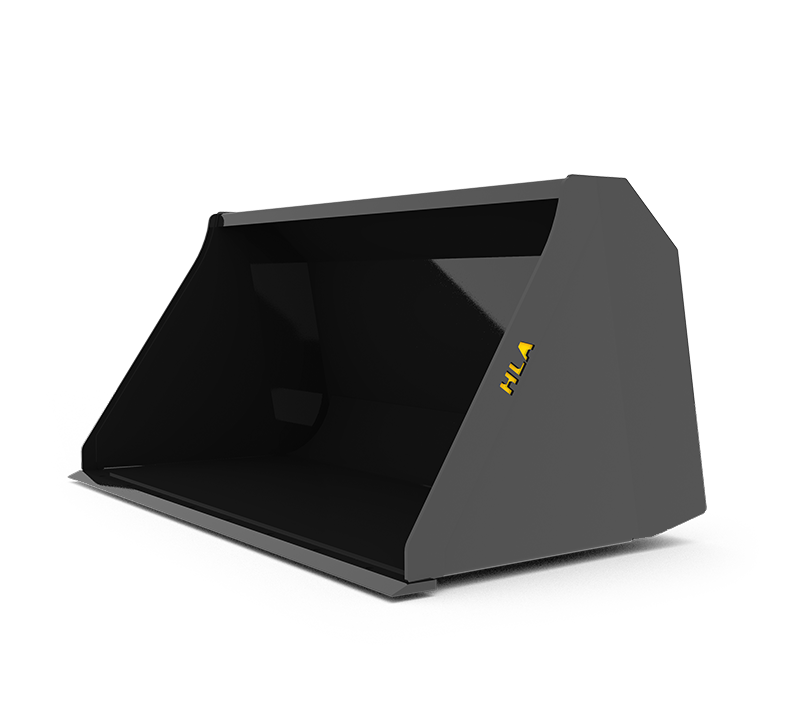

The HLA Attachments THMB96BO500 96-inch Standard Telehandler Bucket is a high-capacity material bucket configured with a BO500 universal skid-steer quick-attach mount. Designed for telescopic-handler material-handling applications, it combines a 96-inch inside width with a 1.7 cu yd struck capacity and a 2.1 cu yd SAE heaped capacity. Heavy bucket material, substantial end plates, a reinforced top lip, and a bevelled cutting edge provide a durable working structure for loading, carrying, and moving material.

Built for Material Handling

The THMB96BO500 is based on HLA Attachments’ THMB96 bucket and measures 43 inches deep by 35 inches high. Its 96-inch inside width provides a broad loading area, while the calculated outside width is approximately 98 inches. This makes the bucket well suited to applications where capacity and coverage are priorities.

Capacity is rated at 1.7 cubic yards struck and 2.1 cubic yards SAE heaped. The bucket has an approximate weight of 1,095 lb, giving operators a clearly defined figure to use when evaluating the attachment against the host machine’s operating capacity and attachment limits.

Durable Bucket Construction

The bucket shell is made from 3/16-inch material and is supported by 1/4-inch end plates. A reinforced top lip strengthens the upper edge of the bucket, helping create a robust structure for regular material-handling work.

At ground level, the bucket is equipped with a 3/4 x 6-inch bevelled cutting edge. It is also drilled to accept a standard bolt-on cutting edge. For applications requiring an additional replaceable edge, an optional 3/4 x 8-inch double-bevel bolt-on cutting edge is available.

Key Features

  • 96-inch inside bucket width
  • Approximately 98-inch calculated outside width
  • 1.7 cu yd struck capacity
  • 2.1 cu yd SAE heaped capacity
  • 3/16-inch bucket material
  • 1/4-inch end plates
  • Reinforced top lip
  • 3/4 x 6-inch bevelled cutting edge
  • Drilled for a standard bolt-on cutting edge
  • Optional 3/4 x 8-inch double-bevel bolt-on cutting edge
  • BO500 universal skid-steer quick-attach configuration
  • Approximate attachment weight of 1,095 lb

Compatibility

The THMB96BO500 uses HLA mounting code BO500, identifying the bucket as a universal skid-steer quick-attach configuration. Confirm that the telehandler or carrier has a compatible universal skid-steer quick-attach interface and sufficient attachment capacity before use.

Specifications

Brand HLA Attachments
Product type Standard telescopic-handler material bucket
Configured part number THMB96BO500
Base bucket model THMB96
Mount configuration BO500 universal skid-steer quick attach (SSQA)
Inside width 96 in
Calculated outside width Approximately 98 in
Depth 43 in
Height 35 in
Struck capacity 1.7 cu yd
SAE heaped capacity 2.1 cu yd
Approximate weight 1,095 lb
Bucket material thickness 3/16 in
End-plate thickness 1/4 in
Standard cutting edge 3/4 x 6 in bevelled cutting edge
Optional cutting edge 3/4 x 8 in double-bevel bolt-on edge (348CEB)
Transport width Approximately 98 in
