HLA Attachments - 96" Regular Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB96BO500]

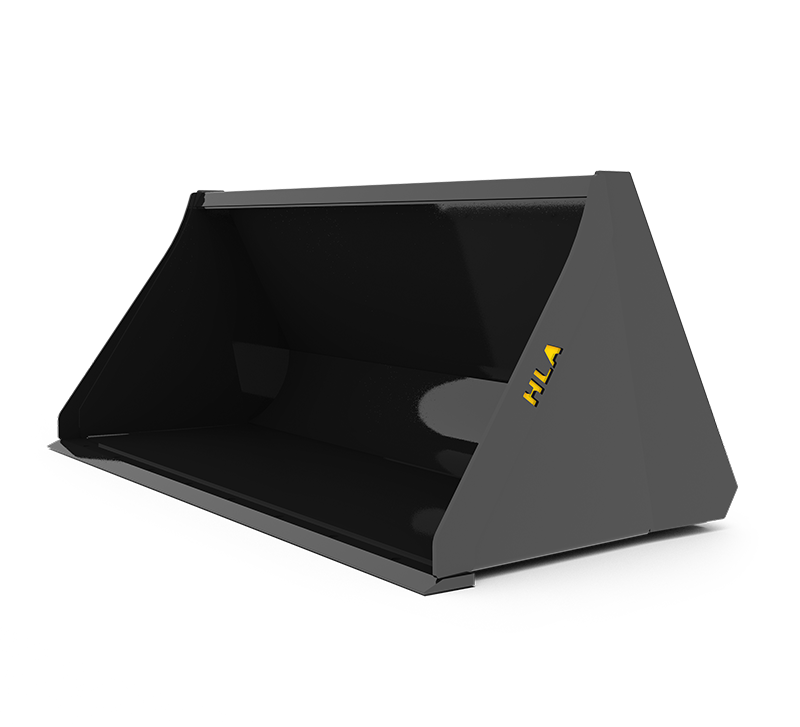

HLA Attachments SB96BO500 96-Inch Regular-Duty Standard Skid-Steer Bucket is a versatile material bucket designed for skid-steer loaders and compatible loader carriers using a universal skid-steer-style quick attach. Its 96-inch inside width, 21.9-cubic-foot struck capacity, and 27.9-cubic-foot SAE heaped capacity provide generous material-handling capability for routine loading, carrying, levelling, filling, and cleanout work. Regular-duty construction combines 3/16-inch bucket material, 1/4-inch end plates, a reinforced top lip, and a heavy 3/4 x 4-inch beveled cutting edge for dependable performance.

Built for Efficient Material Handling

The SB96 bucket has a reinforced round back designed to improve strength while promoting easier filling and cleanout. Tapered, self-cleaning end plates help reduce material buildup, allowing material to move into and out of the bucket more readily. The end plates are also reinforced to support the bucket during regular loading and carrying operations.

A flat upper surface serves as a practical level indicator, helping the operator judge the bucket’s position while grading, levelling, or approaching a pile. With an inside width of 96 inches and an approximate outside width of 98 inches, this model offers broad coverage for moving and spreading material.

Durable Cutting Edge and Optional Wear Components

The bucket is equipped with a 3/4 x 4-inch beveled cutting edge. It is also pre-drilled to accept compatible optional bolt-on cutting edges, allowing the working edge to be configured for different operating needs. Verified options include 6-inch and 8-inch double-bevel bolt-on edges, a 6-inch single-bevel serrated edge, and knock-on ripper teeth with weld-on adapters and flex pins.

Optional cutting edges and teeth are separate accessories and are not identified as standard equipment with the bucket.

Key Features

• 96-inch inside bucket width for broad material-handling coverage
• BO500 universal skid-steer-style quick-attach mounting
• Regular-duty bucket construction
• 3/16-inch bucket material
• 1/4-inch reinforced end plates
• 3/4 x 4-inch beveled cutting edge
• Reinforced top lip for additional structural support
• Reinforced round back supports strength, easier filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top functions as a visual level indicator
• Drilled for an optional bolt-on cutting edge
• 21.9-cubic-foot struck capacity
• 27.9-cubic-foot SAE heaped capacity

Compatibility

The SB96BO500 is configured with HLA’s BO500 universal skid-steer-style quick-attach mount. It is intended for skid-steer loaders and loader models equipped with a compatible skid-steer-style carrier. Confirm the carrier style and the loader’s attachment capacity before installation or use.

Specifications

Available Cutting-Edge and Tooth Options

• 346CEB: 3/4 x 6-inch double-bevel bolt-on edge with hardware
• 348CEB: 3/4 x 8-inch double-bevel bolt-on edge with hardware
• 346CESB: 3/4 x 6-inch single-bevel serrated bolt-on edge with hardware
• RTMBK: Knock-on ripper teeth with weld-on adapter and flex pin

The listed 640-pound figure is the approximate base-bucket weight. A separate verified combined weight for the SB96 bucket with the BO500 mounting configuration is not published.
