HLA Attachments - 96" Regular Duty Standard Skid Steer Bucket and GR84 Grapple - Universal Skid Steer Bucket [LA-SB96GR84BO500]

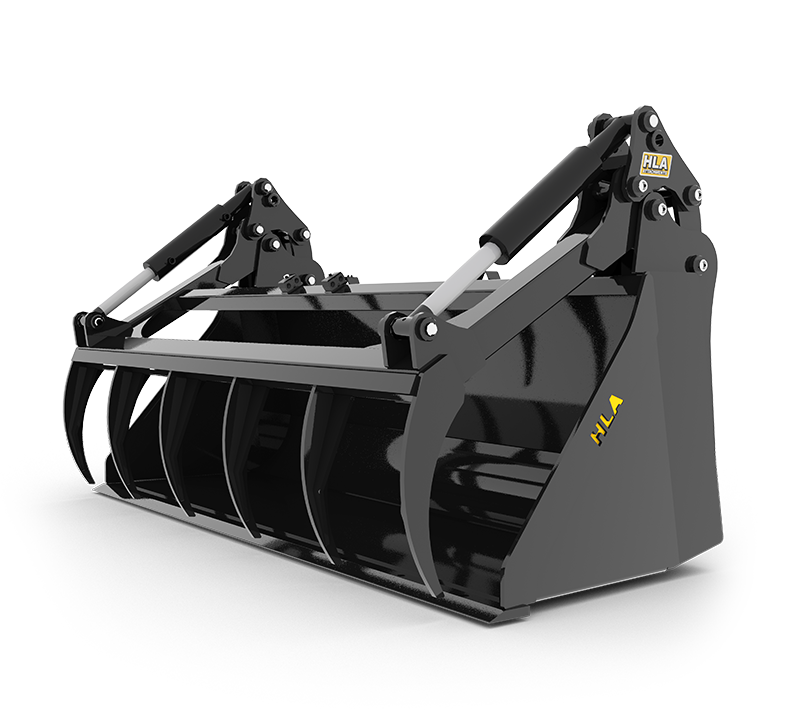

HLA Attachments SB96GR84BO500 96-Inch Regular-Duty Skid-Steer Bucket with GR84 Grapple combines a high-capacity standard bucket with a hydraulic utility grapple for loading, carrying, grading, and handling loose or bulky material. This configured BO500 model features a universal skid-steer quick-attach hitch, a 96-inch bucket, and an 84-inch GR84 grapple that opens up to 70 inches. Two 2-1/2-inch by 8-inch hydraulic cylinders operate the grapple, giving skid-steer operators a practical way to secure and control material during handling and transport.

Bucket and Grapple Performance

The SB96GR84BO500 is built around HLA Attachments’ regular-duty SB96 standard skid-steer bucket. Its 96-inch working width and approximately 98-inch outside width provide broad coverage, while the underlying bucket offers a 21.9-cubic-foot struck capacity and a 27.9-cubic-foot SAE heaped capacity. The bucket measures 28 inches deep and 26 inches high.

An 84-inch GR84 regular utility grapple adds hydraulic material retention to the standard bucket design. With a maximum opening of 70 inches, the grapple can open widely to accommodate bulky loads and then close to help hold material in the bucket. This combination is suitable for general material-handling applications where a conventional bucket alone may not provide enough load control.

Regular-Duty Construction

The underlying SB96 bucket is constructed with 3/16-inch body material and 1/4-inch end plates. A 3/4-inch by 4-inch beveled cutting edge provides a durable working edge for bucket operations. The manufacturer-listed approximate weight for the SB96GR84 base attachment is 1,045 pounds.

Key Features

• 96-inch regular-duty standard skid-steer bucket
• 84-inch GR84 regular utility grapple
• Maximum grapple opening of 70 inches
• Two 2-1/2-inch by 8-inch hydraulic cylinders
• Universal skid-steer quick-attach hitch in the BO500 configuration
• Approximately 98-inch outside bucket width
• 21.9-cubic-foot struck bucket capacity
• 27.9-cubic-foot SAE heaped bucket capacity
• 3/16-inch bucket body material with 1/4-inch end plates
• 3/4-inch by 4-inch beveled cutting edge

Compatibility

The HLA Attachments SB96GR84BO500 is designed for skid-steer loaders equipped with a universal skid-steer quick-attach carrier. Confirm that the loader’s rated operating capacity, lift capacity, hydraulic connections, and attachment-carrier configuration are appropriate for the attachment and intended load before operation.

Hydraulic Requirements and Optional Hose Kits

Auxiliary hydraulics are required to operate the GR84 grapple. The manufacturer does not publish a hydraulic flow or pressure requirement for this product. Hydraulic hose kits are listed as optional and should be selected to match the loader’s connection arrangement.

• Optional HK90 90-inch hose kit with flat-faced couplers
• Optional HK9090 90-inch hose kit with 90-degree flat-faced couplers
• Optional SHMK spring hose mount kit
