HLA Attachments

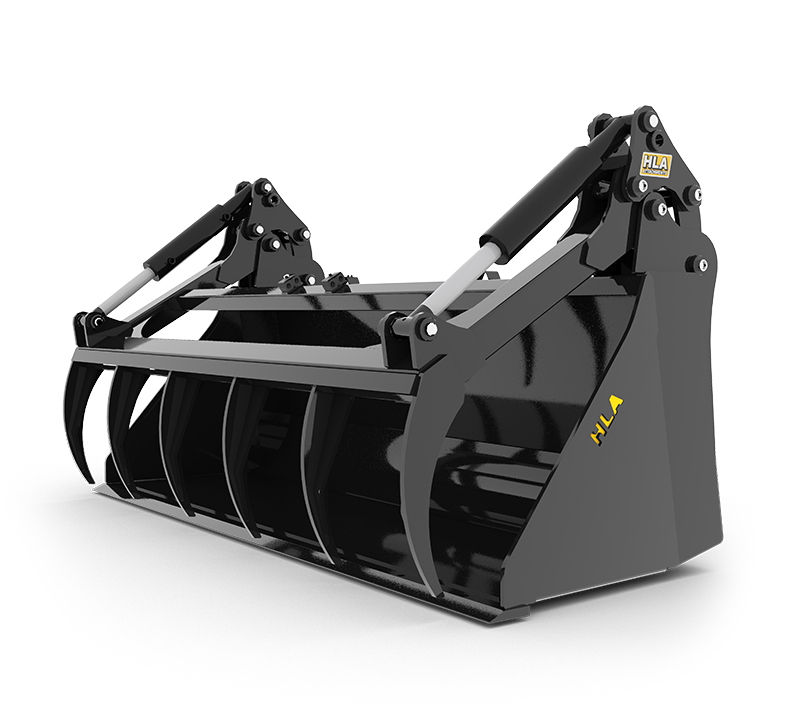

HLA Attachments - 96" Low Profile Skid Steer Bucket and GRS84 Grapple - Low-Profile Skid Steer Attachment [LA-SBLP96GRS84BO500]

SKU LA-SBLP96GRS84BO500
Starting at $4,70500
Starting at $4,70500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

HLA Attachments SBLP96GRS84BO500 Low-Profile Skid-Steer Grapple Bucket combines a 96-inch low-profile bucket with an 84-inch GRS84 hydraulic grapple for material handling, loading, cleanup, and grapple-bucket applications. Designed specifically for skid-steer loaders with limited clearance for grapple arms, this configuration provides a maximum 35-inch grapple opening while maintaining a practical low-profile design. The BO500 universal skid-steer quick-attach interface allows the attachment to connect to compatible skid-steer loaders.

Low-Profile Bucket and Grapple Configuration

This HLA attachment pairs a broad 96-inch bucket with the GRS84 grapple assembly. The grapple helps secure bulky, loose, or irregular material within the bucket during handling and transport. Its 35-inch maximum opening provides room to engage larger loads, while the low-profile configuration is suited to machines where grapple-arm clearance is limited.

The grapple is operated by two 2-1/2 x 8-inch hydraulic cylinders. Using two cylinders provides actuation across the grapple assembly, helping the attachment close over material held in the bucket. The complete assembly has an approximate weight of 985 lb.

Key Features

  • 96-inch low-profile skid-steer bucket
  • Integrated 84-inch GRS84 grapple
  • Designed for skid-steer loaders with limited grapple-arm clearance
  • Maximum grapple opening of 35 inches
  • Two 2-1/2 x 8-inch hydraulic cylinders
  • BO500 universal skid-steer quick-attach mounting interface
  • Approximate attachment weight of 985 lb

Compatibility

The SBLP96GRS84BO500 is configured with HLA Attachments’ BO500 universal skid-steer quick-attach interface. It is intended for compatible skid-steer loaders and is particularly suited to machines with limited clearance for grapple arms.

Before installation, verify that the loader has the appropriate universal skid-steer quick-attach connection and sufficient operating capacity for an attachment weighing approximately 985 lb, in addition to the intended material load.

Specifications

Brand HLA Attachments
Model SBLP96GRS84BO500
Manufacturer Base Part Number SBLP96GRS84
Product Type Low-profile skid-steer grapple bucket
Nominal Bucket Width 96 in
Grapple GRS84
Grapple Size 84 in
Maximum Grapple Opening 35 in
Grapple Cylinders Two 2-1/2 x 8 in hydraulic cylinders
Mounting Interface BO500 universal skid-steer quick attach
Approximate Weight 985 lb
