HLA Attachments - 96" Landscape Stone Picker w/ Power Reel - Stone and Debris Handling [LA-SFRL96BO500]

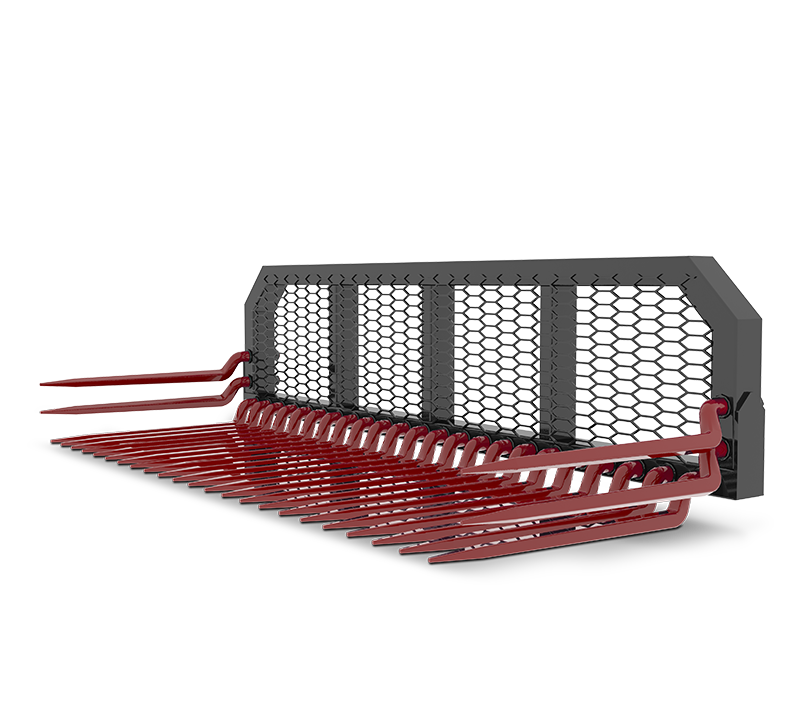

HLA Attachments SFRL96-BO500 96-Inch Landscape Stone Picker with Power Reel is a heavy-duty stone and debris handling attachment designed for collecting windrowed stones and loose stones from soil being prepared for seedbeds. Its 96-inch working width covers a broad area, while the power reel/rake helps gather material into the stone fork for more efficient cleanup. The BO500 configuration features a universal skid-steer quick-attach mount, making it suitable for compatible skid steers and other carriers equipped with the same attachment interface.

Efficient Stone and Debris Collection

The SFRL96 combines a landscape stone fork with a power reel/rake to help collect stones that have already been windrowed as well as loose stones encountered during seedbed preparation. This combination is useful for landscaping, soil preparation, property maintenance, and material-handling applications where stones and debris need to be separated from the working surface.

The fork uses 3/4-inch-diameter tines with 1-3/4-inch spacing between the tines. This arrangement provides a structured collection surface for gathering stone and debris while working through prepared soil. The points are made from 1/2-inch-thick, 400 Brinell high-strength steel for durability in demanding ground-contact applications.

Heavy-Duty 96-Inch Design

With a 96-inch width, the HLA SFRL96-BO500 is built to handle substantial working areas. The attachment measures 32 inches in overall height and 35-1/2 inches in overall depth. Its approximate weight is 1,465 pounds, reflecting its robust construction and making carrier capacity an important consideration when matching the attachment to a machine.

Key Features

• 96-inch landscape stone picker for stone and debris handling
• Power reel/rake assists with gathering stones into the fork
• Designed to collect windrowed stones and loose stones from soil being prepared for seedbeds
• 3/4-inch-diameter tines
• 1-3/4-inch spacing between tines
• 1/2-inch-thick points made from 400 Brinell high-strength steel
• Universal skid-steer quick-attach mount in the BO500 configuration
• Approximately 1,465-pound attachment weight
• Optional hydraulic hose and hose-management accessories available

Compatibility

This SFRL96-BO500 model is configured with a universal skid-steer quick-attach mount. Before installation, confirm that the carrier has the appropriate universal skid-steer attachment interface and sufficient operating capacity for an attachment weighing approximately 1,465 pounds.

Optional Accessories

An optional HK90 90-inch hose kit is available with flat-faced couplers. An optional SHMK spring hose mount kit is also available to support hose management. These items are optional accessories rather than standard specifications of the attachment.
