HLA Attachments - 96" Heavy Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB96HDBO500]

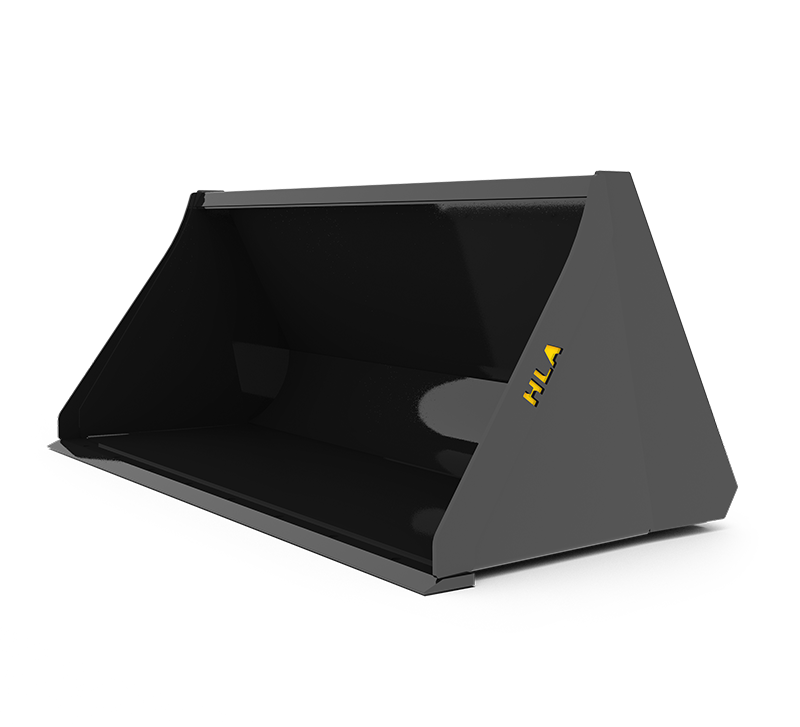

HLA Attachments SB96HD 96-Inch Heavy-Duty Standard Skid-Steer Bucket is a high-capacity material-handling bucket designed for loaders equipped with a universal skid-steer-style quick-attach carrier. Configured with HLA’s BO500 quick-attach mount, this robust bucket combines 1/4-inch bucket material, 1/4-inch end plates, a reinforced top lip, and a substantial 3/4 x 6-inch beveled cutting edge. Its 27.9-cubic-foot SAE heaped capacity makes it well suited to loading, carrying, levelling, and cleanout work where strength, usable volume, and straightforward operation are priorities.

Heavy-Duty Construction for Demanding Work

The SB96HD is built around a reinforced round-back design that adds strength while helping material enter and leave the bucket cleanly. Reinforcement across the top lip, back, and end plates supports the bucket during regular heavy-duty loading operations. The round back also promotes easy filling and cleanout, reducing areas where material can remain trapped.

Both the bucket shell and end plates are manufactured from 1/4-inch material. At ground level, the 3/4 x 6-inch beveled cutting edge provides a durable working edge for entering material, scraping, and general bucket work. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be configured with supported wear-edge options when required.

Useful Capacity and Wide Material Coverage

With a 96-inch inside width and an approximate overall width of 98 inches, this bucket provides broad coverage for moving and spreading material. It offers a struck capacity of 21.9 cubic feet and an SAE heaped capacity of 27.9 cubic feet. The 30-inch depth and 26-inch height provide a practical bucket profile for filling, carrying, dumping, and cleanout.

Tapered, self-cleaning end plates are designed to reduce material buildup along the bucket sides. This shape works together with the reinforced round back to support efficient loading and discharge. The flat top can also be used as a visual level indicator, helping the operator judge bucket position during grading, levelling, or material pickup.

Key Features

• Heavy-duty standard skid-steer bucket for loading, carrying, levelling, and cleanout tasks
• 96-inch inside width with an approximate 98-inch overall width
• BO500 universal skid-steer-style quick-attach mount
• 1/4-inch bucket material for heavy-duty construction
• 1/4-inch end plates for additional side strength
• 3/4 x 6-inch beveled cutting edge
• Reinforced top lip for added structural support
• Reinforced round back and end plates for strength, easy filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top serves as a convenient bucket-level indicator
• Drilled for a standard bolt-on cutting edge
• Optional double-bevel or serrated bolt-on cutting edges and knock-on ripper teeth
• 21.9-cubic-foot struck capacity
• 27.9-cubic-foot SAE heaped capacity
• Approximate bucket weight of 795 lb

Universal Skid-Steer Compatibility

This SB96HD bucket is supplied with HLA Attachments’ BO500 mounting configuration. BO500 is HLA’s mounting code for skid-steer-style quick-attach applications. The bucket is compatible with loaders equipped with a universal skid-steer-style quick-attach carrier.

Before ordering, confirm that the loader uses the appropriate universal skid-steer-style carrier and can safely accommodate the bucket’s approximate 795-pound weight, overall dimensions, and intended load. No PTO or auxiliary hydraulic connection is required for the bucket itself.
