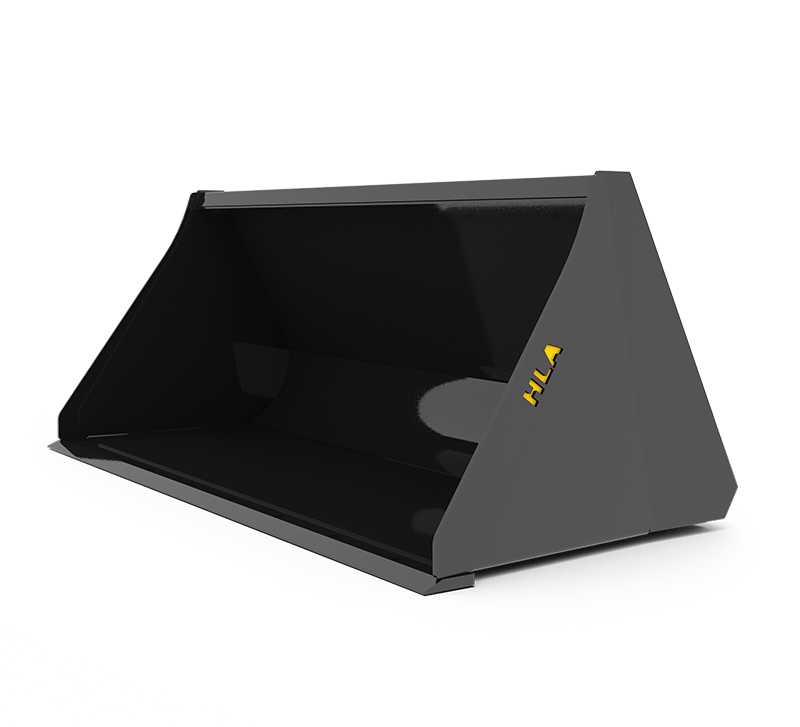

HLA Attachments - 96" Heavy Duty Standard Skid Steer Bucket - Long Lip - Universal Skid Steer Bucket [LA-SB9640HDBO500]

The HLA Attachments SB9640HD 96-inch Heavy Duty Standard Skid-Steer Bucket with Long Lip is a high-capacity material-handling bucket designed for skid steers equipped with a universal quick-attach interface. This configuration combines a 96-inch inside width, 40-inch depth, and long-lip profile with heavy-duty 1/4-inch bucket material, reinforced construction, and a substantial bevelled cutting edge. Its 27.5-cubic-foot struck capacity and 35.9-cubic-foot SAE heaped capacity make it well suited to loading, carrying, levelling, and handling bulk material. The installed HLA BO500 mount provides compatibility with the universal skid-steer quick-attach system.

Heavy-Duty Bucket Construction

The SB9640HD is built with 1/4-inch bucket material and 1/4-inch end plates for demanding material-handling work. A reinforced top lip adds strength across the bucket opening, while the reinforced round back and end plates contribute to structural durability. The rounded internal profile is also designed to support easy filling and cleaner material release during unloading.

At the working edge, the bucket features a 3/4 x 6-inch bevelled cutting edge. This robust edge supports material entry and general bucket work, while pre-drilled mounting points allow the bucket to accept a standard bolt-on cutting edge. The long-lip heavy-duty configuration provides a deep, practical bucket profile for moving larger volumes of loose material.

Designed for Filling, Levelling and Cleanout

The bucket’s 40-inch depth and 24-inch height provide useful capacity without sacrificing visibility of the bucket’s upper edge. Its flat top serves as a level indicator, helping the operator judge bucket position during levelling and grading tasks.

Tapered, self-cleaning end plates are designed to reduce material buildup around the sides of the bucket. Combined with the reinforced round back, this shape promotes easier filling and cleanout. These design details are particularly useful during repetitive loading cycles where efficient material release can help reduce carryback.

Key Features

• 96-inch inside bucket width
• Long-lip heavy-duty standard bucket configuration
• 27.5 cu ft struck capacity
• 35.9 cu ft SAE heaped capacity
• 1/4-inch bucket material
• 1/4-inch end plates
• 3/4 x 6-inch bevelled cutting edge
• Drilled to accept a standard bolt-on cutting edge
• Reinforced top lip for added strength
• Reinforced round back and end plates
• Rounded profile supports easy filling and cleanout
• Flat top serves as a visual level indicator
• Tapered, self-cleaning end plates help reduce material buildup
• BO500 universal skid-steer quick-attach mount
• Approximate manufacturer-listed weight of 920 lb

Capacity and Dimensions

With a 96-inch inside width and an SAE heaped capacity of 35.9 cubic feet, this bucket provides broad coverage and substantial carrying volume. The long-lip profile and 40-inch depth are suited to bulk material loading, while the reinforced construction supports regular heavy-duty use. The listed 920-pound approximate bucket weight should be considered when confirming machine lift capacity and operating limits.

Compatibility

This bucket is fitted with HLA mount code BO500, the universal skid-steer quick-attach interface. Confirm that the carrier uses the universal skid-steer quick-attach system and has sufficient rated operating and lift capacity for the approximately 920-pound attachment plus the intended material load.

Power and Hydraulic Requirements

The SB9640HD bucket is a non-powered attachment. It does not require PTO power or an auxiliary hydraulic service. Attachment operation is handled through the skid steer’s loader arms and quick-attach system.
