HLA Attachments - 96" Heavy Duty Standard Front-End Loader Bucket [LA-MB96HDBO500]

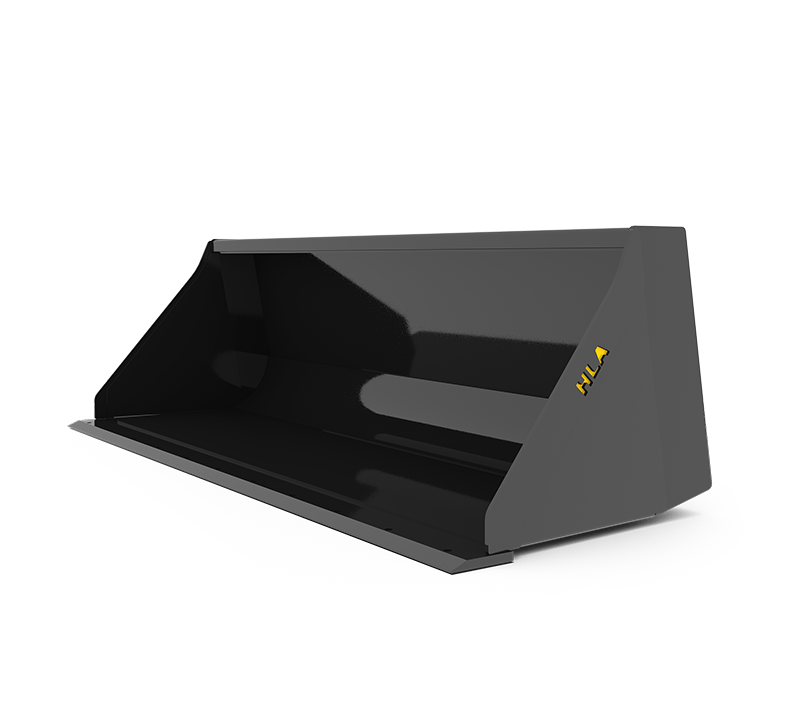

HLA Attachments MB96HD 96-Inch Heavy-Duty Standard Front-End Loader Bucket with BO500 Mount is a robust material bucket designed for loaders equipped with a universal skid-steer-style quick-attach interface. Combining heavy-duty construction with a generous 28.6 cu ft SAE heaped capacity, this bucket is built for loading, carrying, levelling, and handling bulk material. Its reinforced round back promotes easy filling and cleanout, while the tapered, self-cleaning end plates help reduce material buildup. A flat top provides a convenient visual level indicator for more precise bucket positioning during operation.

Heavy-Duty Bucket Construction

The MB96HD features 1/4-inch bucket material and 1/4-inch end plates for strength in demanding material-handling applications. Its reinforced top lip, round back, and end plates create a durable bucket structure while preserving a practical shape for loading and discharging material.

A 3/4 x 6-inch beveled cutting edge provides a substantial working edge at the front of the bucket. The bucket is also drilled to accept an optional bolt-on cutting edge, allowing the working edge to be configured with compatible HLA accessories. Available accessory choices include double-bevel and serrated cutting edges, as well as knock-on ripper teeth with weld-on adapters.

Capacity and Working Dimensions

With a 96-inch inside width, 30-inch depth, and 25-inch height, this heavy-duty bucket provides ample room for handling bulk loads. It has a struck capacity of 22.5 cu ft and an SAE heaped capacity of 28.6 cu ft. The calculated outside width is 98 inches, providing a clear reference for overall implement width during storage, transport planning, and operation.

The bucket weighs approximately 790 lb. Loader capacity, operating limits, and stability should be considered together with the weight of the bucket and the material being carried.

Key Features

• Heavy-duty standard front-end loader material bucket
• 96-inch inside width and 98-inch calculated outside width
• 22.5 cu ft struck capacity
• 28.6 cu ft SAE heaped capacity
• 1/4-inch bucket material
• 1/4-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Reinforced top lip for additional structural strength
• Reinforced round back and end plates support strength, easy filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat bucket top serves as a visual level indicator
• Pre-drilled for an optional bolt-on cutting edge
• BO500 universal skid-steer-style quick-attach mount

Loader Compatibility

This MB96HD bucket is configured with HLA mounting code BO500. It is compatible with loaders equipped with a universal skid-steer-style quick-attach interface. Confirm that the loader’s mounting interface matches the BO500 configuration and that the loader is suitable for the bucket’s approximately 790 lb weight, dimensions, and intended loaded capacity.

Optional Accessories

The MB96HD is drilled for an optional bolt-on cutting edge. Compatible accessory options listed for this model include:

• 346CEB: 3/4 x 6-inch double-bevel bolt-on cutting edge with hardware
• 348CEB: 3/4 x 8-inch double-bevel bolt-on cutting edge with hardware
• 346CESB: 3/4 x 6-inch single-bevel serrated bolt-on cutting edge with hardware
• RTMBK: Knock-on ripper teeth with weld-on adapter and flex pin
