HLA Attachments - 96" Grapple Only To Fit 108" Fork Or Bucket with Cylinders - Hydraulic Material Handling [LA-GRX96]

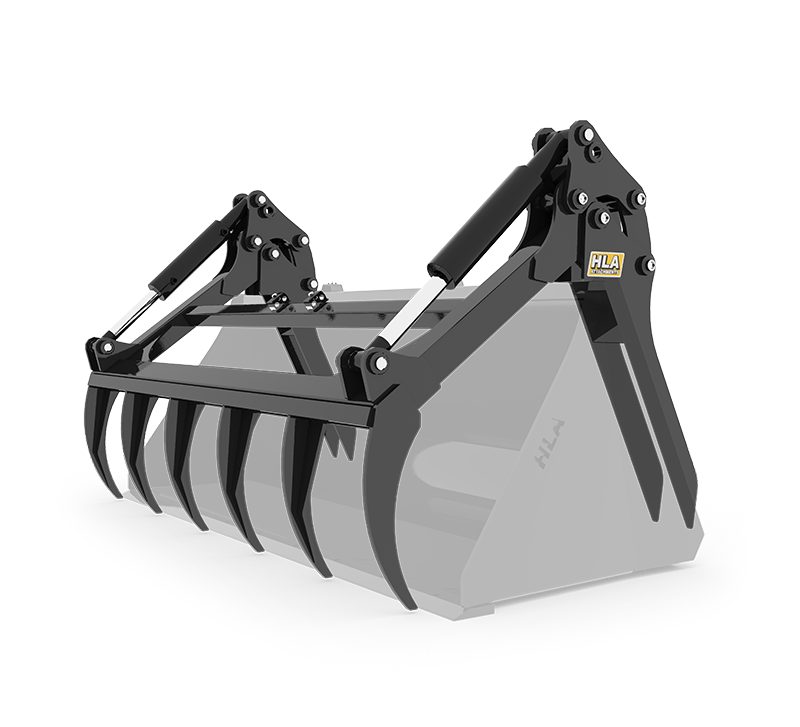

HLA Attachments GRX96 96-Inch Extra Large Utility Grapple is a heavy-duty hydraulic grapple designed for handling large round and square bales. Built to fit a 108-inch fork or bucket, this grapple-only assembly provides a maximum opening of 72 inches and can accommodate round bales up to 6 feet in size. Hydraulic cylinders are included, making the GRX96 a practical choice for material-handling applications that require secure control of large, bulky loads. The supporting fork or bucket is not included.

Heavy-Duty Bale Handling

The GRX96 features a specific heavy-duty design intended for handling large round and square bales. Its 96-inch grapple width provides broad coverage across the load, while the 72-inch maximum opening creates the clearance needed to engage large materials. HLA states that the grapple can accommodate round bales measuring up to 6 feet.

This model is supplied as the grapple assembly only and is designed to be installed on a compatible 108-inch fork or bucket. It can also be fitted to HLA THMBHV and THMBHVX bucket families, providing a compatible grapple option for those bucket configurations.

Key Features

• Extra Large Utility Grapple for hydraulic material handling
• Specific heavy-duty design for large round and square bales
• 96-inch grapple width
• Fits a 108-inch fork or bucket
• Opens up to 72 inches
• Accommodates round bales up to 6 feet
• Removable, bolt-on mounting posts
• Hydraulic cylinders included
• Approximate weight of 810 lb
• Compatible with HLA THMBHV and THMBHVX buckets

Removable Bolt-On Mounting

Removable, bolt-on mounting posts support installation on the appropriate fork or bucket while allowing the grapple configuration to be removed when required. This design makes the GRX96 suitable for operators who need to add heavy-duty grapple capability to a compatible 108-inch material-handling attachment.

Hydraulic Equipment

The HLA GRX96 includes hydraulic cylinders. A hydraulic hose kit is optional and is not listed as included with the grapple. HLA identifies the HK90 hose kit with flat-faced couplers and the HK9090 hose kit with 90-degree flat-faced couplers as optional 90-inch hose-kit choices.

Compatibility

• Designed to fit a 108-inch fork or bucket
• Can be fitted to HLA THMBHV buckets
• Can be fitted to HLA THMBHVX buckets
• Bucket or fork is not included

Specifications

Please note: This product is the 96-inch grapple assembly with hydraulic cylinders. The 108-inch fork or bucket and optional hydraulic hose kit are not included.
