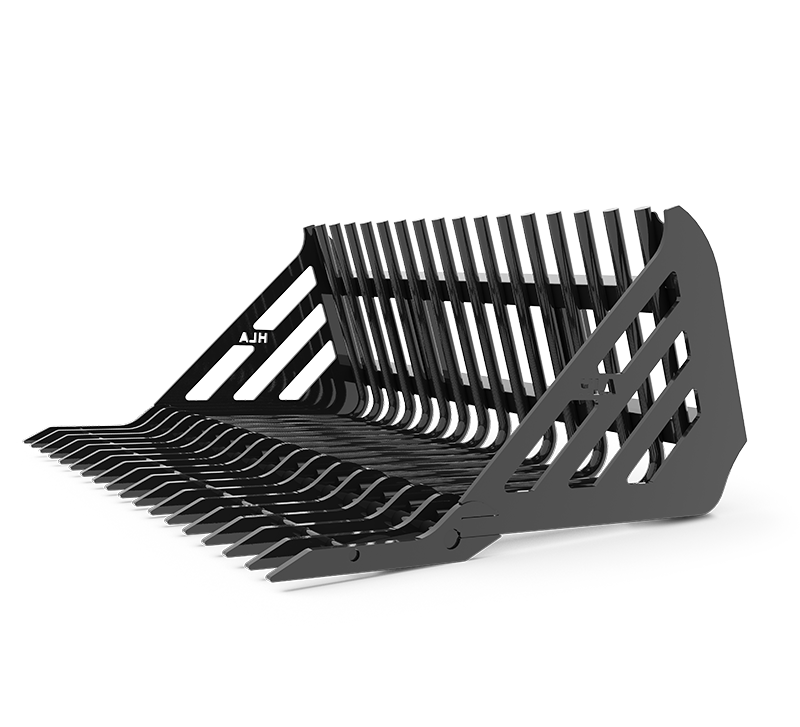

HLA Attachments - 94" Stone Fork Retainer Tine Heavy Duty - Stone and Debris Handling [LA-SFRH94BO500]

HLA Attachments SFRH94BO500 94-Inch Heavy-Duty Stone Fork is built for demanding stone, debris, landscaping, and material-handling work. This retainer-tine stone fork combines a wide 94-inch working width with heavy-duty construction and a rated capacity of 9,500 lb. Its closely spaced, 1-3/4-inch-diameter tines provide a durable working surface for handling stone and debris, while 3/4-inch-thick tine points made from 400 Brinell high-strength steel withstand demanding use. The BO500 universal skid-steer quick-attach configuration allows the attachment to connect to compatible universal skid-steer quick-attach carriers.

Heavy-Duty Stone and Debris Handling

The SFRH94BO500 is designed for jobs that require a substantial stone fork with a broad working width. Its 94-inch width provides extensive coverage for landscaping and material-handling applications, while the 50-inch overall depth offers a large working area. The attachment has an overall height of 31 inches and uses retainer-style tines as part of its heavy-duty design.

A 9,500 lb rated capacity supports demanding handling applications when the attachment is used with a suitably rated carrier. Each tine measures 1-3/4 inches in diameter, with 2-3/4 inches of spacing between tines. This consistent tine arrangement is suited to working with stone and debris. At the leading edge, the 3/4-inch-thick tine points are manufactured from 400 Brinell high-strength steel for durability where the attachment engages material.

BO500 Quick-Attach Configuration

This model is supplied in the BO500 universal skid-steer quick-attach configuration. It is intended for compatible universal skid-steer quick-attach carriers and HLA BO500 quick-attach applications. The quick-attach mounting arrangement provides a practical connection for operators using compatible carrier equipment.

Key Features

• Heavy-duty stone fork for stone, debris, landscaping, and material-handling applications
• 94-inch working width and 94-inch transport width
• 9,500 lb rated capacity
• Retainer-style tine design
• Heavy-duty construction for demanding work
• 1-3/4-inch-diameter tines
• 2-3/4-inch spacing between tines
• 3/4-inch-thick tine points
• Tine points made from 400 Brinell high-strength steel
• BO500 universal skid-steer quick-attach mount configuration

Compatibility

The HLA SFRH94BO500 is configured for:

• Universal skid-steer quick-attach carriers
• HLA BO500 quick-attach applications

Carrier capacity and attachment compatibility should be confirmed before use, particularly given the stone fork’s 9,500 lb rated capacity and substantial attachment weight.

Specifications

The listed 1,590 lb weight is the manufacturer’s approximate weight for the base SFRH94 attachment. A separate combined weight for the complete BO500-mounted configuration is not published.
