HLA Attachments - 90" Stone Fork Retainer Tine Heavy Duty - Stone and Debris Handling [LA-SFRH90BO500]

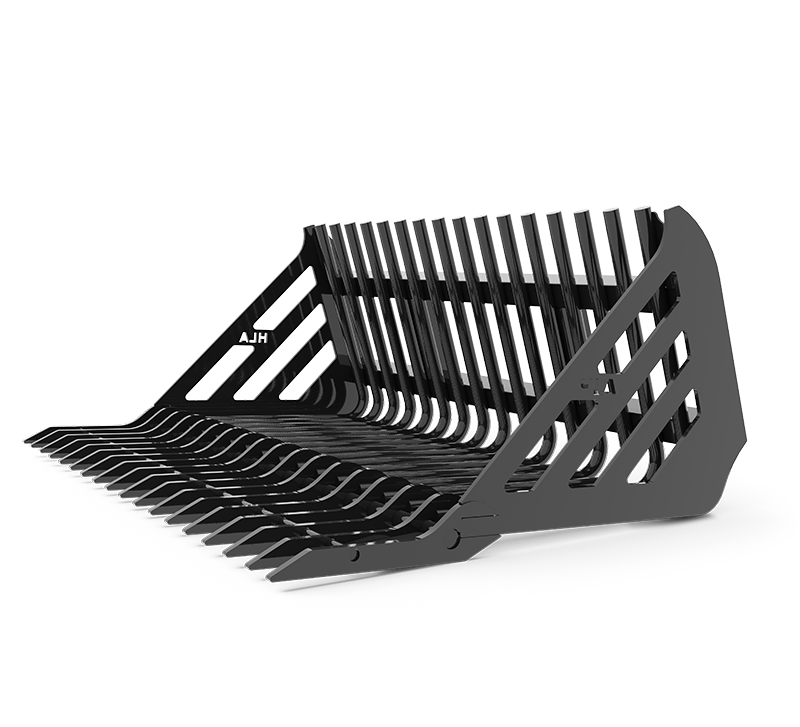

HLA Attachments SFRH90 90-Inch Heavy-Duty Stone Fork with BO500 Quick Attach is built for demanding stone, debris, landscaping, and material-handling work. Its 90-inch working width, heavy-duty construction, and 9,500 lb rated capacity provide the strength and coverage required for substantial cleanup and handling tasks. Retainer-style tines help contain material, while closely spaced, high-strength tine points allow the fork to separate stones and debris from finer material. This configuration includes the HLA BO500 skid-steer-style quick-attach mount for use with applicable loader and skid-steer carriers.

Heavy-Duty Stone and Debris Handling

The SFRH90 is a fork-only attachment designed for handling stones, debris, and similar materials. Across its 90-inch width, the fork uses 1-3/4-inch-diameter retainer-style tines with 2-3/4-inch spacing between them. This layout provides a durable working surface while allowing smaller material to pass between the tines.

Each tine has a 3/4-inch-thick point made from 400 Brinell high-strength steel. This wear-resistant construction is suited to demanding contact with stone and debris. With a 9,500 lb rated capacity and an approximate attachment weight of 1,520 lb, the SFRH90 is engineered as a substantial heavy-duty implement.

Designed for Productive Material Cleanup

The retainer-style tine design helps keep collected material on the fork while it is being handled. A 50-inch overall depth provides room for carrying bulky material, and the 31-inch overall height contributes to the attachment’s retaining profile. The wide working area makes this model suitable for clearing and sorting material over larger areas, including landscaping sites and other stone or debris-handling applications.

This product is the HLA SFRH90 fork-only model equipped with the BO500 mount. It is not the SFRHDB90 split-grapple variant or the SFRH90GR84 utility-grapple package.

Key Features

• Heavy-duty HLA Attachments SFRH90 stone and debris fork
• 90-inch nominal width for broad working coverage
• 9,500 lb rated capacity
• 1-3/4-inch-diameter retainer-style tines
• 2-3/4-inch spacing between tines for separating finer material from stones and debris
• 3/4-inch-thick tine points
• Tine points manufactured from 400 Brinell high-strength steel
• 31-inch overall height and 50-inch overall depth
• BO500 skid-steer-style quick-attach mounting configuration
• Approximate attachment weight of 1,520 lb

Compatibility

The SFRH90 in this configuration is equipped with the HLA BO500 quick-attach mount. BO500 denotes a skid-steer-style quick-attach configuration for use on applicable loaders and skid-steer carriers. Confirm that the carrier uses the BO500 mounting configuration and is suitable for the attachment’s approximate 1,520 lb weight and intended load before installation or operation.
