HLA Attachments - 90" Regular Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB90BO500]

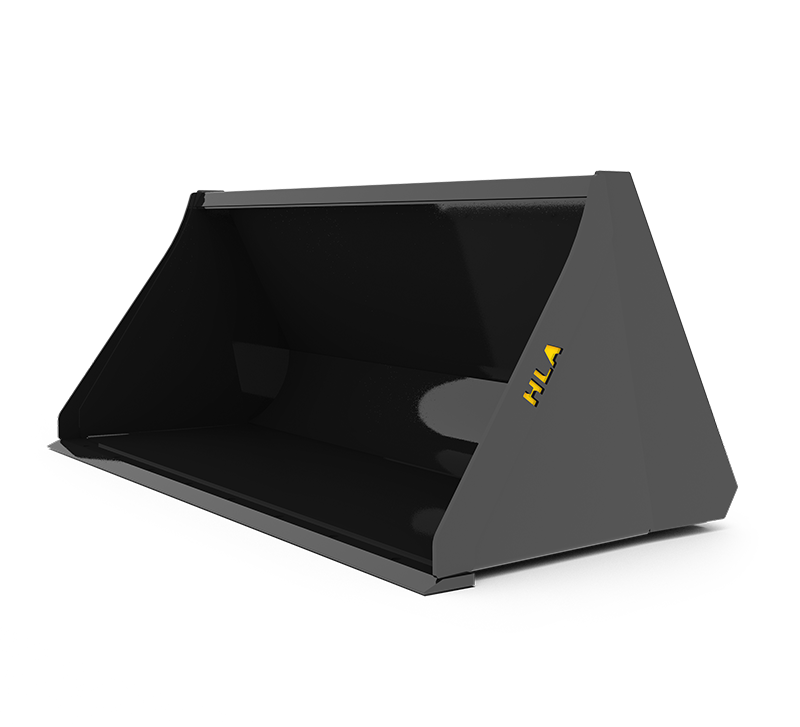

HLA Attachments SB90BO500 90-Inch Regular-Duty Standard Skid-Steer Bucket combines practical capacity, durable construction, and a BO500 universal skid-steer quick-attach mount for routine material-handling work. Its 90-inch inside width and 26.1-cubic-foot SAE heaped capacity provide ample room for moving compatible bulk materials, while the reinforced round back supports easy filling and cleanout. A flat top helps the operator judge bucket position as a level indicator, and tapered, self-cleaning end plates are designed to reduce material buildup during operation.

Durable Regular-Duty Construction

The SB90 bucket is built with 3/16-inch main bucket material and 1/4-inch end plates. Its reinforced top lip, round back, and reinforced end plates add strength in key areas. The bucket’s round-back design also promotes smoother filling and helps material release during cleanout.

At the working edge, a 3/4-by-4-inch beveled cutting edge provides a substantial contact surface for loading and cleanup tasks. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be equipped accordingly when required.

Useful Capacity and Operator-Friendly Design

With a 20.6-cubic-foot struck capacity and a 26.1-cubic-foot SAE heaped capacity, the SB90BO500 is sized for regular-duty loading and material movement. Its 28-inch depth and 26-inch height create a practical bucket profile, while the approximately 610-pound weight balances capacity with regular-duty construction.

The 90-inch measurement is the bucket’s inside width. Following the manufacturer’s instruction to add two inches to the inside-width measurement, the outside and transport width is approximately 92 inches. The flat top provides a visible reference that can help indicate when the bucket is level.

Key Features

• 90-inch regular-duty standard-material bucket
• BO500 universal skid-steer quick-attach mount
• 3/16-inch main bucket material
• 1/4-inch end plates
• 3/4-by-4-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Reinforced top lip for added strength
• Reinforced round back and end plates
• Round-back profile supports easy filling and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top serves as a level indicator
• 20.6-cubic-foot struck capacity
• 26.1-cubic-foot SAE heaped capacity

Compatibility

The HLA Attachments SB90BO500 is configured with the BO500 mount for universal skid-steer quick-attach carriers. It is compatible with John Deere 553, 563, and 673 loaders when those loaders are equipped with skid-steer carriers. It may also fit selected Case IH, Kubota, Massey Ferguson, New Holland, Terex, Woods, and other loaders equipped with compatible skid-steer quick-attach carriers.

Compatibility depends on the loader having the correct skid-steer quick-attach carrier. Confirm the carrier type before ordering. This bucket does not require a PTO or hydraulic connection.
