HLA Attachments - 90" Heavy Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB90HDBO500]

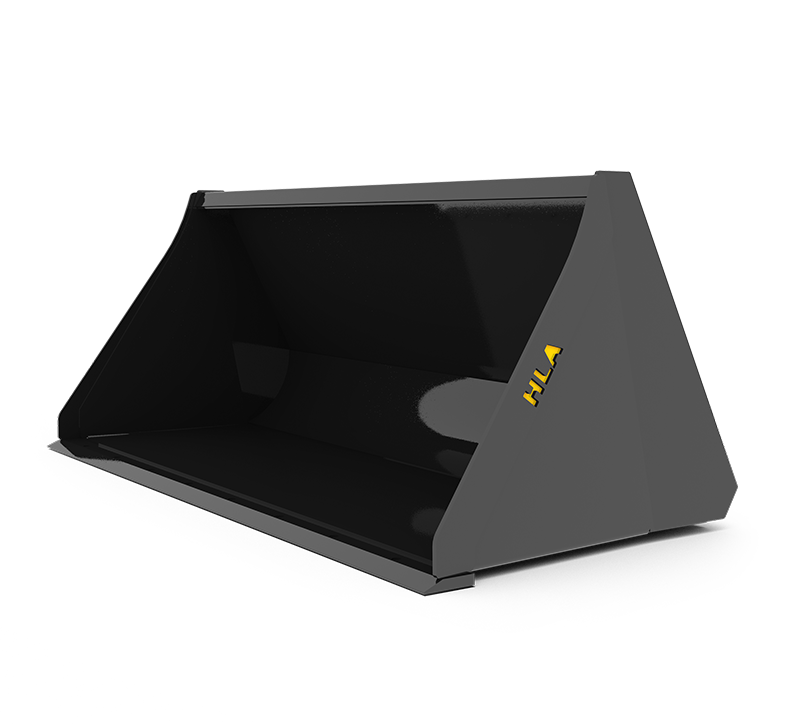

HLA Attachments SB90HDBO500 90-Inch Heavy Duty Standard Skid-Steer Bucket combines heavy-duty construction, generous capacity, and a universal skid-steer quick-attach mount for demanding material-handling applications. Its 90-inch inside width and 26.1-cubic-foot SAE heaped capacity provide ample room for loading and moving bulk material, while the reinforced round back, reinforced top lip, and 1/4-inch bucket material support dependable everyday use. Tapered, self-cleaning end plates help reduce material buildup, and the flat bucket top serves as a convenient level indicator for more controlled operation.

Built for Heavy-Duty Material Handling

The SB90HDBO500 is the universal skid-steer-mounted configuration of HLA Attachments’ SB90HD bucket. The bucket body uses 1/4-inch material with matching 1/4-inch end plates, providing a robust structure for regular loading, carrying, grading, and cleanout work. Its reinforced top lip adds support across the bucket opening, while reinforcement around the round back and end plates increases strength in key areas.

The round-back design is intended to promote easy filling and cleanout. Combined with the tapered, self-cleaning end plates, this shape helps material flow into and out of the bucket while reducing buildup along the sides. The bucket measures 30 inches deep and 26 inches high, with a struck-level capacity of 20.6 cubic feet and an SAE heaped capacity of 26.1 cubic feet.

Durable Cutting Edge

A 3/4 x 6-inch beveled cutting edge provides a strong working surface at the front of the bucket. The bucket is also pre-drilled to accept a standard bolt-on cutting edge, allowing the working edge to be equipped for additional wear protection when required. Optional bolt-on cutting edges and knock-on ripper teeth are available for applications requiring a replaceable edge or more aggressive material penetration.

Operator-Friendly Bucket Profile

In addition to strengthening the bucket, the reinforced flat top provides a visual reference that can act as a level indicator. This helps the operator judge bucket position during loading, carrying, and grading tasks. With an approximate outside width of 92 inches and an approximate weight of 760 pounds, the bucket offers broad coverage while retaining the familiar connection of a universal skid-steer quick-attach system.

Key Features

• Heavy-duty standard skid-steer bucket for bulk material handling
• 90-inch inside width with approximately 92-inch outside width
• Universal skid-steer BO500 quick-attach mount configuration
• 1/4-inch main bucket material for heavy-duty construction
• 1/4-inch end plates for added structural strength
• 3/4 x 6-inch beveled cutting edge
• Reinforced top lip for increased support across the bucket opening
• Reinforced round back and end plates for strength, easy filling, and cleanout
• Tapered, self-cleaning end plates designed to reduce material buildup
• Flat top acts as a practical bucket-level indicator
• Drilled for installation of a standard bolt-on cutting edge
• Optional bolt-on cutting edges and knock-on ripper teeth available
• 20.6-cubic-foot struck-level capacity
• 26.1-cubic-foot SAE heaped capacity

Compatibility

The HLA Attachments SB90HDBO500 is configured with the BO500 universal skid-steer quick-attach mount. It is compatible with loaders equipped with a universal skid-steer quick-attach interface.

Specifications
