HLA Attachments - 84" Telehandler Scrap Grapple Bucket - Hydraulic Scrap and Material Handling [LA-THSGB84BO500]

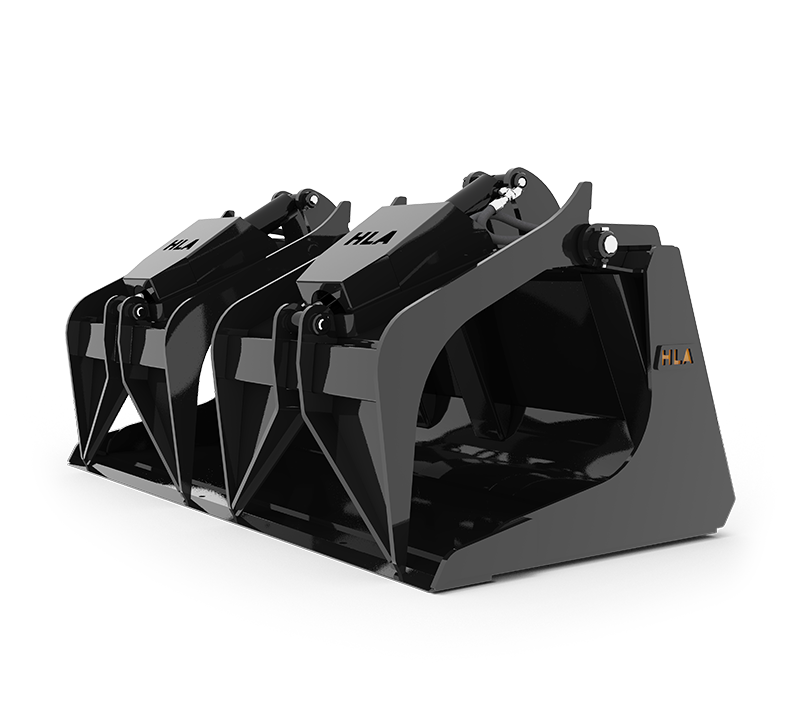

HLA Attachments THSGB84BO500 84-Inch Telehandler Scrap Grapple Bucket is a heavy-duty hydraulic attachment built for handling awkward, abrasive loads with greater control. Combining a 37.8 cu ft struck capacity, 48.8 cu ft SAE heaped capacity, and two independently operating hydraulic grapples, it is suited to demanding scrap and material-handling applications. The bucket features an 84-inch inside width and is supplied in HLA’s BO500 skid-steer-style quick-attach mounting configuration for compatible machines and loaders.

Controlled Handling for Irregular Loads

Two independent grapples allow the bucket to secure uneven or irregular material more effectively than a single full-width grapple. Each grapple is operated by a 2-1/2 x 8-inch hydraulic cylinder, providing hydraulic clamping action across the load. This independent arrangement is especially useful when the material is not distributed evenly within the bucket.

The THSGB84 bucket configuration provides substantial carrying volume without sacrificing the structural features required for abrasive work. It has a 37.8 cu ft struck capacity and a 48.8 cu ft SAE heaped capacity. Its 84-inch inside width offers a broad loading area, while the 31-inch overall height and 34-inch overall depth produce a practical bucket profile for collecting, containing, and moving bulky material.

Heavy-Duty Bucket Construction

HLA Attachments designed this scrap grapple bucket for applications involving awkward and abrasive loads. The bucket uses 1/4-inch material with 3/8-inch end plates for added reinforcement at the sides. A 3/4 x 6-inch bevelled cutting edge provides a durable working edge for loading and material collection.

The bucket is also drilled to accept a standard bolt-on cutting edge. This replaceable-edge provision allows a compatible bolt-on edge to be fitted where required, helping protect the bucket’s primary cutting edge in demanding operating conditions.

Key Features

• 84-inch inside bucket width
• Two independently operating hydraulic grapples
• Two 2-1/2 x 8-inch hydraulic cylinders
• Designed for awkward, abrasive loads
• 37.8 cu ft struck capacity
• 48.8 cu ft SAE heaped capacity
• Heavy-duty 1/4-inch bucket material
• Reinforced 3/8-inch end plates
• 3/4 x 6-inch bevelled cutting edge
• Drilled for a standard bolt-on cutting edge
• BO500 skid-steer-style quick-attach mounting configuration

Compatibility

The THSGB84BO500 is configured with the HLA BO500 skid-steer-style quick-attach mount. It is intended for machines or loaders equipped with a compatible HLA BO500 carrier.

BO500 is a mounting-interface code used by HLA for numerous skid-steer-style quick-attach loader carriers; it does not identify one specific telehandler make or model. Confirm the host machine’s exact carrier configuration against HLA’s applicable mounting-code information before ordering or installation.

Hydraulic Requirements

This attachment requires hydraulic service for its two independent grapples and is supplied with two 2-1/2 x 8-inch hydraulic cylinders. Required hydraulic flow, operating pressure, hoses, and couplers are not specified. The host machine’s hydraulic connections and suitability should be confirmed before installation.
