HLA Attachments - 84" Landscape Stone Picker w/ Power Reel - Stone and Debris Handling [LA-SFRL84BO500]

SKU LA-SFRL84BO500
Starting at $10,94500
Starting at $10,94500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

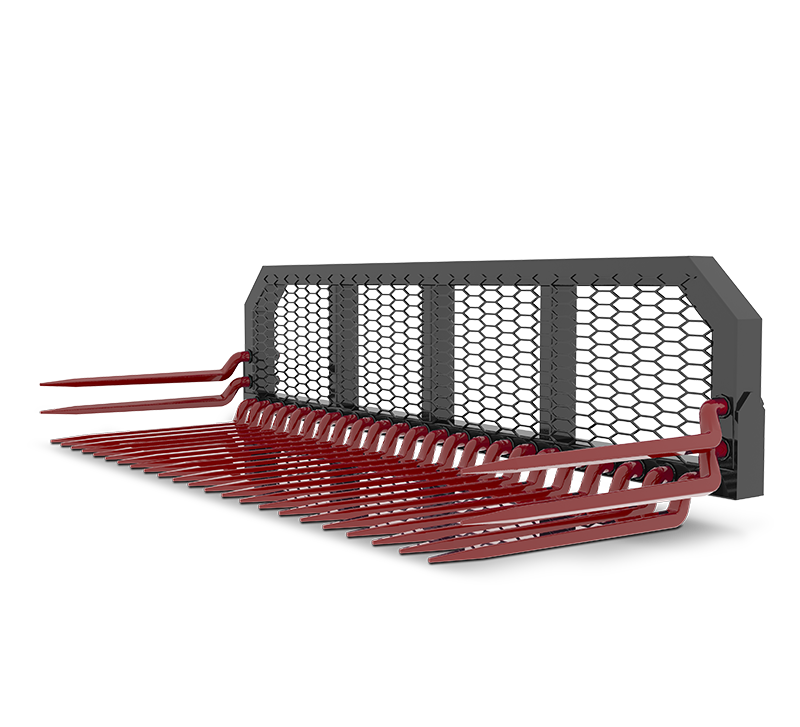

HLA Attachments SFRL84BO500 84-Inch Landscape Stone Picker with Power Reel is a loader-mounted solution for collecting stones and debris during landscaping and seedbed preparation. Its hydraulically powered reel helps gather both windrowed material and loose stones directly from the soil, while the spaced tine design allows soil and finer material to pass through. This model combines an 84-inch nominal working width with durable 3/4-inch-diameter tines, high-strength steel points, and a BO500 universal skid-steer-style quick-attach mount.

Efficient Stone and Debris Collection

The SFRL84 is designed for cleaning and preparing ground where stones and debris would otherwise interfere with grading, landscaping, or seeding. The hydraulic power reel actively moves material into the attachment rather than relying only on forward travel. This makes the stone picker suitable for collecting stones that have already been arranged into windrows as well as loose stones encountered across soil being prepared for seedbeds.

Tines are spaced 1-3/4 inches apart to help separate collected stones and debris from soil and fine material. Each tine or shaft has a 3/4-inch diameter, while the 1/2-inch-thick points are made from 400 Brinell high-strength steel for demanding material-handling work.

Key Features

  • 84-inch nominal working width for covering broad areas efficiently
  • Hydraulically powered reel for gathering stones and debris
  • Designed to collect both windrowed stones and loose stones
  • Helps prepare soil for landscaping and seedbed work
  • 1-3/4-inch spacing between tines allows soil and finer material to pass through
  • Heavy 3/4-inch-diameter tines or shafts
  • 1/2-inch-thick points made from 400 Brinell high-strength steel
  • BO500 universal skid-steer-style quick-attach mounting interface
  • Approximate attachment weight of 1,330 lb
  • Optional hydraulic hose and hose-management kits available

Compatibility

This configuration uses the HLA BO500 mounting code and is compatible with loaders and machines equipped with a universal skid-steer-style quick-attach interface. Confirm that the carrier has the correct mounting interface, sufficient operating capacity for the attachment’s approximate 1,330 lb weight, and suitable auxiliary hydraulic connections before use.

Hydraulic Requirements

Auxiliary hydraulics are required to operate the powered reel. Hydraulic flow and pressure requirements are not specified for this model. An optional 90-inch hose kit with flat-faced couplers is available as part HK90. An optional spring hose mount kit, part SHMK, is also available to assist with hose management.

Specifications

Manufacturer HLA Attachments
Full Model SFRL84BO500
Base Attachment Model SFRL84
Product Type Loader-mounted landscape stone picker with hydraulic power reel
Working Width 84 in
Nominal Transport Width 84 in
Approximate Weight 1,330 lb
Overall Height 32 in
Overall Depth 35-1/2 in
Tine Diameter 3/4 in
Tine Spacing 1-3/4 in
Point Thickness 1/2 in
Point Material 400 Brinell high-strength steel
Mounting Code BO500
Mounting Interface Universal skid-steer-style quick attach
Hydraulic Requirement Auxiliary hydraulics required for power reel operation
Optional Hydraulic Hose Kit 90 in hose kit with flat-faced couplers, part HK90
Optional Hose-Management Kit Spring hose mount kit, part SHMK
Product Code LA-SFRL84BO500
