HLA Attachments - 84" High Volume Snow Bucket - High Volume Snow Handling [LA-SBSN84BO500]

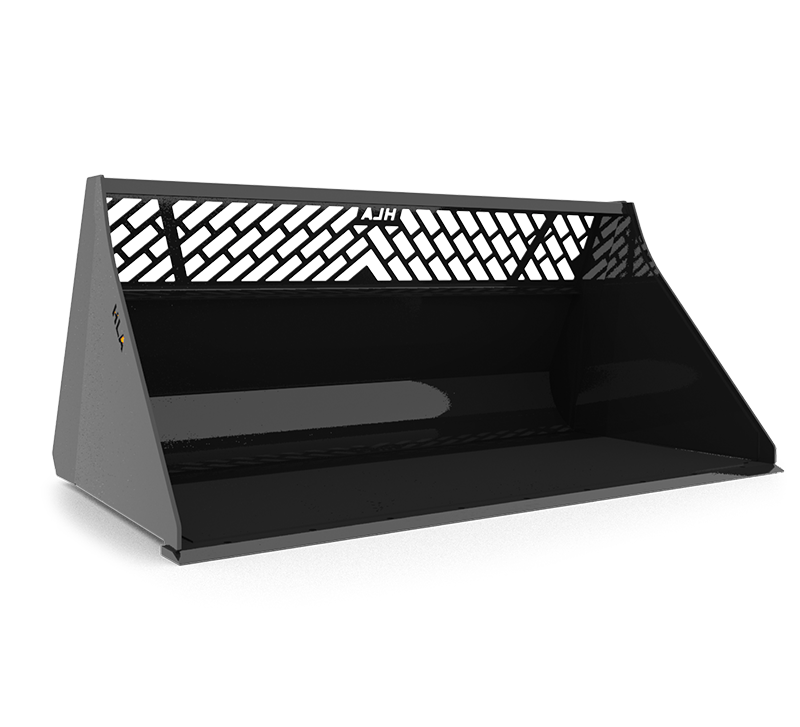

HLA Attachments SBSN84BO500 84-Inch High Volume Snow Bucket is designed for efficient high-volume snow handling with compatible skid-steer loaders. Its 84-inch inside width, 33.0-cubic-foot struck capacity, and 41.2-cubic-foot SAE heaped capacity provide ample room for moving snow efficiently. A reinforced, rounded back supports easy filling and cleanout, while the screened-back design improves operator visibility. Heavy-duty bucket construction, reinforced end plates, and a substantial beveled cutting edge make this attachment well suited to demanding snow removal applications.

High-Volume Snow Handling

The SBSN84BO500 combines a wide working profile with a deep, high-capacity bucket body. It measures 39 inches deep and 31 inches high, allowing it to carry substantial quantities of snow per pass. The bucket has an 84-inch inside width and a calculated 86-inch outside width, based on the manufacturer’s instruction to add 2 inches to the inside width.

Its 41.2-cubic-foot SAE heaped capacity helps reduce the number of trips required when clearing or relocating snow. The 33.0-cubic-foot struck capacity provides an additional standardized measure of bucket volume. These dimensions and capacities make the attachment useful for moving accumulated snow in yards, parking areas, lanes, and other locations suited to skid-steer operation.

Durable Bucket Construction

The main bucket is made from 3/16-inch material and is supported by 1/4-inch end plates. A reinforced top lip and reinforced rounded back add strength to the bucket structure. The rounded interior profile also promotes smooth filling and helps material release during cleanout.

At ground level, the bucket is equipped with a 3/4-by-4-inch beveled cutting edge. The bucket is also drilled to accept a standard bolt-on cutting edge, providing a provision for an additional wear component when required.

Operator-Friendly Design

A screened back gives the operator improved visibility through the upper rear portion of the bucket. This can help with bucket positioning and provide a clearer view of the work area compared with a fully enclosed back.

The flat top of the bucket serves as a convenient level indicator, helping the operator judge bucket position. Tapered, self-cleaning end plates are designed to reduce material buildup, while the reinforced rounded back and end plates support easy filling and cleaner material discharge.

Key Features

• 84-inch inside width for broad snow-clearing coverage
• 33.0-cubic-foot struck capacity
• 41.2-cubic-foot SAE heaped capacity for high-volume handling
• 3/16-inch main bucket material with 1/4-inch end plates
• Reinforced top lip for added structural strength
• Reinforced rounded back and end plates for strength, easy filling, and cleanout
• 3/4-by-4-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Screened back for improved operator visibility
• Flat top serves as a bucket-level indicator
• Tapered, self-cleaning end plates help reduce snow and material buildup
• Approximate attachment weight of 725 pounds

Compatibility and Equipment Requirements

The HLA Attachments SBSN84BO500 uses a skid-steer attachment interface and is compatible with skid-steer loaders equipped for this interface. It is a non-powered bucket, so no PTO or auxiliary hydraulic connection is required. Before installation, confirm that the loader has the correct attachment interface and adequate operating capacity for the bucket’s approximate 725-pound weight and intended load.

Specifications
