HLA Attachments - 84" Heavy Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB84HDBO500]

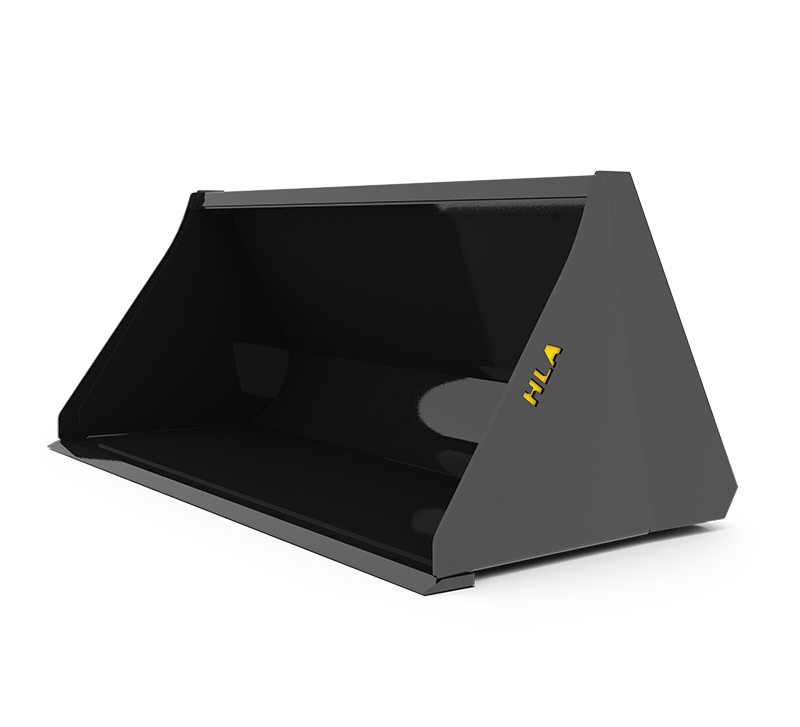

HLA Attachments SB84HD 84-Inch Heavy Duty Standard Skid Steer Bucket is a robust, high-capacity material-handling bucket built for universal skid-steer-style quick-attach carriers. This exact SB84HDBO500 configuration combines an 84-inch inside width with the HLA BO500 universal skid-steer quick-attach mount. Its reinforced construction, 1/4-inch bucket material, 1/4-inch end plates and substantial 3/4 x 6-inch beveled cutting edge make it well suited to demanding loading, carrying, grading and cleanout work. With a 24.3-cubic-foot SAE heaped capacity and an approximate weight of 710 lb, it provides a practical combination of capacity, strength and durability.

Heavy-Duty Bucket Construction

The SB84HD is designed with reinforcement in key areas exposed to regular loading forces and material abrasion. Its reinforced top lip strengthens the upper edge, while the reinforced round back and end plates contribute to overall bucket rigidity. The rounded interior profile also supports easy filling and cleanout, helping material flow into and out of the bucket more effectively.

Tapered, self-cleaning end plates are designed to reduce material buildup during operation. The flat top can be used as a visual level indicator, helping the operator judge bucket position while approaching a pile, grading or carrying material. At the working edge, the bucket is equipped with a 3/4 x 6-inch beveled cutting edge and is pre-drilled to accept a standard bolt-on cutting edge.

Key Features

• 84-inch inside width for broad material handling and grading coverage
• BO500 universal skid-steer quick-attach mounting configuration
• Heavy-duty construction for demanding bucket applications
• 1/4-inch bucket material
• 1/4-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Reinforced top lip for added strength
• Reinforced round back and end plates
• Rounded back supports easy filling and cleanout
• Tapered, self-cleaning end plates help reduce material accumulation
• Flat bucket top serves as a level indicator
• Drilled for installation of a standard bolt-on cutting edge
• 19.2-cubic-foot struck capacity
• 24.3-cubic-foot SAE heaped capacity

Universal Skid-Steer Compatibility

This bucket uses HLA Attachments mounting code BO500, identified by the manufacturer as the Universal Skidsteer Weld-on Kit. It is intended for skid-steer-style universal quick-attach carriers. Confirm that the carrier uses the corresponding universal skid-steer quick-attach interface and can safely accommodate the bucket’s dimensions, approximate 710 lb attachment weight and loaded operating weight.

Cutting Edge and Tooth Options

The standard bucket includes a heavy 3/4 x 6-inch beveled cutting edge. For applications requiring a replaceable wear surface or a more aggressive material-engaging edge, the bucket is drilled for a standard bolt-on cutting edge. Compatible optional configurations listed by HLA include double-bevel and serrated bolt-on cutting edges. Optional knock-on ripper teeth are also available for applications where improved penetration or material breakup is required.

• 346CEB: 3/4 x 6-inch double-bevel bolt-on cutting edge with hardware
• 348CEB: 3/4 x 8-inch double-bevel bolt-on cutting edge with hardware
• 346CESB: 3/4 x 6-inch single-bevel serrated bolt-on cutting edge with hardware
• RTMBK: Knock-on ripper teeth with weld-on adapter and flex pin

Optional cutting edges and ripper teeth are accessory configurations and should be selected separately where required.
