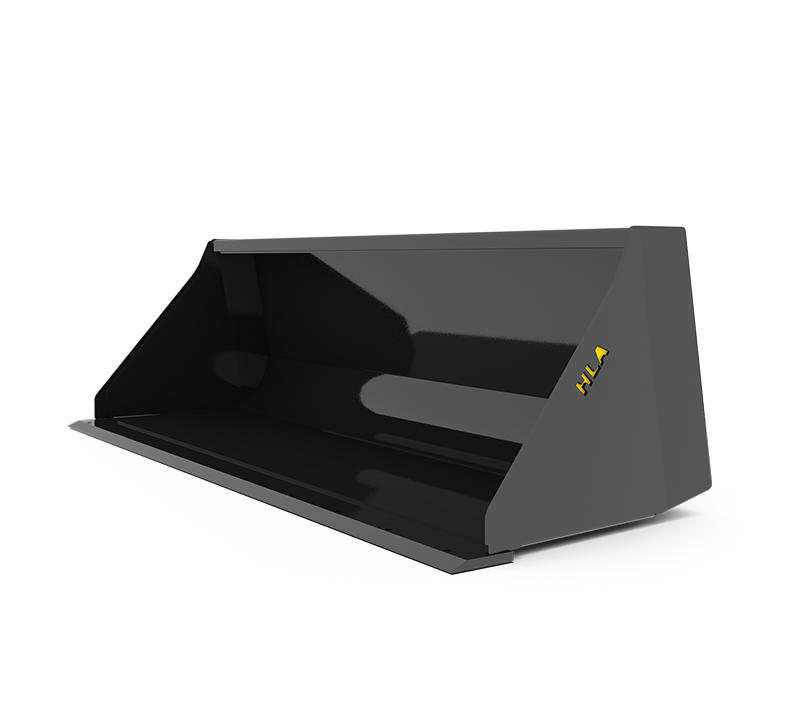

HLA Attachments - 84" Heavy Duty Standard Front-End Loader Bucket [LA-MB84HDBO500]

HLA Attachments MB84HD 84-inch Heavy Duty Standard Front-End Loader Bucket with BO500 mounting is a durable material-handling bucket designed for loaders using a skid-steer-style quick-attach interface. With an 84-inch inside width, approximately 86-inch outside width, and 24.9 cu ft SAE heaped capacity, it provides substantial capacity for loading, carrying, levelling, and cleanout work. Heavy-duty 1/4-inch bucket material, reinforced construction, and a substantial 3/4 x 6-inch bevelled cutting edge make it well suited to demanding loader applications.

Heavy-Duty Bucket Construction

The MB84HD is built with 1/4-inch bucket material and 1/4-inch end plates for strength under regular material-handling loads. Its reinforced top lip, round back, and reinforced end plates add structural support while helping material enter and leave the bucket smoothly. The round-back design supports easy filling and cleanout, while tapered, self-cleaning end plates help reduce material buildup during operation.

A flat top provides the operator with a practical visual level indicator, helping with bucket positioning during loading, carrying, and grading tasks. The bucket measures 30 inches deep and 25 inches high, combining a generous profile with an approximate weight of 700 lb.

Cutting Edge and Optional Wear Components

A 3/4 x 6-inch bevelled cutting edge provides a robust working edge for loading and ground-engaging applications. The bucket is also drilled to accept an optional standard bolt-on cutting edge, allowing the working edge to be adapted or replaced according to the application.

Available optional components include double-bevel bolt-on cutting edges in 3/4 x 6-inch and 3/4 x 8-inch sizes, a 3/4 x 6-inch single-bevel serrated cutting edge, and knock-on ripper teeth with weld-on adapters and flex pins. These items are optional and are not identified as standard components of this bucket configuration.

Key Features

• Heavy-duty standard front-end loader material bucket
• 84-inch inside width and approximately 86-inch outside width
• BO500 skid-steer-style quick-attach mounting configuration
• 1/4-inch bucket material and 1/4-inch end plates
• Reinforced top lip, round back, and end plates
• Round-back profile supports easy filling and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top functions as a visual level indicator
• 3/4 x 6-inch bevelled cutting edge
• Drilled for an optional standard bolt-on cutting edge
• 19.7 cu ft struck capacity
• 24.9 cu ft SAE heaped capacity
• Approximately 700 lb

Compatibility

This bucket is configured with HLA mounting code BO500, denoting a skid-steer-style quick-attach interface. It is intended for loaders equipped with the corresponding HLA BO500 skid-steer-style quick-attach interface. Final fitment depends on the specific loader or carrier, so the loader’s attachment interface and operating capacity should be confirmed before purchase.

Specifications

Optional Components
