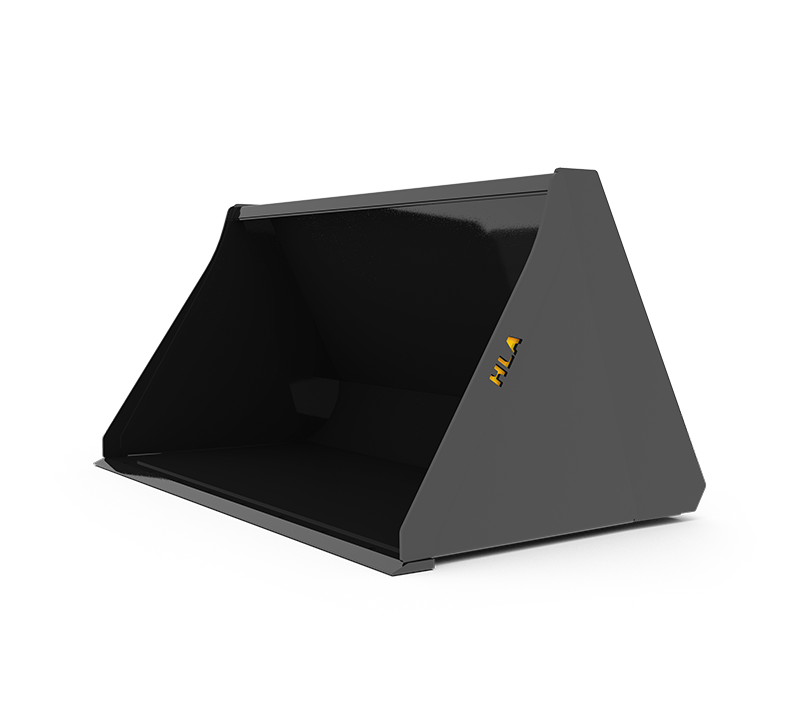

HLA Attachments - 84" Heavy Duty High Volume Skid Steer Bucket - Long Lip [LA-SBHV8440HDBO500]

HLA Attachments 84-inch Heavy Duty High Volume Skid Steer Bucket – Long Lip is a large-capacity, reinforced bucket designed for skid-steer loaders and other machines equipped with a universal skid-steer quick-attach carrier. Supplied in the SBHV8440HDBO500 configuration, it combines an 84-inch inside width, 40.5 cu ft SAE heaped capacity, heavy 1/4-inch construction and a long-lip profile. Reinforcement around the top lip, round back and end plates provides strength, while the bucket’s tapered, self-cleaning ends and rounded interior help promote easy filling and cleanout.

Heavy-Duty High-Volume Construction

The SBHV8440HDBO500 is built with 1/4-inch main bucket material and 1/4-inch end plates. Its reinforced top lip adds rigidity across the bucket’s width, while the reinforced round back and end plates support demanding material-handling work. The round-back design also helps material move smoothly into and out of the bucket.

A 3/4 x 6-inch beveled cutting edge provides a substantial working edge for loading and cleanup. The bucket is also drilled to accept a standard bolt-on cutting edge, providing a replaceable cutting-edge provision when required.

Long-Lip Design and Generous Capacity

With a 38-inch depth and long-lip heavy-duty configuration, this HLA bucket provides substantial carrying volume. It offers a struck capacity of 33.1 cu ft and an SAE heaped capacity of 40.5 cu ft. The 84-inch inside width provides broad coverage, while the flat top can be used as a visual level indicator to help the operator judge bucket position.

Tapered, self-cleaning end plates are designed to reduce material buildup around the sides of the bucket. Together with the reinforced round back, this construction supports easier filling and cleaner discharge.

Key Features

• Heavy-duty, high-volume skid-steer bucket with a long-lip configuration
• 84-inch inside width
• 33.1 cu ft struck capacity
• 40.5 cu ft SAE heaped capacity
• 1/4-inch main bucket material
• 1/4-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Reinforced top lip for added rigidity
• Reinforced round back and end plates for strength, easy filling and cleanout
• Flat top acts as a level indicator
• Tapered, self-cleaning end plates help reduce material buildup
• Drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer quick-attach interface
• Approximately 900 lb

Compatibility

This bucket is supplied with the BO500 universal skid-steer quick-attach interface. It is compatible with skid-steer loaders and other machines equipped with a universal skid-steer quick-attach carrier.

Tractor and Machine Requirements

No PTO connection, PTO horsepower or hydraulic service is required for the bucket. The host machine must be equipped with a compatible universal skid-steer quick-attach carrier.

Specifications
