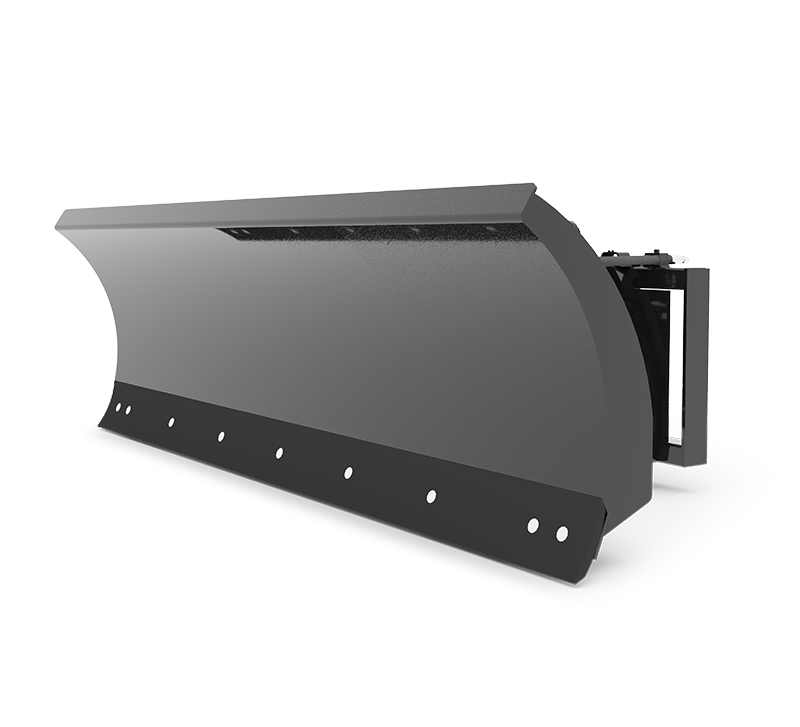

HLA Attachments - 84" Dirt Blade with Power Tilt - Hydraulic Power Tilt Grading Blade [LA-DB84BO500]

HLA Attachments DB84BO500 84-Inch Dirt Blade with Power Tilt is a heavy-duty hydraulic grading blade designed for skid-steer loaders and compatible front-end loaders. Its 84-inch blade, 24-inch-high mouldboard, hydraulic left/right angling, and hydraulic power tilt provide the adjustment needed for grading and side-leveling work. The BO500 universal skid-steer quick-attach mount enables straightforward connection to compatible carriers, while heavy-duty construction, two hydraulic angle cylinders, a reversible cutting edge, and bolt-on skid shoes make this blade a durable, versatile attachment for demanding applications.

Hydraulic Angling and Power Tilt

The DB84BO500 gives the operator hydraulic control over both blade angle and tilt. Two hydraulic angle cylinders allow the blade to angle up to 35 degrees to the left or right, helping position material and adjust the blade’s working direction without relying on a fixed blade position.

Hydraulic power tilt provides up to 5 degrees of oscillation in either direction. This side-to-side adjustment is particularly useful for grading and side leveling where the blade must follow or establish a cross slope. An electric selector valve is included with the power-tilt system.

Heavy-Duty Blade Construction

This model uses an 84-inch-wide blade with a 24-inch-high mouldboard. The heavy-duty design is paired with an approximate blade weight of 1,175 lb. A reversible cutting edge provides two usable working edges, while the bolt-on skid shoes can be removed and replaced independently.

The configured DB84BO500 includes the BO500 universal skid-steer quick-attach mount. Hoses and couplers are supplied, making it ready to connect to an appropriate hydraulic system on a compatible machine.

Key Features

• 84-inch heavy-duty dirt and grading blade
• BO500 universal skid-steer quick-attach mount
• Two hydraulic cylinders for blade angling
• 35-degree hydraulic angle to the left and right
• Hydraulic power tilt and oscillation up to 5 degrees in either direction
• Electric selector valve included with the power-tilt system
• 24-inch-high mouldboard
• Reversible cutting edge
• Bolt-on skid shoes
• Heavy-duty construction
• Supplied with hydraulic hoses and couplers
• Approximate weight of 1,175 lb

Compatibility

The HLA Attachments DB84BO500 is configured for machines using a compatible universal skid-steer quick-attach carrier. It is suitable for:

• Skid-steer loaders equipped with a universal skid-steer quick-attach carrier
• Front-end loaders equipped with a compatible skid-steer-style quick-attach carrier

Confirm the carrier style and the machine’s operating capacity before attaching the blade.

Hydraulic Requirements

Hydraulic operation is required for blade angling and power tilt. The power-tilt system includes an electric selector valve, and the attachment is supplied with hoses and couplers. A specific hydraulic flow or pressure requirement is not published for this model.
