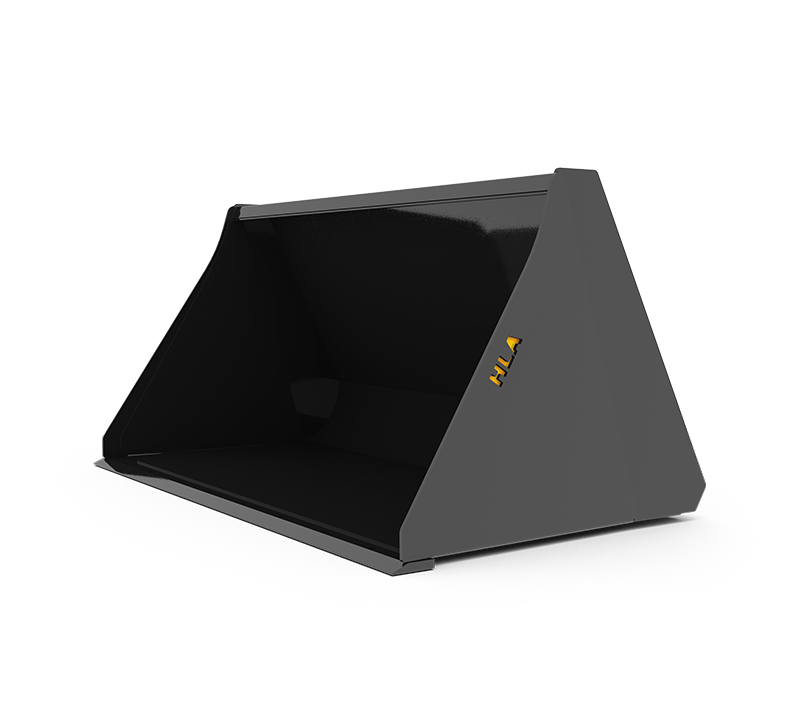

HLA Attachments - 78" Regular Duty High Volume Skid Steer Bucket [LA-SBHV78BO500]

HLA Attachments SBHV78BO500 78-Inch Regular-Duty High-Volume Skid Steer Bucket is designed for efficient handling of high-volume material with a skid-steer-style quick-attach carrier. Its 78-inch inside width, 27.1-cubic-foot struck capacity, and 33.5-cubic-foot SAE heaped capacity provide ample room for loading, carrying, and moving bulk material. Regular-duty construction combines a 3/16-inch bucket body, 1/4-inch end plates, reinforced high-stress areas, and a substantial beveled cutting edge for dependable everyday material-handling performance.

High-Volume Material Handling

The SBHV78 bucket measures 34 inches deep and 31 inches high, providing a practical profile for carrying larger volumes of material. Its 78-inch inside width gives it a calculated outside width of 80 inches, helping operators assess machine coverage, access requirements, and transport space.

A flat top surface serves as a built-in level indicator, giving the operator a clear visual reference when positioning the bucket. This feature can help with bucket alignment and load control without requiring a separate indicator.

Durable Regular-Duty Construction

HLA Attachments builds this bucket with 3/16-inch bucket material and 1/4-inch end plates. The top lip, round back, and end plates are reinforced to support the bucket in routine loading and carrying applications. A 3/4-by-4-inch beveled cutting edge provides a durable working edge for engaging material.

The bucket is also drilled to accept an optional standard bolt-on cutting edge. This allows the working edge to be adapted with a replaceable wear component when required. Tapered, self-cleaning end plates are designed to reduce material buildup along the sides of the bucket, helping material release more cleanly during unloading.

Key Features

• Regular-duty high-volume bucket for skid-steer-style quick-attach carriers
• 78-inch inside width and calculated 80-inch outside width
• 27.1-cubic-foot struck capacity
• 33.5-cubic-foot SAE heaped capacity
• 3/16-inch bucket material for regular-duty construction
• 1/4-inch end plates
• 3/4-by-4-inch beveled cutting edge
• Reinforced top lip for added structural support
• Reinforced round back and end plates
• Flat top serves as a visual level indicator
• Drilled for an optional standard bolt-on cutting edge
• Tapered, self-cleaning end plates help reduce material buildup
• Approximate bucket weight of 650 pounds
• BO500 skid-steer-style quick-attach mounting interface

Compatibility

This configured bucket uses HLA mount code BO500 and is compatible with skid-steer-style quick-attach carriers that accept this mounting interface. Confirm that the carrier, machine capacity, and operating setup are appropriate for the bucket’s approximate 650-pound weight, dimensions, and intended load before use.
