HLA Attachments - 78" Heavy Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB78HDBO500]

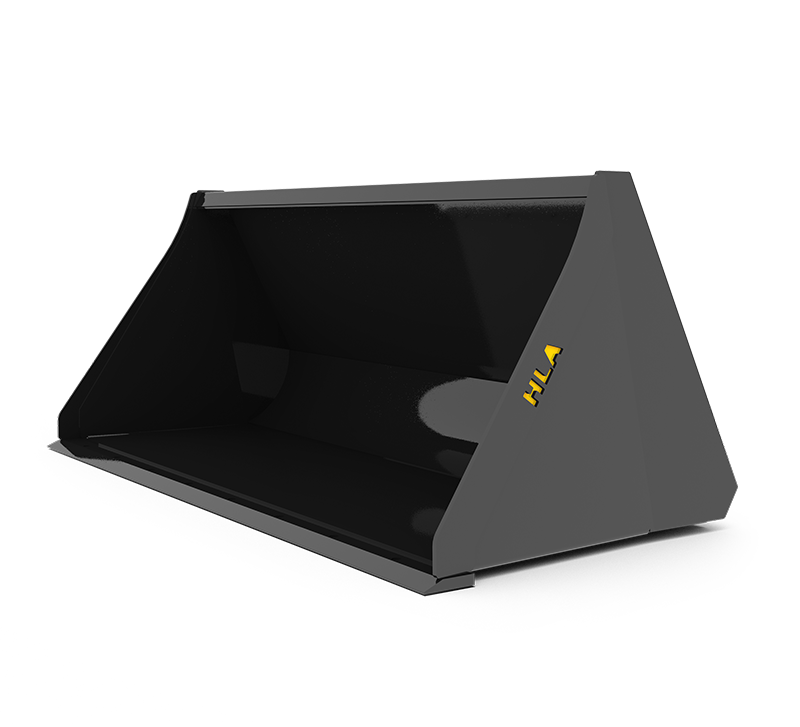

HLA Attachments 78-Inch Heavy Duty Standard Skid Steer Bucket is a rugged material bucket built for demanding loading, carrying, filling, and cleanout applications. This SB78HD bucket is configured with HLA’s BO500 universal skid-steer-style quick-attach mount, making it suitable for machines equipped with the corresponding attachment interface. Its heavy-duty design combines 1/4-inch bucket material, 1/4-inch end plates, a reinforced top lip, and a substantial 3/4 x 6-inch beveled cutting edge. With a 17.8-cubic-foot struck capacity and 22.5-cubic-foot SAE heaped capacity, it provides practical volume for general-purpose material handling.

Heavy-Duty Bucket Construction

The SB78HDBO500 is designed around a strong, reinforced bucket structure. Both the main bucket material and end plates are 1/4 inch thick, helping the bucket withstand demanding day-to-day work. Its reinforced round back and reinforced end plates add strength while also promoting easier filling and cleanout.

A 3/4 x 6-inch beveled cutting edge provides a durable leading edge for engaging material. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be equipped accordingly when required.

Designed for Efficient Material Handling

With a nominal inside width of 78 inches and a calculated outside width of 80 inches, this bucket offers broad coverage while loading and moving material. Its 30-inch depth and 26-inch height contribute to a struck capacity of 17.8 cubic feet and an SAE heaped capacity of 22.5 cubic feet.

The end plates use a tapered, self-cleaning design to reduce material buildup during operation. The flat top of the bucket also serves as a convenient level indicator, helping the operator judge bucket position from the machine.

Key Features

• Heavy-duty standard skid-steer material bucket
• 78-inch nominal inside width
• 80-inch calculated outside width
• 1/4-inch main bucket material
• 1/4-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Reinforced top lip for added structural strength
• Reinforced round back and end plates
• Round-back design supports easy filling and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat bucket top functions as a level indicator
• Drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer-style quick-attach mount
• Approximately 675 lb

Capacity and Dimensions

The HLA 78-inch Heavy Duty Standard Skid Steer Bucket balances substantial material capacity with a reinforced construction. Its level struck capacity is 17.8 cubic feet, while the SAE heaped capacity is 22.5 cubic feet. These capacities make it a practical attachment for loading, carrying, and relocating compatible materials with an appropriately equipped skid steer or loader.

Compatibility

This bucket is supplied with HLA mount code BO500, a universal skid-steer-style quick-attach mount. Confirm that the carrier is equipped with a compatible universal skid-steer-style quick-attach interface before purchase or installation.

Specifications
