HLA Attachments

HLA Attachments - 78" Extra High Volume Front-End Loader Bucket - Extra High Volume Loader Bucket [LA-MBHVX78BO500]

SKU LA-MBHVX78BO500
Starting at $2,33000
Starting at $2,33000

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

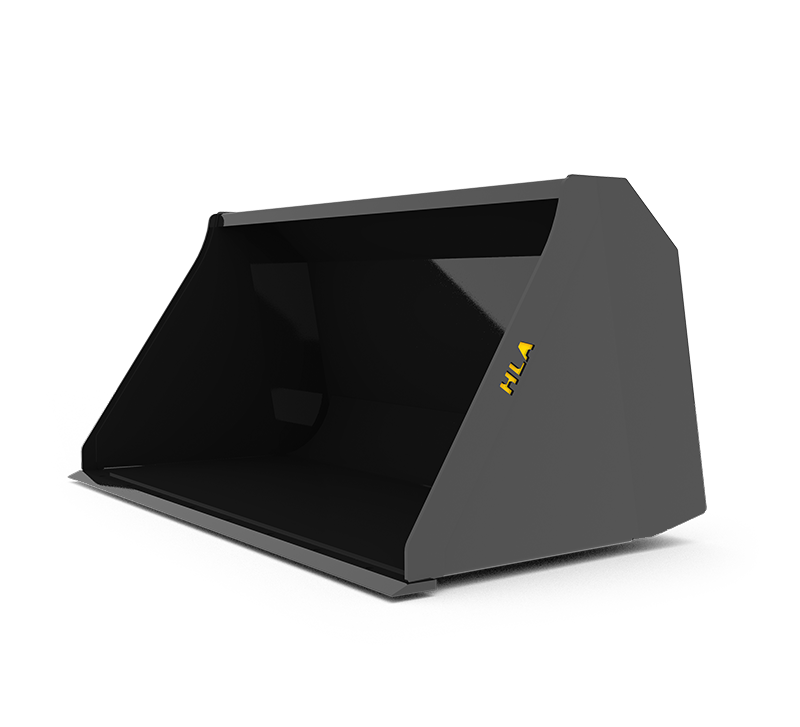

HLA Attachments MBHVX78BO500 78-Inch Extra High Volume Front-End Loader Bucket combines a high-capacity bucket profile with regular-duty construction and a universal skid-steer-style quick-attach mount. Its 36.5 cu ft struck capacity and 44.5 cu ft SAE heaped capacity make it a practical choice for high-volume material handling, while the reinforced round back, tapered end plates, and flat top are designed to support efficient filling, cleanout, and bucket positioning. The BO500 mounting configuration allows quick attachment to loader models equipped with a compatible skid-steer-style carrier.

High-Volume Bucket Design

The MBHVX78 provides a 78-inch inside width and an approximate 80-inch outside width. Its extra-high-volume shape offers substantial carrying capacity in a bucket measuring 39 inches deep and 34 inches high. The reinforced round back and end plates add strength while promoting easier filling and cleanout.

Tapered, self-cleaning end plates help reduce material buildup during operation. A reinforced top lip supports the bucket structure, while the flat top doubles as a convenient visual level indicator to help the operator judge bucket angle from the loader seat.

Regular-Duty Construction

This HLA Attachments bucket is built with 3/16-inch bucket material and 1/4-inch end plates. The working edge uses a substantial 3/4 x 4-inch beveled cutting edge for dependable material engagement. The bucket is also drilled to accept a standard bolt-on cutting edge, providing a ready attachment point when a compatible replaceable edge is required.

The approximate listed weight is 725 lb for the base bucket. HLA does not publish a separate assembled weight specifically for the BO500-mounted version, so loader capacity should be evaluated with the complete attachment configuration and intended load in mind.

Key Features

  • 78-inch inside width for broad, high-volume material handling
  • 36.5 cu ft struck capacity
  • 44.5 cu ft SAE heaped capacity
  • Regular-duty bucket construction
  • 3/16-inch bucket material
  • 1/4-inch end plates
  • 3/4 x 4-inch beveled cutting edge
  • Drilled for a standard bolt-on cutting edge
  • Reinforced top lip for added structural support
  • Reinforced round back and end plates for strength, filling, and cleanout
  • Tapered, self-cleaning end plates help reduce material buildup
  • Flat top serves as a visual level indicator
  • BO500 universal skid-steer quick-attach mounting configuration

Compatibility

The MBHVX78BO500 is configured with HLA Attachments’ BO500 universal skid-steer-style quick attach. It is intended for loader models equipped with a compatible skid-steer-style quick-attach carrier. Confirm the carrier interface, loader lift capacity, and operating limits before installation and use.

Specifications

Brand HLA Attachments
Model MBHVX78BO500
Product type Extra-high-volume front-end loader material bucket
Model configuration MBHVX78 base bucket with BO500 mounting configuration
Duty class Regular duty
Inside width 78 in
Approximate outside width 80 in
Depth 39 in
Height 34 in
Struck capacity 36.5 cu ft
SAE heaped capacity 44.5 cu ft
Approximate weight 725 lb for the base bucket
Bucket material thickness 3/16 in
End-plate thickness 1/4 in
Cutting edge 3/4 x 4 in beveled edge
Mount type BO500 universal skid-steer-style quick attach
Product code LA-MBHVX78BO500
