HLA Attachments - 78" 4-in-1 Front-End Loader Bucket [LA-MBFNO78BO500]

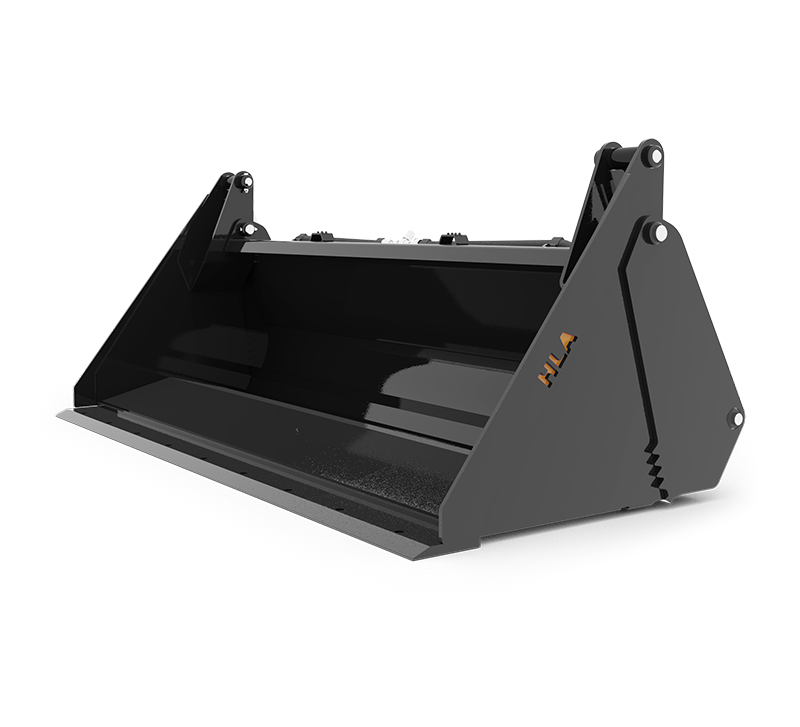

HLA Attachments MBFNO78BO500 78-Inch 4-in-1 Front-End Loader Bucket is a hydraulic, multi-purpose loader bucket configured with HLA’s BO500 universal skid-steer-style quick-attach mount. Designed for front-end loaders with a compatible carrier, this 4-in-1 bucket combines a substantial 78-inch inside width with reinforced construction and included hydraulic cylinders. Its 18.5-cubic-foot struck capacity and 23.8-cubic-foot SAE heaped capacity make it a versatile attachment for material handling and general loader work where a hydraulic 4-in-1 configuration is preferred.

Heavy-Duty Bucket Construction

The MBFNO78 uses 1/4-inch material for the main bucket body, with 3/8-inch end plates and a 3/8-inch clam-floor bottom. These material thicknesses support demanding front-end-loader applications while providing reinforcement in key working areas of the bucket.

The bucket measures 33 inches deep and 26 inches high. Its 78-inch inside working width corresponds to a calculated outside width of 80 inches, providing broad material coverage while allowing overall attachment width to be considered when assessing loader fit and operating space.

Hydraulic 4-in-1 Configuration

This bucket is supplied with 2-1/2 x 8-inch hydraulic cylinders for its 4-in-1 configuration. It is also drilled for a standard bolt-on cutting edge, allowing a suitable cutting edge to be installed without requiring the bucket to be newly drilled.

HLA lists an optional HK90 90-inch hose kit with flat-faced couplers and an optional SHMK spring hose-mount kit. These optional accessories are not identified as standard inclusions and should be selected separately when required for the loader installation.

Key Features

• Hydraulic 4-in-1 front-end-loader bucket
• 78-inch inside width
• 80-inch calculated outside width
• BO500 universal skid-steer-style quick-attach mounting interface
• 18.5-cubic-foot struck capacity
• 23.8-cubic-foot SAE heaped capacity
• 1/4-inch main bucket material
• 3/8-inch end plates
• 3/8-inch clam-floor bottom
• Includes 2-1/2 x 8-inch hydraulic cylinders
• Drilled for a standard bolt-on cutting edge
• Approximate attachment weight of 1,158 pounds

Loader Compatibility

The MBFNO78BO500 is configured for front-end loaders equipped with a compatible universal skid-steer-style quick-attach carrier. The BO500 mounting code identifies HLA’s universal skid-steer-style quick-attach interface.

Because carrier geometry and loader configurations can vary, loader-specific fitment should be confirmed against HLA’s mounting-code tables before purchase. Hydraulic connection components should also be selected to suit the loader installation. The optional HK90 hose kit includes 90-inch hoses with flat-faced couplers, while the optional SHMK kit provides a spring-style hose mount.
