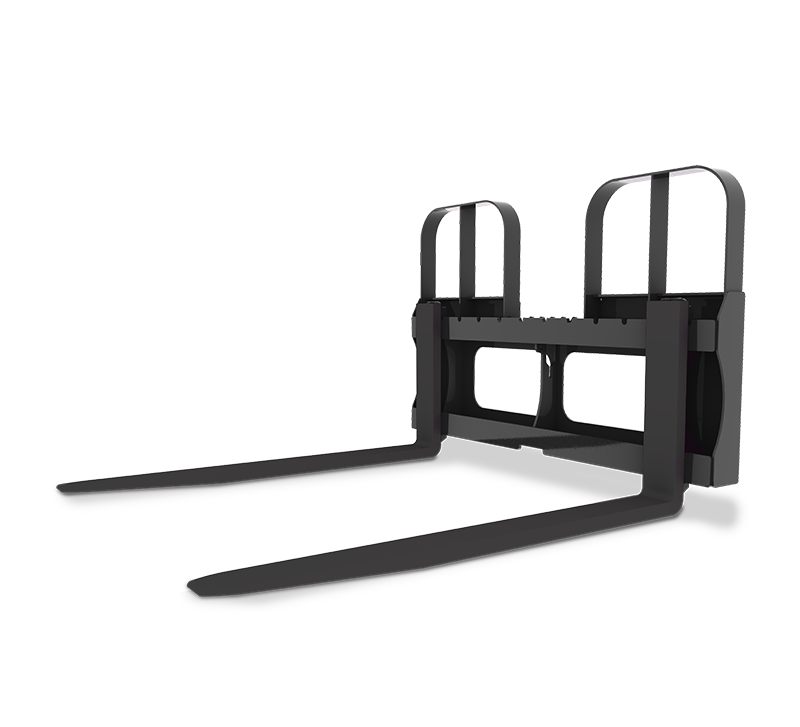

HLA Attachments - 7500 lbs Power Tine Pallet Fork 54" - Material Handling Fork Attachment [LA-HDN7554BO500]

HLA Attachments HDN7554BO500 7,500 lb Power Tine Pallet Fork combines heavy-duty material-handling capacity with hydraulically adjustable 54-inch tines and a BO500 universal skid-steer quick-attach interface. Designed for applications where tine spacing must be changed frequently, its synchronized hydraulic system moves both tines inward and outward equally. This allows the operator to adapt the fork position to different loads and use the tines for clamping applications, including handling nursery root balls.

Hydraulically Adjustable Power Tines

Unlike a conventional pallet fork that requires manual tine positioning, the HDN7554BO500 uses hydraulic power to slide the tines. Both tines move inward or outward equally, helping maintain balanced spacing as their position changes. Hydraulic adjustment makes the attachment especially useful when working with materials of varying widths or moving between pallet handling and suitable clamping tasks.

The attachment requires a hydraulic service to operate the sliding-tine mechanism. HLA Attachments offers an optional HK90 hose kit with 90-inch hoses and flat-faced couplers. An optional SHMK spring hose mount kit is also available to support hydraulic hose routing. Hydraulic flow and pressure requirements are not published.

Heavy-Duty Material Handling

The Power Tine Pallet Fork has a rated capacity of 7,500 lb and is equipped with 54-inch fork tines. This configuration provides a robust material-handling solution for compatible skid-steer quick-attach carriers. In addition to conventional fork work, the powered inward and outward tine movement supports clamping applications such as handling nursery root balls.

Model HDN7554BO500 consists of the HDN7554 base fork configuration fitted with HLA’s BO500 mounting interface. HLA publishes an approximate weight of 840 lb for the HDN7554 base-model fork. A separate complete weight for the BO500-mounted configuration is not published.

Key Features

• 7,500 lb rated capacity
• 54-inch fork tines
• Hydraulic sliding-tine adjustment
• Both tines move inward and outward equally under hydraulic power
• Suitable for pallet handling and compatible clamping applications
• Can be used for handling nursery root balls
• BO500 universal skid-steer quick-attach mounting configuration
• Optional 90-inch hydraulic hose kit with flat-faced couplers
• Optional spring hose mount kit available

Compatibility

The HDN7554BO500 is configured with HLA Attachments’ BO500 universal skid-steer quick-attach interface. It is intended for universal skid-steer quick-attach carriers compatible with this BO500 mounting configuration.

Carrier and Hydraulic Requirements

A compatible universal skid-steer quick-attach carrier is required. The carrier must also provide hydraulic service to operate the powered sliding tines. HLA does not publish a required hydraulic flow or pressure for this model. If hydraulic connections are needed, the optional HK90 kit includes 90-inch hoses with flat-faced couplers; the optional SHMK spring hose mount kit can be used for hose support.

Specifications
