HLA Attachments - 7500 lbs Power Tilting Pallet Fork 54" - Material Handling Fork Attachment [LA-HDO7554BO500]

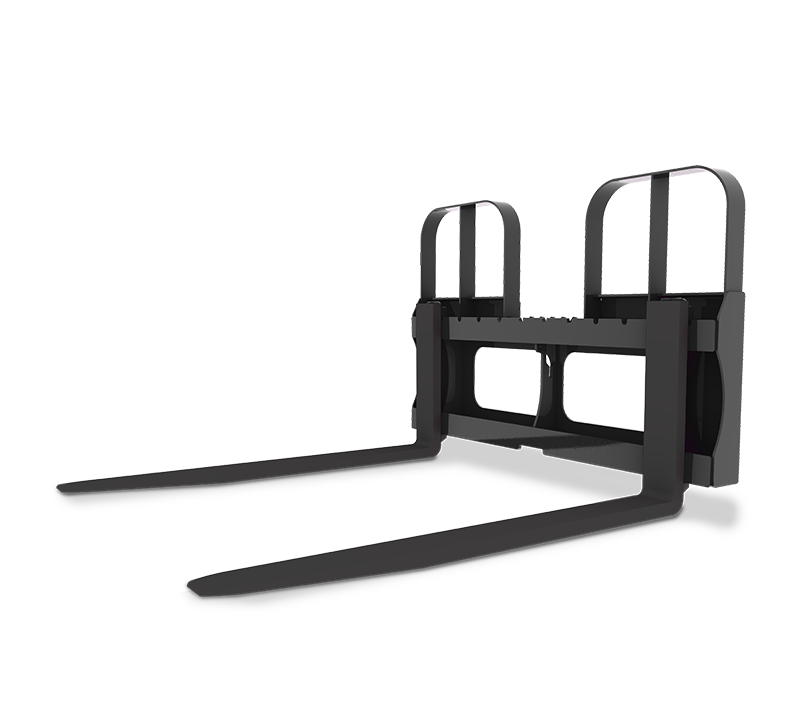

HLA Attachments HDO7554BO500 Power-Tilting Pallet Fork is a heavy-duty material-handling attachment designed to level and position loads on uneven job sites. This configuration combines a 7,500 lb rated capacity, 54-inch adjustable pallet-fork tines, and hydraulic cylinder-powered rotation with an HLA BO500 quick-attach loader interface. With up to 45 degrees of tilt in either direction, operators can adjust the fork angle to accommodate sloped terrain, improve load positioning, and handle pallets or other fork-supported materials more effectively.

Hydraulic Power Tilt for Uneven Terrain

The HDO7554 uses a hydraulic cylinder to rotate the pallet-fork assembly smoothly. Its leveling range extends to 45 degrees in either direction, providing substantial adjustment when working across uneven surfaces or when a load needs to be repositioned without moving the carrier.

Hydraulic operation allows the fork angle to be controlled from the carrier rather than adjusted manually. A hydraulic connection is required to operate the power-tilt cylinder. Manufacturer flow and pressure requirements are not specified.

Heavy-Duty Material Handling

This HDO7554 variant has a manufacturer-rated capacity of 7,500 lb and is equipped with 54-inch tines. The longer tines provide support for compatible palletized loads and other materials suited to fork handling. The tines are adjustable, allowing their spacing to be changed for different pallet openings and load dimensions.

The manufacturer-listed attachment weight is 970 lb. This weight should be considered when confirming the suitability and operating limits of the intended loader and carrier combination.

Key Features

• 7,500 lb rated capacity configuration
• 54-inch adjustable pallet-fork tines
• Hydraulic cylinder-powered rotation for smooth operation
• Levels up to 45 degrees in either direction
• Designed for leveling loads on uneven job sites
• BO500 quick-attach loader interface
• 970 lb manufacturer-listed attachment weight
• Heavy-duty power-tilting material-handling design

BO500 Quick-Attach Configuration

The HDO7554BO500 is supplied in the BO500 quick-attach configuration. BO500 is an HLA quick-attach loader interface code used across multiple loader application listings. Because the same interface code appears in several applications, fitment should be confirmed for the exact loader and carrier before ordering or installation.

Compatibility

Confirmed New Holland loader applications associated with the HLA BO500 interface include:

• 16LA
• 17LA
• 18LA
• 32LA
• 33LA
• 46LB
• 52LA
• 52LB
• 52LC
• 240TL
• 250TL with skid-steer carrier
• 260TL with skid-steer carrier
• 270TL with skid-steer carrier

BO500 is also listed by HLA for multiple loader applications beyond those named above. Confirm the loader interface, carrier configuration, hydraulic connections, and overall fitment for the specific machine.

Carrier and Hydraulic Requirements

A compatible loader equipped for the HLA BO500 quick-attach interface is required. The carrier must also provide a hydraulic connection to operate the attachment’s power-tilt cylinder. Hydraulic flow and pressure requirements are not specified by the manufacturer for this configuration.
