HLA Attachments - 72" Landscape Stone Picker w/ Power Reel - Stone and Debris Handling [LA-SFRL72BO500]

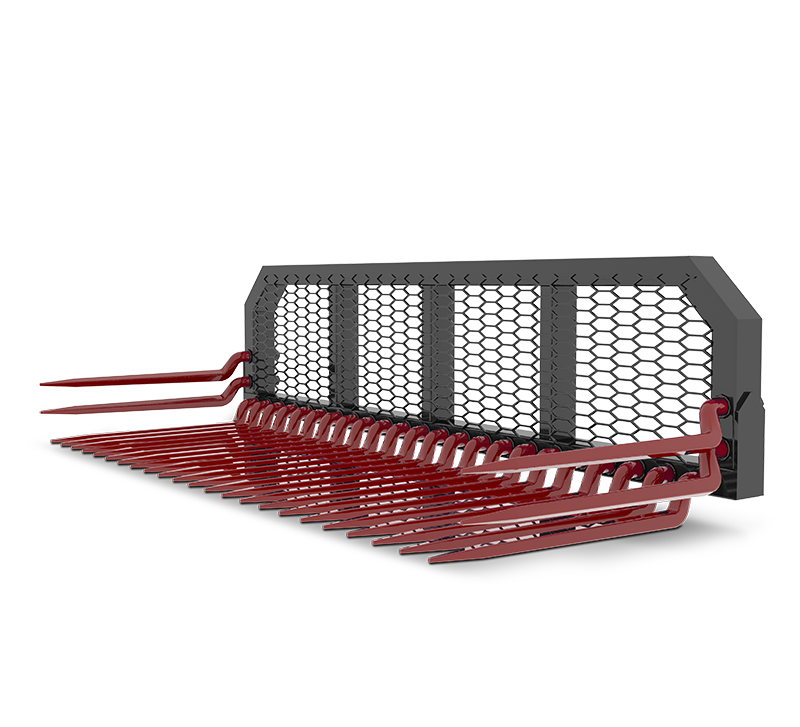

HLA Attachments SFRL72BO500 72-Inch Landscape Stone Picker with Power Reel is a loader-mounted stone and debris handling attachment designed to collect windrowed stones and loose stones while preparing soil for seedbeds. Its hydraulically powered reel helps direct material into the picker, while closely spaced, heavy-duty tines retain stones and debris as loose soil passes between them. This configuration combines the 72-inch SFRL72 stone picker with HLA’s BO500 quick-attach carrier code, making it suitable for landscaping, soil preparation, property maintenance, and material-cleanup applications when matched to a compatible loader.

Efficient Stone and Debris Collection

The SFRL72 is built for cleaning stones and loose debris from prepared ground. Its 72-inch working width covers a practical area with each pass, whether collecting previously windrowed material or picking loose stones during seedbed preparation. The hydraulic power reel assists with feeding material into the attachment for more controlled collection.

Across the picker, 3/4-inch-diameter tines are positioned at 1-3/4-inch spacing. This arrangement is designed to capture stones and debris while allowing finer soil to move through the tine area. The points are 1/2 inch thick and manufactured from 400 Brinell high-strength steel for durability in demanding ground-engagement work.

Key Features

• 72-inch landscape stone picker for stone, debris, and seedbed-preparation work
• Hydraulically powered reel assists in collecting and loading material
• Designed to collect both windrowed stones and loose stones
• 3/4-inch-diameter tines provide a robust collection surface
• 1-3/4-inch spacing between tines allows loose soil to pass through
• 1/2-inch-thick points for demanding stone-handling applications
• Points manufactured from 400 Brinell high-strength steel
• Configured with HLA’s BO500 quick-attach carrier/mounting code
• Optional hydraulic hose, hose-mount, and electrical diverter-control kits are available

BO500 Carrier Compatibility

This attachment is supplied in the SFRL72BO500 configuration, which pairs the SFRL72 base attachment with HLA’s BO500 quick-attach carrier code. HLA uses BO500 for multiple loader interfaces, including selected New Holland, Terex, Kioti, and Woods loaders.

The BO500 code alone does not confirm fitment to every loader from those manufacturers. Compatibility must be verified against the exact loader make and model before purchase. The host loader must also be suitable for the attachment’s size and weight.

Available Options

Optional equipment is available to support hydraulic connection and control installation. The HK90 option is a 90-inch hose kit supplied with flat-faced couplers. The SHMK spring hose mount kit provides an optional hose-management solution. For applications requiring a diverter control, the WKDV1 package is a complete single-diverter wire kit with a two-way switch.

These items are listed as optional equipment and should be selected according to the loader and installation requirements.

Specifications

Weight note: The approximate 1,200 lb specification applies to the SFRL72 base model. A separate assembled weight for the BO500-mounted configuration is not published.
