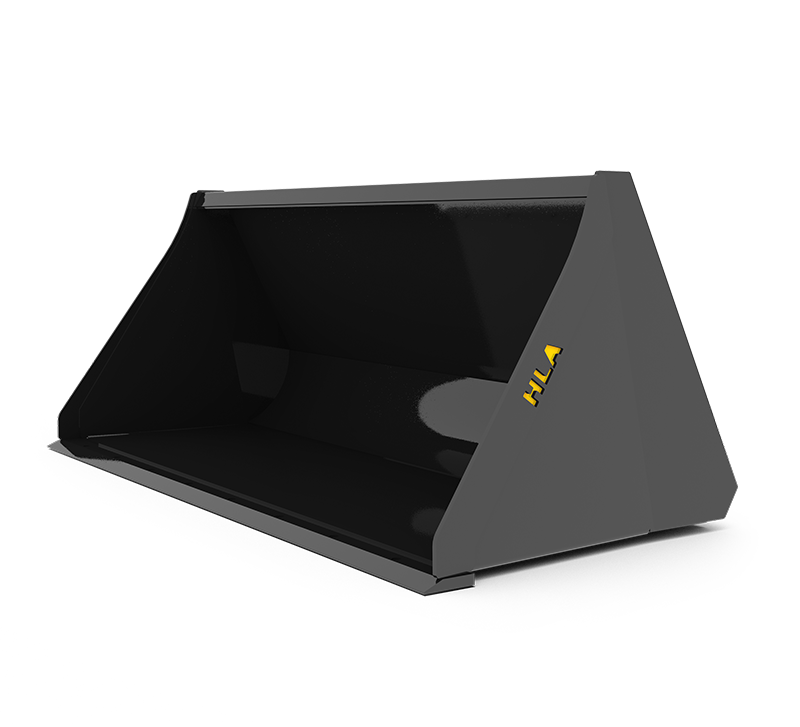

HLA Attachments - 72" Heavy Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB72HDBO500]

HLA Attachments SB72HDBO500 72-Inch Heavy Duty Standard Skid Steer Bucket combines durable construction, practical capacity, and a BO500 universal skid-steer quick-attach configuration for efficient material handling. Designed for demanding loading, carrying, grading, and cleanout work, this heavy-duty bucket features 1/4-inch bucket material, 1/4-inch end plates, and a substantial 3/4 x 6-inch beveled cutting edge. Its reinforced round back and tapered, self-cleaning end plates help the bucket fill smoothly while reducing material buildup, making it a practical attachment for regular use with compatible skid-steer quick-attach carriers.

Heavy-Duty Construction

The SB72HDBO500 is based on HLA Attachments’ SB72HD heavy-duty bucket and is configured with the BO500 mounting system. The bucket’s 1/4-inch shell material and matching 1/4-inch end plates provide strength for demanding material-handling applications. A reinforced top lip, reinforced round back, and reinforced end plates support the bucket structure where durability matters most.

At the working edge, the bucket uses a 3/4 x 6-inch beveled cutting edge for dependable engagement with the material being handled. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be equipped accordingly when required.

Efficient Filling and Cleanout

The reinforced round-back profile is designed for strength while promoting easy filling and cleanout. Tapered, self-cleaning end plates further reduce material buildup inside the bucket, helping operators spend more time working and less time clearing retained material.

A flat top provides a convenient visual level indicator from the operator’s position. This makes it easier to judge bucket angle during loading, carrying, grading, and other tasks where maintaining a consistent position is important.

Capacity and Dimensions

With a 72-inch inside width and an outside width of approximately 74 inches, this bucket provides broad material coverage without sacrificing its heavy-duty design. It offers a struck or level capacity of 16.5 cubic feet and an SAE heaped capacity of 20.8 cubic feet. The bucket measures 30 inches deep and 26 inches high, with an approximate weight of 625 pounds.

Key Features

• Heavy-duty standard skid-steer bucket from HLA Attachments
• 72-inch inside width with an approximately 74-inch outside width
• BO500 universal skid-steer quick-attach mounting configuration
• 1/4-inch bucket material for heavy-duty use
• 1/4-inch end plates for added structural strength
• 3/4 x 6-inch beveled cutting edge
• Drilled for installation of a standard bolt-on cutting edge
• Reinforced top lip, round back, and end plates
• Round-back design supports easy filling and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top functions as a visual level indicator
• 16.5-cubic-foot struck capacity
• 20.8-cubic-foot SAE heaped capacity

Compatibility

The HLA Attachments SB72HDBO500 is fitted with the BO500 universal skid-steer quick-attach configuration. It is intended for use with compatible universal skid-steer quick-attach carriers. Confirm the carrier’s mounting interface and operating capacity before installation.
