HLA Attachments - 72" Debris Grapple Fork - 12 Tines - Hydraulic Material Handling [LA-SDB72BO500]

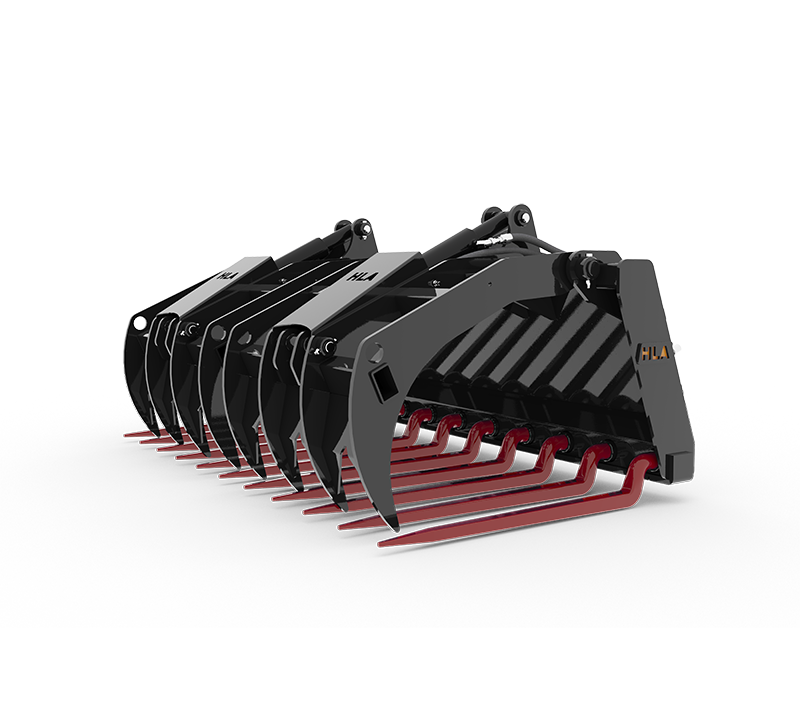

HLA Attachments SDB72BO500 72-Inch Debris Grapple Fork is a hydraulic material-handling attachment designed to collect brush and debris while allowing loose dirt to pass between its tines. Built around the SDB72 base attachment and configured with the BO500 universal skid-steer quick-attach mount, it combines 12 replaceable tempered tines with two independent hydraulic grapples. This configuration provides a practical solution for gathering, holding, moving and unloading bulky debris with compatible skid-steer loaders and loader carriers.

Built for Brush and Debris Handling

The SDB72BO500 has a 72-inch working width and 12 tines arranged on 6-inch centers. This open tine layout is designed to pick up brush and debris while leaving dirt behind, reducing the amount of unwanted soil moved with the load.

Each tine is a 39-inch Conus II cranked Kverneland tine with 32 inches of usable length. The tempered tines are replaceable, helping support ongoing maintenance and serviceability. They require no support bar at the points, which reduces places where branches and other material can lodge or jam during unloading.

Two Independent Hydraulic Grapples

Two independent hydraulic grapples secure material against the fork during handling. The grapple assembly is operated by two 2.5 x 8-inch hydraulic cylinders. The cylinders are completely protected from debris, helping shield these important hydraulic components while the attachment is working in brush and loose material.

With an approximate attachment weight of 1,025 pounds, this grapple fork is intended for suitably rated carriers equipped with the corresponding quick-attach interface. Carrier lift capacity, operating capacity and hydraulic suitability should be considered before use.

Key Features

• 72-inch hydraulic debris grapple fork
• Designed to collect brush and debris while leaving dirt behind
• 12 replaceable, tempered tines
• Conus II cranked Kverneland tine construction
• 39-inch overall tine length with 32 inches of usable length
• 6-inch tine center spacing
• Two independent hydraulic grapples
• Two 2.5 x 8-inch hydraulic cylinders
• Hydraulic cylinders are completely protected from debris
• No support bar at the tine points, reducing lodging and jamming during unloading
• BO500 universal skid-steer quick-attach mount
• Approximate attachment weight of 1,025 pounds

Compatibility

The HLA Attachments SDB72BO500 is configured with the BO500 universal skid-steer quick-attach mount. It is compatible with skid-steer loaders and loader carriers equipped with the universal skid-steer quick-attach interface represented by HLA mount code BO500.

Before installation, confirm that the carrier has the correct universal skid-steer quick-attach interface and is appropriately rated for the attachment’s approximate 1,025-pound weight and the loads being handled.
