HLA Attachments - 70" Stone Fork Retainer Tine Regular Duty - Stone and Debris Handling [LA-SFR70BO500]

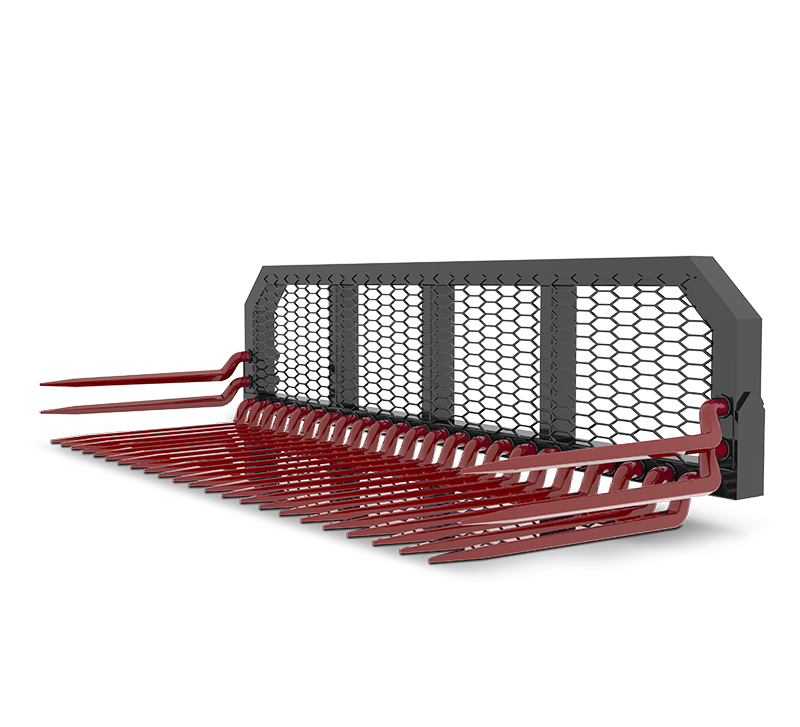

HLA Attachments SFR70BO500 70-Inch Regular-Duty Stone Fork is built for efficient stone, debris, and material handling with compatible skid-steer-style quick-attach carriers. Its closely spaced retainer-style tines support rocks and larger debris while allowing soil and finer material to sift through, helping reduce the amount of unwanted material carried with each load. With a 5,500 lb rated capacity, durable high-strength steel tine points, and a 70-inch nominal working width, this stone fork is a practical choice for landscaping, site cleanup, and general material-handling work.

Efficient Stone and Debris Separation

The SFR70 uses 1-1/4-inch-diameter retainer-style tines with 2-1/2-inch spacing between the tines. This layout is designed to retain stones and debris while letting loose soil and fine material pass through. It can help streamline jobs where usable soil needs to be separated from rocks, roots, and other larger materials.

At 70 inches wide, the attachment provides useful coverage for cleanup and sorting applications. Its regular-duty construction balances material-handling capability with an approximate attachment weight of 690 lb.

High-Strength Tine Points

Each tine features a 5/8-inch-thick point made from 400 Brinell high-strength steel. This wear-resistant material supports dependable performance when working in abrasive stone and debris-handling conditions. The retainer-style tine configuration helps keep collected material on the fork during normal handling and repositioning.

5,500 lb Rated Capacity

The HLA SFR70 is rated for a 5,500 lb capacity. Its overall dimensions are 23 inches high and 40 inches deep, providing a substantial working profile for gathering, carrying, and sorting material. Operators must remain within the operating capacity and limitations of both the attachment and the carrier being used.

Key Features

• Regular-duty stone fork for landscaping and material handling
• 70-inch nominal working width
• 5,500 lb rated capacity
• 1-1/4-inch-diameter retainer-style tines
• 2-1/2-inch spacing between tines
• Allows soil and fine material to sift through while retaining rocks and debris
• 5/8-inch-thick tine points
• Tine points manufactured from 400 Brinell high-strength steel
• Approximately 690 lb attachment weight
• BO500 skid-steer-style quick-attach mounting configuration

Common Applications

This regular-duty stone fork is suited to jobs involving the collection and separation of rocks, debris, and coarse material. It can be used for landscaping cleanup, preparing work areas, sorting material, and removing stones while leaving finer soil behind. The open tine arrangement is especially useful when a conventional bucket would retain too much dirt along with the target material.

Compatibility

The SFR70BO500 is equipped with HLA mounting code BO500, a quick-attach interface for skid-steer-style applications. HLA lists BO500 for numerous compatible quick-attach loaders; however, fit must be confirmed for the specific loader model before purchase or installation. Carrier operating capacity must also be appropriate for the attachment weight, rated load, and intended application.

Specifications
