HLA Attachments - 66" Regular Duty Standard Skid Steer Bucket and GRS60 Grapple - Universal Skid Steer Bucket [LA-SB66GRS60BO500]

SKU LA-SB66GRS60BO500

Starting at: Starting at $3,900.⁰⁰

Starting at: Starting at $3,900.⁰⁰

Add your items to the Cart to begin to build and price your package.

When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

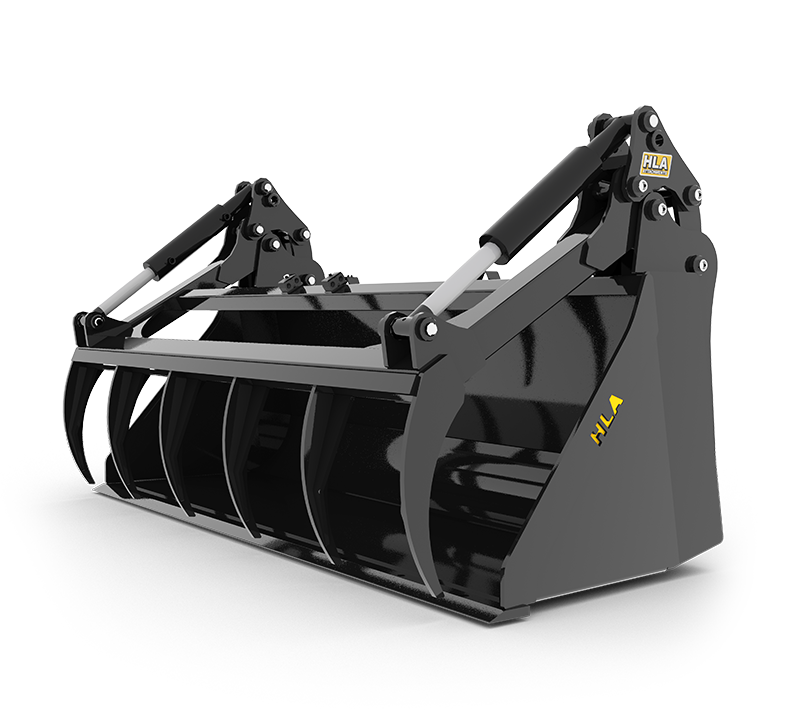

HLA Attachments 66-inch Regular-Duty Standard Skid-Steer Bucket with GRS60 Grapple combines the SB66 material bucket with a hydraulic grapple for controlled material handling. Supplied in the BO500 universal skid-steer attachment configuration, this grapple bucket is designed for skid steers with limited clearance around the grapple arms. Its 66-inch inside width, 45-inch grapple opening and twin 2-1/2-inch by 8-inch hydraulic cylinders provide a practical combination for loading, carrying and securing material. Reinforced construction, a bevelled cutting edge and a self-cleaning bucket profile make it a versatile attachment for regular-duty work.

Bucket and Grapple Design

The SB66GRS60 pairs a regular-duty standard material bucket with HLA Attachments’ GRS60 grapple. The grapple opens to 45 inches, allowing it to close over and retain material inside the bucket. Its compact arm arrangement is specifically designed for skid steers where grapple-arm clearance may be limited.

The bucket has a 66-inch inside width and measures approximately 68 inches across the outside. It provides a struck capacity of 15.0 cubic feet and an SAE heaped capacity of 19.0 cubic feet. With a 28-inch depth and 26-inch height, it offers useful capacity while maintaining the dimensions of a regular-duty skid-steer bucket.

Durable Regular-Duty Construction

The bucket shell is manufactured from 3/16-inch material, while the end plates are 1/4 inch thick. A 3/4-inch by 4-inch bevelled cutting edge supports loading and bucket-edge durability. The cutting edge is also drilled to accept an optional standard bolt-on cutting edge.

Reinforcement across the top lip, round back and end plates helps strengthen key areas of the bucket. Tapered end plates promote self-cleaning, reducing the tendency for material to remain lodged along the bucket sides. The flat top can also be used as a visual level indicator, helping the operator judge bucket position from the skid-steer cab.

Key Features

66-inch regular-duty SB66 standard material bucket with GRS60 hydraulic grapple
BO500 universal skid-steer quick-attach configuration
Designed for skid steers with limited grapple-arm clearance
45-inch grapple opening for controlled material retention
2-1/2-inch by 8-inch hydraulic cylinders
15.0-cubic-foot struck capacity and 19.0-cubic-foot SAE heaped capacity
3/16-inch bucket shell with 1/4-inch end plates
3/4-inch by 4-inch bevelled cutting edge
Reinforced top lip, round back and end plates
Tapered, self-cleaning end plates
Flat bucket top serves as a visual level indicator
Drilled for an optional standard bolt-on cutting edge

Compatibility

This model uses the BO500 universal skid-steer quick-attach configuration and is intended for universal skid-steer quick-attach carriers. Its grapple design is suitable for skid steers with limited clearance for grapple arms.

Specifications

Brand	HLA Attachments
Model	SB66GRS60 with BO500 universal skid-steer attachment configuration
Manufacturer part number	SB66GRS60
Product type	Regular-duty standard skid-steer grapple bucket
Attachment interface	Universal skid-steer quick attach
Nominal bucket width	66 in.
Inside width	66 in.
Approximate outside width	68 in.
Bucket depth	28 in.
Bucket height	26 in.
Struck capacity	15.0 cu. ft.
SAE heaped capacity	19.0 cu. ft.
Grapple opening	45 in.
Hydraulic cylinder size	2-1/2 in. x 8 in.
Bucket shell thickness	3/16 in.
End-plate thickness	1/4 in.
Bevelled cutting edge	3/4 in. x 4 in.
Combined bucket-and-grapple weight	Approximately 790 lb
Base SB66 bucket weight	Approximately 480 lb
