HLA Attachments - 66" Low Profile Skid Steer Bucket and GRS60 Grapple - Low-Profile Skid Steer Attachment [LA-SBLP66GRS60BO500]

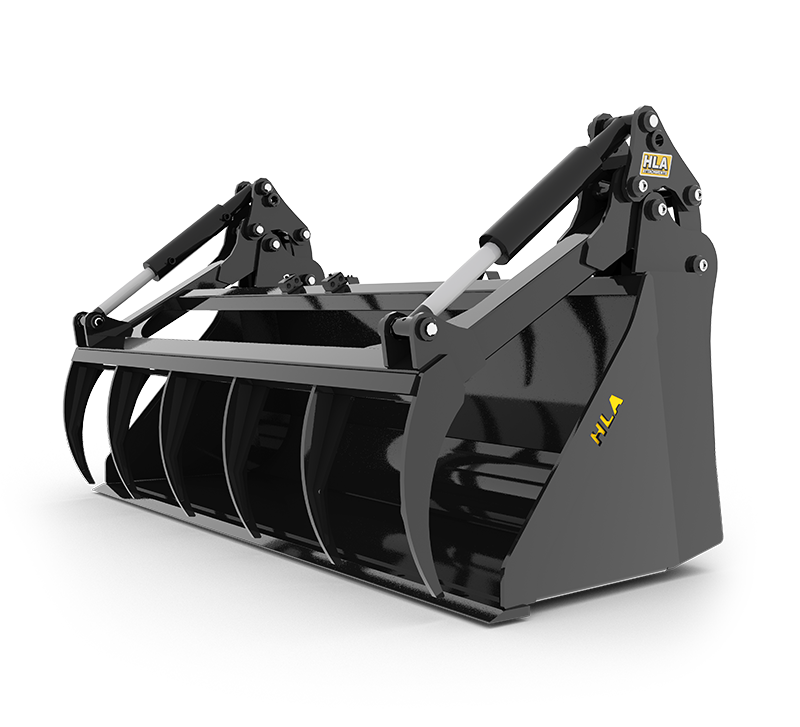

HLA Attachments SBLP66GRS60 66-Inch Low-Profile Skid-Steer Bucket with GRS60 Grapple combines a regular-duty material bucket with a hydraulically operated grapple for controlled loading, carrying, and handling. Its low-profile design features a lower back and longer base to improve visibility of the cutting edge, while the grapple opens to 35 inches for handling bulky or irregular material. Designed especially for skid steers with limited clearance for grapple arms, this configuration includes HLA’s BO500 skid-steer-type quick-attach mount.

Low-Profile Design for Better Visibility

The SBLP66GRS60 uses a 66-inch-inside-width bucket with a low back and extended base. This geometry helps the operator see the bucket cutting edge more clearly during approach, loading, and placement. The bucket measures 32 inches deep and 19 inches high, providing an 11.4-cubic-foot struck capacity and a 16.1-cubic-foot SAE heaped capacity.

Tapered, self-cleaning end plates are designed to reduce material buildup inside the bucket. A reinforced top lip adds support where the bucket and grapple assembly experience working loads. The regular-duty bucket is manufactured from 3/16-inch material with heavier 1/4-inch end plates.

Hydraulic GRS60 Grapple

The integrated GRS60 skid-steer grapple gives the operator hydraulic control over bulky and difficult-to-contain material. Its maximum 35-inch opening provides clearance for a range of material sizes, while two 2-1/2-inch by 8-inch hydraulic cylinders operate the grapple. This arrangement is particularly suited to machines where clearance for conventional grapple arms may be limited.

Auxiliary hydraulics are required to operate the grapple. Hydraulic flow and pressure requirements are not published for this model, so carrier suitability should be confirmed before installation.

Durable Cutting-Edge Area

The bucket is equipped with a 3/4-inch by 4-inch beveled cutting edge for engaging and collecting material. It is also drilled to accept a standard bolt-on cutting edge, allowing the working edge to be further equipped where required.

Key Features

• 66-inch low-profile skid-steer bucket with integrated GRS60 hydraulic grapple
• BO500 skid-steer-type quick-attach mount
• Designed for skid steers with limited grapple-arm clearance
• 35-inch maximum grapple opening
• Two 2-1/2-inch by 8-inch hydraulic cylinders
• Lower bucket back and longer base improve visibility of the cutting edge
• Tapered, self-cleaning end plates help reduce material buildup
• Reinforced top lip for added support
• Regular-duty construction with 3/16-inch bucket material and 1/4-inch end plates
• 3/4-inch by 4-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Approximately 795-pound attachment weight

Specifications

Compatibility

This attachment is compatible with skid-steer-type quick-attach carriers represented by HLA mount code BO500. It is designed for skid steers with limited clearance for grapple arms. Confirm the carrier’s quick-attach interface, lift capacity, operating capacity, and clearance before use.

Carrier and Hydraulic Requirements

A carrier with auxiliary hydraulics is required to operate the GRS60 grapple and its two hydraulic cylinders. Required hydraulic flow and pressure are not specified. The carrier must also be suitable for the attachment’s approximate 795-pound weight, plus the weight of any material being handled.
