HLA Attachments - 66" Heavy Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB66HDBO500]

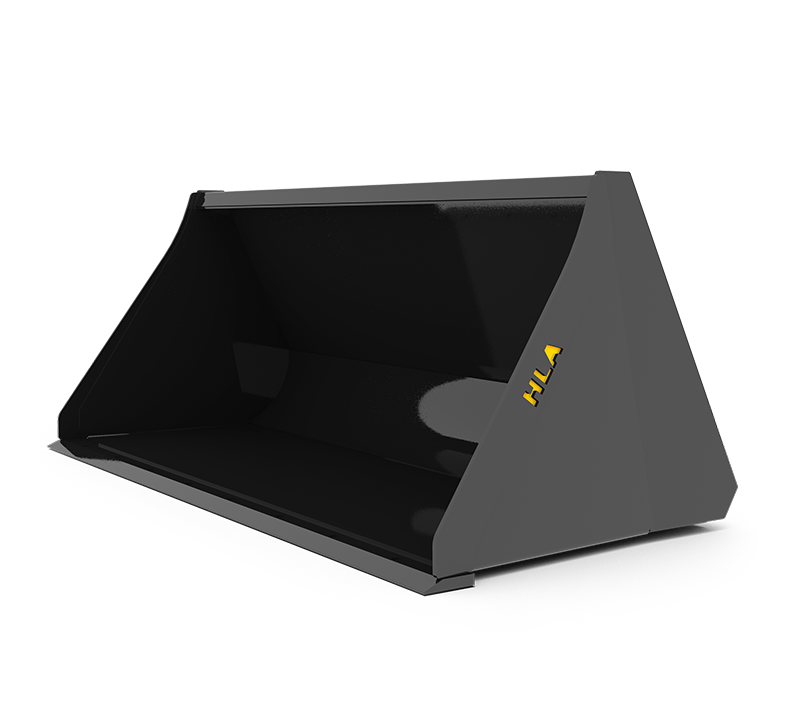

HLA Attachments 66-inch Heavy-Duty Standard Skid Steer Bucket is a durable material-handling bucket designed for demanding loading, carrying, filling, and cleanout work. This SB66HD bucket is equipped with HLA’s BO500 universal skid-steer-style quick-attach loader mount, creating the complete SB66HDBO500 configuration. Heavy-duty 1/4-inch bucket material, 1/4-inch end plates, a reinforced top lip, and a substantial 3/4 x 6-inch beveled cutting edge provide the strength required for regular, hard-working use. With a 66-inch inside width, 19.0-cubic-foot SAE heaped capacity, and approximately 590-pound weight, it combines practical capacity with a reinforced, easy-filling profile.

Heavy-Duty Bucket Construction

The SB66HDBO500 is the heavy-duty standard bucket configuration, rather than a regular-duty, low-profile, high-volume, or long-lip model. Both the bucket shell and end plates are made from 1/4-inch material. Reinforcement across the top lip, round back, and end plates helps the bucket withstand demanding material-handling work while maintaining its shape and strength.

A 3/4 x 6-inch beveled cutting edge provides a robust working edge for engaging material. The bucket is also drilled to accept an optional standard bolt-on cutting edge, allowing the working edge to be adapted when required.

Designed for Filling and Cleanout

The reinforced round-back design supports strength while promoting easy filling and cleanout. Tapered, self-cleaning end plates help reduce material buildup inside the bucket, making it easier to release carried material. The flat top also serves as a convenient visual level indicator, helping the operator judge bucket position during use.

Capacity is rated at 15.0 cubic feet struck level and 19.0 cubic feet SAE heaped. The bucket measures 30 inches deep and 26 inches high, providing a useful standard-profile shape for general material loading and carrying applications.

Key Features

• Heavy-duty standard skid-steer material bucket
• 66-inch inside width and approximately 68-inch outside width
• BO500 universal skid-steer-style quick-attach loader mount
• 1/4-inch bucket material for heavy-duty construction
• 1/4-inch end plates for added strength
• 3/4 x 6-inch beveled cutting edge
• Drilled for an optional standard bolt-on cutting edge
• Reinforced top lip, round back, and end plates
• Round-back profile supports easy filling and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top functions as a visual level indicator
• 15.0-cubic-foot struck capacity
• 19.0-cubic-foot SAE heaped capacity
• Approximate weight of 590 pounds

Compatibility

This bucket is fitted with HLA mount code BO500, a universal skid-steer-style quick-attach loader mount. Confirm that the intended machine uses a compatible universal skid-steer-style quick-attach interface before ordering or installation.
