HLA Attachments

HLA Attachments - 60" Tine For HD55 Pallet Fork - Replacement Tine [LA-HD560]

SKU LA-HD560
Starting at $52500
Starting at $52500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

HLA Attachments LA-HD560 60-Inch Replacement Tine is a solid forklift tine designed for the HLA HD55 heavy-duty pallet-fork carriage. With a 60-inch length, a robust 1-1/2 by 4-inch profile, and Class II hook-type mounting, it provides a direct replacement option for damaged or worn tines on a compatible HD55 fork assembly. It is well suited to material-handling applications where the extra reach of a 60-inch tine is required for pallets, bundled materials, and other supported loads.

Heavy-Duty Replacement Fork Tine

The LA-HD560 is an individual replacement pallet-fork tine rather than a complete pallet-fork assembly. Its solid forklift-tine construction is intended for the demands of regular material handling, while the Class II hook-type design allows it to mount to the compatible HLA HD55 carriage.

The 60-inch tine length corresponds with HLA’s complete HD5560 pallet-fork assembly. Replacing a worn or damaged tine with the correct model helps maintain the intended fit and configuration of the fork assembly without requiring replacement of the complete carriage.

Key Features

  • Individual replacement pallet-fork tine
  • Designed for the HLA HD55 heavy-duty pallet-fork series
  • 60-inch tine length for extended load support
  • Solid forklift-tine construction
  • Heavy-duty 1-1/2 x 4-inch tine profile
  • Class II hook-type mounting
  • Corresponds with the HLA HD5560 complete fork assembly

Compatibility

This replacement tine is compatible with the HLA HD55 5,500 lb-capacity heavy-duty pallet-fork carriage. It uses a Class II hook-type fork mounting and has the profile specified for the HD55 series.

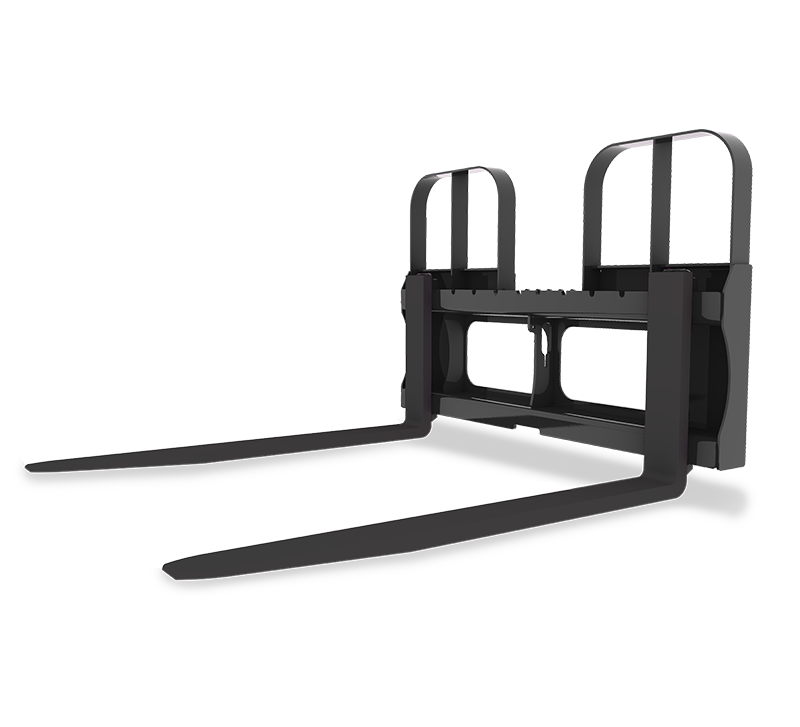

The corresponding complete pallet-fork assembly is model HD5560. That complete assembly is rated for 5,500 lb at a 24-inch load center. This capacity applies to the complete HD5560 fork assembly and should not be interpreted as an individual-tine capacity.

Specifications

Brand HLA Attachments
Model LA-HD560
Product type Replacement pallet-fork tine
Tine length 60 in
Tine cross-section 1-1/2 x 4 in
Construction Solid forklift tine
Mounting class/type Class II hook type
Compatible pallet-fork series HLA HD55
Corresponding complete assembly HD5560
Complete HD5560 assembly rated capacity 5,500 lb at a 24 in load center
Complete HD5560 assembly approximate weight 515 lb

Important: The listed 515 lb approximate weight refers to the complete HLA HD5560 pallet-fork assembly, not to this individual LA-HD560 replacement tine.
