HLA Attachments - 60" Regular Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB60BO500]

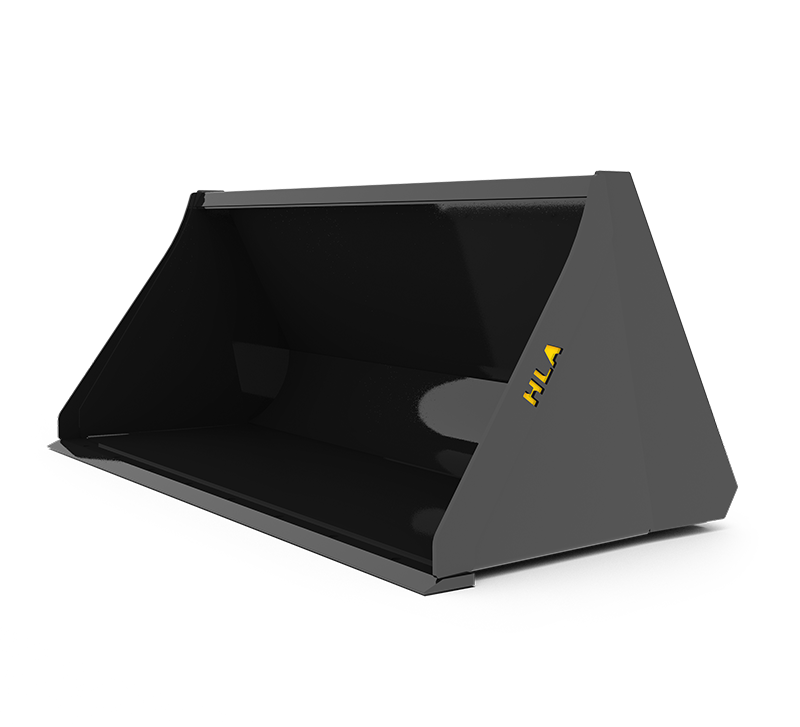

HLA Attachments SB60BO500 60-Inch Regular Duty Standard Skidsteer Bucket is a practical material-handling bucket equipped with the BO500 universal skid-steer quick-attach configuration. Designed for regular-duty loading, carrying, filling, and cleanout applications, it combines a 60-inch inside width with a 13.7 cu. ft. struck capacity and 17.2 cu. ft. SAE heaped capacity. Reinforced construction, tapered self-cleaning end plates, and a round-back profile help the bucket fill efficiently while reducing material buildup during operation.

Built for Regular-Duty Material Handling

The SB60BO500 uses 3/16-inch bucket material and 1/4-inch end plates for dependable regular-duty performance. Its reinforced top lip, round back, and reinforced end plates provide additional strength in key areas of the bucket. The round-back design also supports easy filling and cleanout, making the bucket well suited to routine handling tasks where efficient loading and material release are important.

A 3/4 x 4-inch beveled cutting edge provides a durable working edge for engaging material. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be paired with compatible optional HLA cutting-edge components when the application calls for an additional wear surface or a different edge profile.

Operator-Friendly Bucket Design

The flat top of the bucket serves as a visual level indicator, helping the operator judge the bucket angle during use. Tapered, self-cleaning end plates are designed to reduce material buildup, while the reinforced round back encourages clean filling and discharge. These features make the bucket straightforward to position, load, and empty during everyday skid-steer work.

With an approximate outside width of 62 inches and an approximate weight of 455 lb, this model offers useful capacity in a compact 60-inch inside-width format. Its depth is 28 inches and its height is 26 inches.

Key Features

• Regular-duty standard skid-steer bucket
• BO500 universal skid-steer quick-attach mount configuration
• 60-inch inside width
• Approximately 62-inch outside width
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4 x 4-inch beveled cutting edge
• Reinforced top lip for added strength
• Reinforced round back and end plates
• Round-back design supports easy filling and cleanout
• Flat top serves as a level indicator
• Tapered, self-cleaning end plates help reduce material buildup
• Drilled for a standard bolt-on cutting edge
• 13.7 cu. ft. struck capacity
• 17.2 cu. ft. SAE heaped capacity

Compatibility and Optional Accessories

The HLA Attachments SB60BO500 is configured with the BO500 universal skid-steer quick attach. It is also compatible with the following optional HLA accessories:

• HLA TB60 bolt-on tooth bar
• HLA 346CEB 3/4 x 6-inch double-bevel bolt-on cutting edge
• HLA 348CEB 3/4 x 8-inch double-bevel bolt-on cutting edge
• HLA 346CESB 3/4 x 6-inch single-bevel serrated bolt-on cutting edge
