HLA Attachments - 60" Regular Duty Standard Front-End Loader Bucket [LA-MB60BO500]

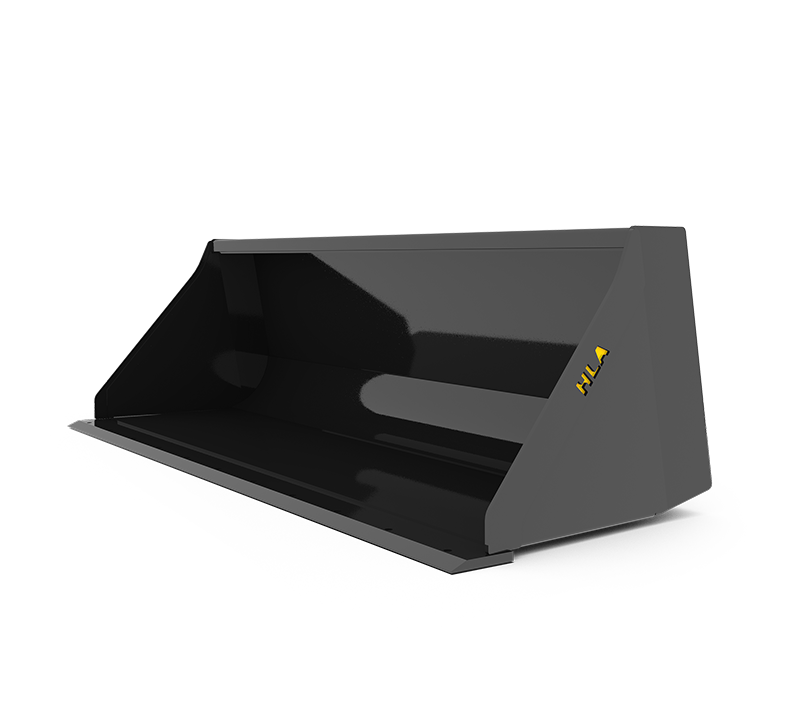

HLA Attachments MB60BO500 60-Inch Regular-Duty Standard Front-End Loader Bucket is a practical material-handling bucket designed for loaders using the BO500 universal skid-steer-style quick-attach interface. Its 60-inch inside width, 14.0-cubic-foot struck capacity, and 17.6-cubic-foot SAE heaped capacity make it well suited to routine loading, carrying, filling, and cleanout work. Regular-duty construction combines a 3/16-inch bucket shell, 1/4-inch end plates, reinforced high-stress areas, and a substantial beveled cutting edge for dependable performance.

Built for Efficient Material Handling

The MB60 bucket has a reinforced round back and reinforced end plates that provide strength while promoting easy filling and cleanout. Tapered, self-cleaning end plates help reduce material buildup, allowing the bucket to empty more cleanly during repetitive loading work.

A flat top serves as a convenient level indicator, helping the operator judge bucket position from the loader seat. The 28-inch depth and 25-inch height provide useful capacity in a compact 60-inch bucket, while the approximately 62-inch outside width should be considered when checking machine coverage, access, and storage space.

Durable Regular-Duty Construction

The bucket is manufactured from 3/16-inch material and fitted with 1/4-inch end plates. Its reinforced top lip adds rigidity across the bucket opening, while the reinforced back and end plates support the bucket in regular material-handling applications.

At the working edge, a 3/4-by-4-inch beveled cutting edge provides a durable contact surface for engaging material. The bucket is also drilled to accept an optional standard bolt-on cutting edge, allowing the working edge to be configured with additional wear protection when required.

Key Features

• 60-inch inside width for regular-duty loader work
• BO500 universal skid-steer-style quick-attach mounting interface
• 14.0-cubic-foot struck capacity
• 17.6-cubic-foot SAE heaped capacity
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4-by-4-inch beveled cutting edge
• Reinforced top lip for added rigidity
• Reinforced round back and end plates for strength, easy filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat bucket top functions as a visual level indicator
• Drilled for an optional standard bolt-on cutting edge
• Approximate bucket weight of 440 pounds

Loader Compatibility

The HLA Attachments MB60BO500 is configured with the BO500 universal skid-steer-style loader mount. It is intended for loaders equipped with the corresponding universal skid-steer-style quick-attach interface represented by HLA mounting code BO500. Confirm the loader’s mounting interface and operating capacity before installation and use.
