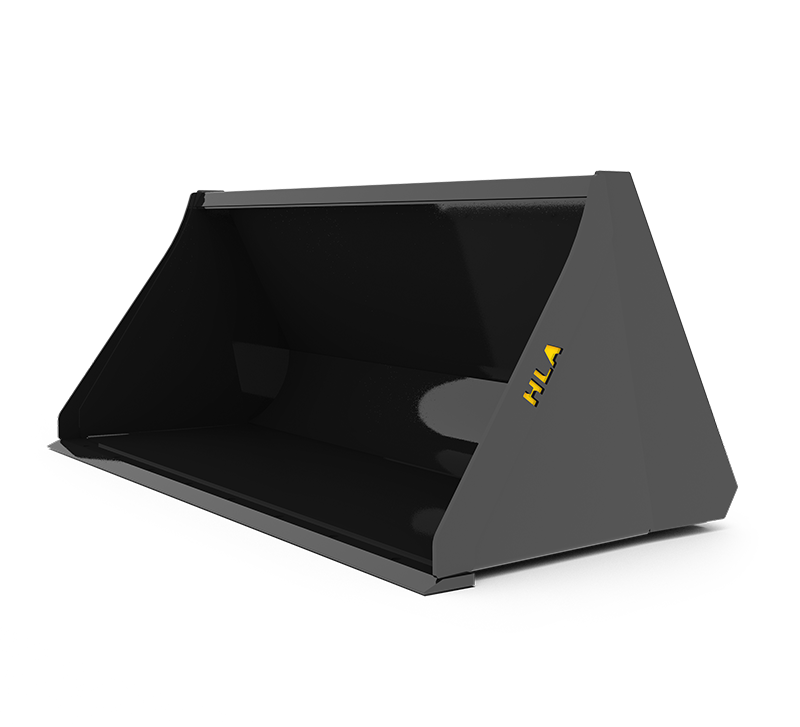

HLA Attachments - 54" Regular Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB54BO500]

The HLA Attachments SB54BO500 54-inch Regular-Duty Standard Skid-Steer Bucket is a universal quick-attach bucket designed for standard material-handling applications. Its 54-inch inside width, 12.3 cu. ft. struck capacity, and 15.4 cu. ft. SAE heaped capacity provide a practical combination of bucket size and carrying capacity. Regular-duty construction includes 3/16-inch bucket material, 1/4-inch end plates, a reinforced top lip, and reinforced round back and end plates. The BO500 mounting configuration fits compatible universal skid-steer quick-attach carriers, making this bucket suitable for operators seeking a straightforward, durable attachment for routine bucket work.

Durable Regular-Duty Construction

The SB54 is built around a reinforced bucket structure intended for regular-duty use. Its 3/16-inch bucket material is paired with 1/4-inch end plates to support the sides of the bucket. The round back, end plates, and top lip are reinforced for additional structural support.

A 3/4 x 4-inch beveled cutting edge provides a substantial working edge for engaging material. The bucket is also factory-drilled to accept an optional bolt-on cutting edge, allowing it to be configured with one of the manufacturer-listed cutting-edge options when required.

Designed for Practical Operation

The bucket’s flat top serves as a convenient level indicator, helping the operator judge bucket position during operation. Tapered, self-cleaning end plates are designed to reduce material buildup around the sides of the bucket. With a depth of 28 inches and a height of 26 inches, the SB54BO500 offers 12.3 cu. ft. of struck capacity and 15.4 cu. ft. of SAE heaped capacity.

The specified 54-inch measurement is the bucket’s inside width. Following the manufacturer’s instruction to add two inches to the inside width, the calculated outside width is 56 inches. Approximate bucket weight is 425 lb.

Key Features

• Regular-duty standard material skid-steer bucket
• 54-inch inside width
• BO500 universal skid-steer quick-attach mounting configuration
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4 x 4-inch beveled cutting edge
• Reinforced top lip for additional structural support
• Reinforced round back and end plates
• Flat top serves as a bucket-level indicator
• Tapered, self-cleaning end plates help reduce material buildup
• Drilled to accept an optional bolt-on cutting edge
• 12.3 cu. ft. struck capacity
• 15.4 cu. ft. SAE heaped capacity

Compatibility

The SB54BO500 uses the HLA BO500 universal skid-steer quick-attach mount. It is compatible with universal skid-steer quick-attach carriers that accept this mounting configuration. Confirm the carrier style and the machine’s attachment capacity before installation.

Manufacturer-Listed Options

The bucket is drilled for an optional bolt-on cutting edge. Manufacturer-listed configurations include the 346CEB 3/4 x 6-inch double-bevel bolt-on cutting edge, 348CEB 3/4 x 8-inch double-bevel bolt-on cutting edge, and 346CESB 3/4 x 6-inch single-bevel serrated bolt-on cutting edge. RTMBK knock-on ripper teeth are also listed as an available option.
