HLA Attachments - 54" Heavy Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB54HDBO500]

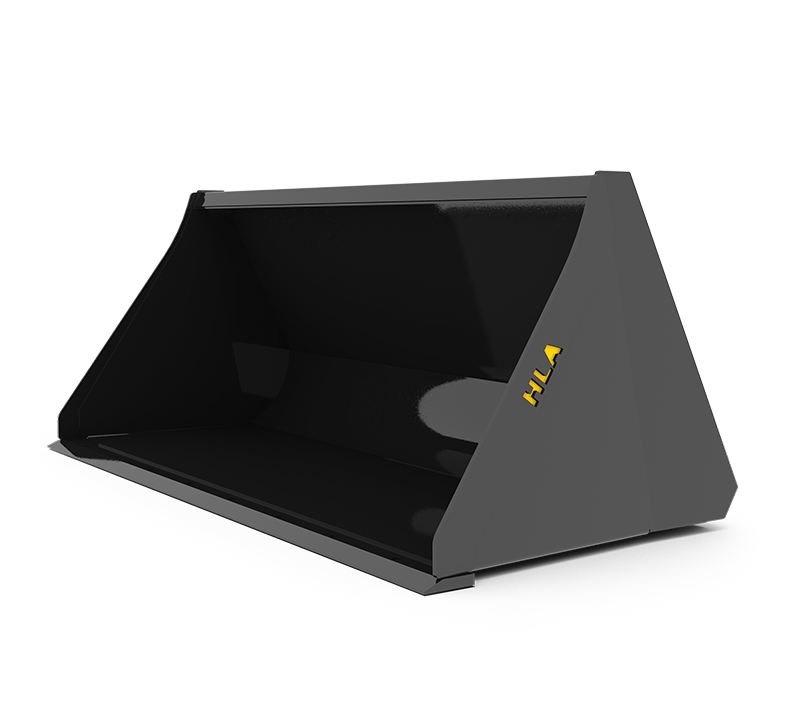

HLA Attachments SB54HDBO500 54-inch Heavy Duty Standard Skid-Steer Bucket is a robust, general-purpose bucket built for skid-steer loaders and compatible machines equipped with a universal skid-steer quick-attach interface. Its heavy-duty standard profile combines 1/4-inch bucket material, 1/4-inch end plates, a reinforced top lip, and a substantial 3/4 x 6-inch beveled cutting edge. With a 54-inch inside width and 15.4-cubic-foot SAE heaped capacity, it is designed for efficient loading, carrying, grading, filling, and cleanout.

Heavy-Duty Construction

The SB54HD is constructed for demanding material-handling applications. Its reinforced round back and reinforced end plates add strength while promoting smooth filling and easier cleanout. Tapered, self-cleaning end plates help reduce material buildup, making the bucket practical when moving loose or compacted materials.

A reinforced top lip supports the bucket structure, while the flat top also serves as a convenient level indicator. This allows the operator to more easily judge bucket position during loading, carrying, or grading work.

Durable Cutting Edge

The bucket is fitted with a 3/4 x 6-inch beveled cutting edge for dependable contact with the working surface. It is also drilled to accept an optional bolt-on cutting edge, providing a straightforward upgrade or wear-protection option when required.

Capacity and Working Dimensions

The 54-inch inside width provides a compact working footprint, while the approximately 56-inch outside width helps operators assess machine and job-site clearance. Capacity is rated at 12.3 cubic feet struck and 15.4 cubic feet SAE heaped. The bucket measures 30 inches deep and 26 inches high, with an approximate listed weight of 515 lb.

Key Features

• Heavy-duty standard-profile skid-steer bucket
• 54-inch inside width and approximately 56-inch outside width
• 12.3 cu ft struck capacity
• 15.4 cu ft SAE heaped capacity
• 1/4-inch main bucket material
• 1/4-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Drilled for an optional bolt-on cutting edge
• Reinforced top lip for added strength
• Reinforced round back and end plates support strength, filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top serves as a bucket-level indicator
• BO500 universal skid-steer mounting configuration
• No hydraulic connection required

Compatibility

The SB54HDBO500 uses HLA Attachments’ BO500 universal skid-steer weld-on mounting configuration. It is compatible with skid-steer loaders and other suitable machines using the universal skid-steer quick-attach interface. Verify the host machine’s attachment interface and operating capacity before installation or use.
