HLA Attachments - 54" Compact Scrap Grapple Bucket - Hydraulic Material Handling [LA-SGBC54BO500]

SKU LA-SGBC54BO500
Starting at $3,60000
Starting at $3,60000

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

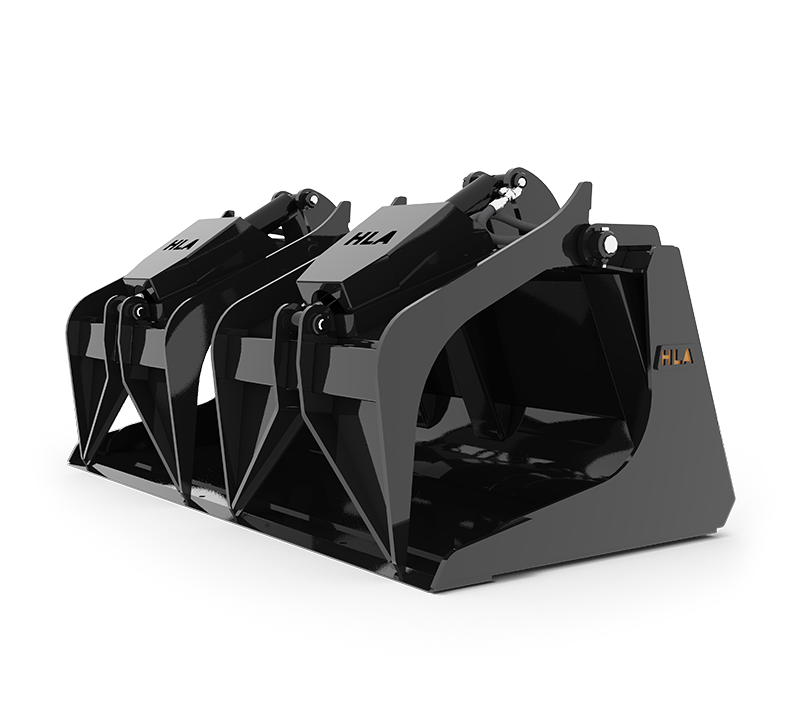

HLA Attachments SGBC54BO500 54-inch Compact Scrap Grapple Bucket combines a compact bucket profile with hydraulic grapple control for material-handling applications. Configured with the BO500 skid-steer-style quick-attach mount, this model has a 54-inch inside width, an approximately 56-inch outside width and a single grapple arm powered by an included 2-1/2 x 8-inch hydraulic cylinder. Its compact 26-inch overall height and 26-inch overall depth make it a practical hydraulic attachment for compatible quick-attach loaders and carriers.

Compact Hydraulic Material Handling

The SGBC54 is designed as a compact scrap grapple bucket with useful capacity and a hydraulically operated grapple arm. The bucket provides 8.1 cubic feet of struck capacity and 10.4 cubic feet of SAE heaped capacity. Its grapple opens to approximately 35–36 inches, providing clearance for loading and handling material before the arm closes to retain the load.

The bucket is manufactured from 3/16-inch material and uses 1/4-inch end plates. A 3/4 x 4-inch beveled cutting edge reinforces the working edge, and the bucket is also drilled to accept a standard bolt-on cutting edge. At approximately 465 lb, the attachment delivers a compact format while retaining the structural features required for grapple-bucket work.

Key Features

  • 54-inch inside bucket width
  • Approximately 56-inch outside width
  • BO500 skid-steer-style quick-attach mounting interface
  • Single hydraulically operated grapple arm
  • Approximately 35–36-inch maximum grapple opening
  • Included 2-1/2 x 8-inch hydraulic cylinder
  • 8.1 cu ft struck bucket capacity
  • 10.4 cu ft SAE heaped capacity
  • 3/16-inch bucket material
  • 1/4-inch end plates
  • 3/4 x 4-inch beveled cutting edge
  • Drilled for installation of a standard bolt-on cutting edge
  • Compact 26-inch overall height and 26-inch overall depth
  • Approximate attachment weight of 465 lb

BO500 Quick-Attach Compatibility

This configuration uses HLA Attachments’ BO500 quick-attach mounting code. It is intended for skid-steer-style quick-attach loader and carrier applications listed by HLA for the BO500 interface. Confirm that the loader or carrier has the correct BO500-compatible quick-attach interface before ordering or installation.

Hydraulic Requirements

The hydraulic cylinder is included with the grapple bucket. Hydraulic flow, pressure and coupler requirements are not specified. HLA lists optional HK90 or HK9090 90-inch hydraulic hose kits with flat-faced couplers. Verify the host machine’s hydraulic connections and hose requirements before use.

Specifications

Brand HLA Attachments
Model SGBC54BO500
Manufacturer Base Model SGBC54
Product Type Hydraulic compact scrap grapple bucket
Mounting Code BO500
Mount Type Skid-steer-style quick attach
Inside Width 54 in
Outside Width Approximately 56 in
Overall Height 26 in
Overall Depth 26 in
Maximum Grapple Opening Approximately 35–36 in
Number of Grapple Arms One
Hydraulic Cylinder 2-1/2 x 8 in; included
Struck Capacity 8.1 cu ft
SAE Heaped Capacity 10.4 cu ft
Bucket Material Thickness 3/16 in
End-Plate Thickness 1/4 in
Cutting Edge 3/4 x 4 in beveled
Bolt-On Cutting Edge Provision Drilled for a standard bolt-on cutting edge
Approximate Weight 465 lb
Optional Hydraulic Hose Kits HK90 or HK9090 90-inch hose kit with flat-faced couplers
Product Code LA-SGBC54BO500
