HLA Attachments - 54" Compact Brush Grapple - Hydraulic Material Handling [LA-BRGC54BO500]

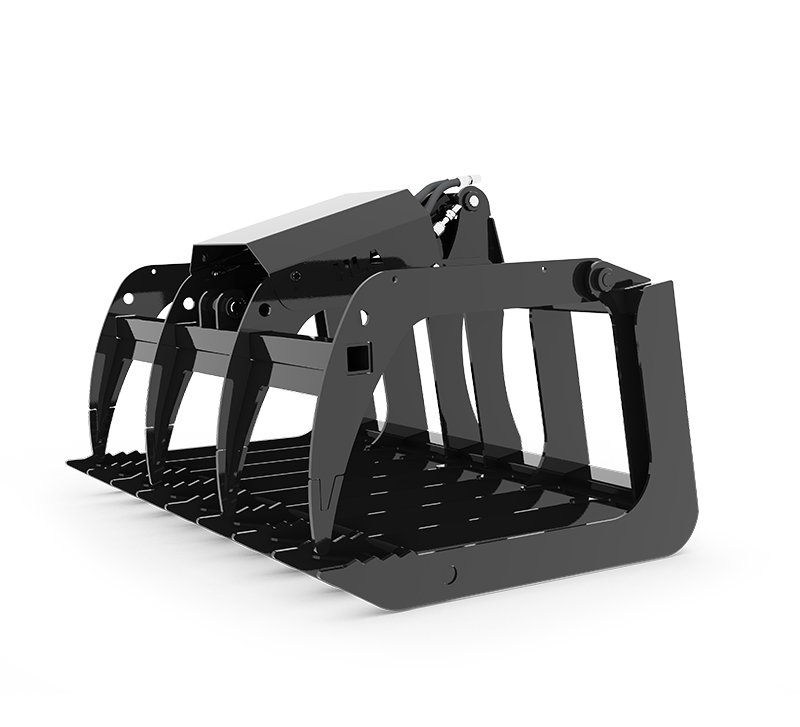

HLA Attachments BRGC54BO500 54-Inch Compact Brush Grapple is a hydraulically operated material-handling attachment designed for loaders equipped with a universal skid-steer-style quick-attach carrier. Its 54-inch working width, single grapple arm, closely spaced tines, and durable AR400 tine and grapple tips make it well suited to collecting, gripping, and moving brush and other bulky material. The compact 28-inch height and 33-inch depth provide a practical combination of capacity and manoeuvrability, while the grapple opens up to 38 inches from the ground to the grapple point.

Compact Hydraulic Material Handling

The BRGC54 uses a single hydraulic grapple arm to hold material against the lower tine structure during transport and positioning. Hydraulic operation is provided by one 2-1/2 x 8-inch cylinder, allowing the operator to open and close the grapple from the loader when it is connected to a suitable auxiliary hydraulic circuit.

With tines positioned 6 inches on centre, the attachment provides multiple contact points across its 54-inch width. The tine tips and grapple tips are manufactured from AR400 material for durability at the primary wear and contact areas. Its approximately 420-pound attachment weight makes it a compact grapple configuration for compatible loader applications.

Key Features

• 54-inch nominal working width
• Single-arm hydraulic grapple configuration
• Opens to 38 inches from the ground to the grapple point
• AR400 tine tips and grapple tips
• Tines spaced 6 inches on centre
• Compact 28-inch overall height
• 33-inch overall depth
• One 2-1/2 x 8-inch hydraulic cylinder
• BO500 universal skid-steer quick-attach mounting interface
• Approximate attachment weight of 420 pounds
• Optional hydraulic hose and hose-support kits available

BO500 Quick-Attach Configuration

This grapple is configured with HLA mounting code BO500, which identifies the universal skid-steer weld-on/quick-attach interface. The complete configured HLA model number is BRGC54BO500: the BRGC54 base attachment combined with the BO500 carrier interface.

The BO500 interface is intended for loader models equipped with a skid-steer-style carrier. Because carrier geometry and loader configurations can vary, fitment should be confirmed against HLA mounting-code information before purchase or installation.

Hydraulic Requirements

The attachment is hydraulically operated using one 2-1/2 x 8-inch cylinder and requires connection to a compatible loader auxiliary hydraulic circuit. HLA does not publish a required hydraulic flow rate or operating pressure for this model in the verified product information. Hydraulic hose kits are available as optional equipment and should be selected to suit the loader connection arrangement.

No PTO connection or PTO horsepower requirement applies to this hydraulic grapple.

Optional Hydraulic Accessories

• HK90: Optional 90-inch hose kit with flat-faced couplers
• HK9090: Optional 90-inch hose kit with 90-degree flat-faced couplers
• SHMK: Optional spring hose-mount kit

Specifications

Compatibility

The HLA BRGC54BO500 is compatible with loader models fitted with a universal skid-steer quick-attach carrier corresponding to HLA mounting code BO500. Confirm the loader’s carrier style, auxiliary hydraulic connections, and attachment capacity before use.
