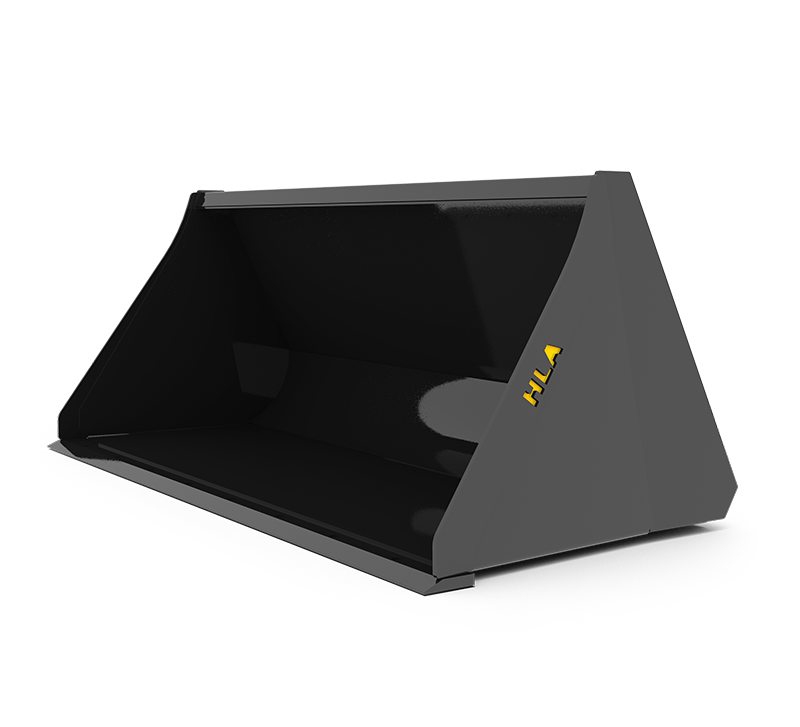

HLA Attachments - 48" Regular Duty Standard Skid Steer Bucket - Universal Skid Steer Bucket [LA-SB48BO500]

HLA Attachments SB48BO500 48-Inch Regular Duty Standard Skid Steer Bucket is a practical material-handling bucket designed for machines equipped with a compatible skid-steer-style quick-attach interface. This configuration combines a 48-inch inside width with HLA’s BO500 universal skid-steer-style mount, providing a compact bucket for loading, carrying, levelling, and cleanout work. Regular-duty construction, reinforced structural areas, tapered self-cleaning end plates, and a substantial beveled cutting edge help deliver reliable performance during everyday bucket operations.

Durable Regular-Duty Construction

The SB48BO500 is manufactured with 3/16-inch bucket material and 1/4-inch end plates. Its reinforced top lip, round back, and reinforced end plates add strength where the bucket needs it while supporting efficient filling and cleanout. The round-back profile helps material move smoothly into and out of the bucket, while the tapered end plates are designed to reduce material buildup.

A 3/4 x 4-inch beveled cutting edge provides a robust working edge for engaging and collecting material. The bucket is also drilled to accept an optional standard bolt-on cutting edge, allowing the working edge to be further equipped when required.

Compact Size with Useful Capacity

With a 48-inch inside width and an approximate 50-inch outside width, this model offers a compact working profile. It provides an 11.0-cubic-foot struck capacity and a 13.6-cubic-foot SAE heaped capacity. The bucket measures 28 inches deep and 26 inches high, with an approximate weight of 400 lb.

The flat top of the bucket serves as a convenient level indicator, helping the operator judge bucket position from the machine. This straightforward design feature can assist with levelling and positioning during regular loading and material-handling tasks.

Key Features

• Regular-duty standard material bucket construction
• 48-inch inside width and approximately 50-inch outside width
• BO500 skid-steer-style universal quick-attach mount
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4 x 4-inch beveled cutting edge
• Drilled for an optional standard bolt-on cutting edge
• Reinforced top lip for added structural strength
• Reinforced round back and end plates support strength, filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat bucket top functions as a level indicator
• 11.0 cu ft struck capacity
• 13.6 cu ft SAE heaped capacity
• Approximately 400 lb

Compatibility

The HLA Attachments SB48BO500 is configured with the BO500 skid-steer-style universal quick-attach mount. It is compatible with machines equipped with a skid-steer-style quick-attach interface that accepts HLA mounting code BO500. Confirm the machine’s quick-attach interface and operating capacity before installation and use.
