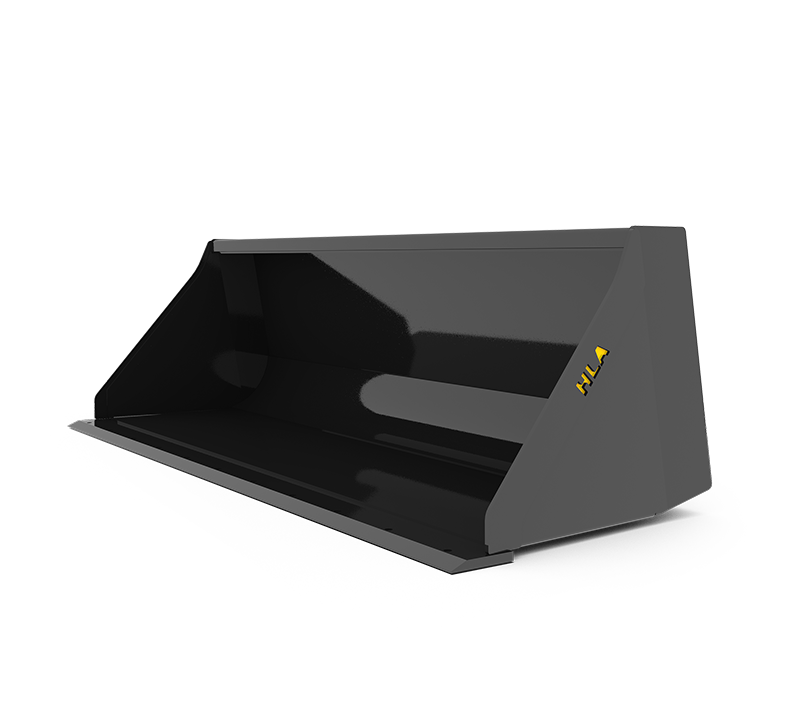

HLA Attachments - 48" Heavy Duty Standard Front-End Loader Bucket [LA-MB48HDBO500]

HLA Attachments MB48HDBO500 48-Inch Heavy Duty Standard Front-End Loader Bucket combines durable 1/4-inch construction, reinforced high-stress areas and a BO500 skid-steer-style quick-attach mounting configuration. Designed for standard material-handling applications, this heavy-duty bucket provides an 11.2 cu ft struck capacity and a 13.9 cu ft SAE heaped capacity. Its reinforced round back supports strength while promoting easy filling and cleanout, and the tapered, self-cleaning end plates help reduce material buildup during operation.

Heavy-Duty Bucket Construction

The MB48HDBO500 is constructed with 1/4-inch main material and 1/4-inch end plates for demanding loader work. A reinforced top lip, round back and reinforced end plates add strength throughout the bucket. The round-back profile also helps material enter and leave the bucket smoothly, improving filling and simplifying cleanout.

At the working edge, a 3/4 x 6-inch beveled cutting edge provides a substantial interface with the material being handled. The bucket is also drilled to accept an optional standard bolt-on cutting edge, allowing it to be equipped for applications where an additional replaceable edge is preferred.

Practical Shape and Operator Visibility

The nominal 48-inch measurement refers to the bucket’s inside width. Its outside width is approximately 50 inches, with a 30-inch depth and 25-inch height. This configuration provides 11.2 cu ft of struck capacity and 13.9 cu ft of SAE heaped capacity.

A flat upper surface serves as a convenient bucket-level indicator, helping the operator judge bucket position from the loader seat. Tapered, self-cleaning end plates are designed to reduce material accumulation, while the reinforced round back assists with clean discharge and straightforward cleanout.

Key Features

• 48-inch inside width with an approximately 50-inch outside width
• Heavy-duty 1/4-inch main material construction
• 1/4-inch end plates for added durability
• Reinforced top lip, round back and end plates
• Round-back design supports easy filling and cleanout
• 11.2 cu ft struck capacity
• 13.9 cu ft SAE heaped capacity
• 3/4 x 6-inch beveled cutting edge
• Drilled for an optional standard bolt-on cutting edge
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top functions as a bucket-level indicator
• BO500 skid-steer-style quick-attach mounting configuration
• Approximate bucket weight of 470 lb

BO500 Quick-Attach Compatibility

This configured MB48HD bucket is fitted with HLA Attachments’ BO500 skid-steer-style quick-attach interface. It is intended for loaders equipped with the matching HLA BO500 carrier configuration.

Verified BO500 applications include selected loader models from Case IH, John Deere, Kubota, Massey Ferguson, New Holland, Terex, Woods, Frey and Kioti. Compatibility is model-specific and must be confirmed for the exact loader before purchase. The machine’s carrier interface and operating capacity should be checked against the BO500 mounting configuration and the bucket’s approximate 470 lb weight.
