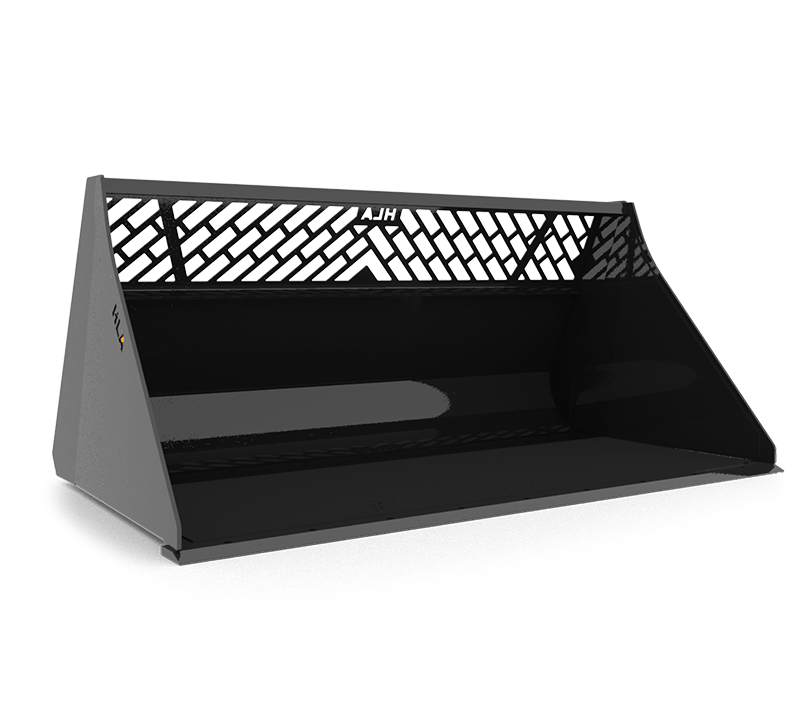

HLA Attachments - 120" High Volume Snow Bucket - High Volume Snow Handling [LA-SBSN120BO500]

The HLA Attachments SBSN120BO500 120-inch High Volume Snow Bucket is designed for efficient high-volume snow handling with compatible skid steers and loaders. Its wide 120-inch inside working width, 47.2-cu.-ft. struck capacity, and 59.4-cu.-ft. SAE heaped capacity help move substantial volumes of snow per pass. A reinforced round back supports easy filling and cleanout, while the screened back improves the operator’s view of the bucket and work area. Equipped with the BO500 universal skid-steer quick-attach interface, this bucket provides straightforward attachment to compatible carriers without requiring a PTO or auxiliary hydraulic connection.

Built for High-Volume Snow Handling

The SBSN120BO500 combines a broad working width with a high-capacity bucket profile. It has a 120-inch inside width and a calculated outside width of approximately 122 inches, making it suitable for clearing and relocating large quantities of snow. The bucket measures 39 inches deep and 31 inches high, providing a substantial interior volume while maintaining a clear, practical profile for the operator.

Construction includes 3/16-inch bucket material and 1/4-inch end plates. The reinforced top lip, round back, and reinforced end plates add strength where the bucket needs it, while the 3/4 x 4-inch beveled cutting edge provides a durable leading edge for working beneath snow. The cutting edge is also drilled to accept an optional standard bolt-on cutting edge.

Designed for Filling, Visibility, and Cleanout

The round-back design is intended to promote easy filling and cleanout as material enters and leaves the bucket. Self-cleaning tapered end plates help reduce material buildup, supporting more efficient operation during repeated loading and dumping cycles. A screened back improves visibility from the operator’s position, helping the operator monitor the bucket during attachment, loading, carrying, and placement.

The flat top also serves as a convenient level indicator. This gives the operator a simple visual reference for bucket positioning when approaching or handling snow.

Key Features

• 120-inch inside width for wide-area snow handling
• 47.2-cu.-ft. struck capacity
• 59.4-cu.-ft. SAE heaped capacity
• BO500 universal skid-steer quick-attach mounting interface
• 3/16-inch bucket material with 1/4-inch end plates
• 3/4 x 4-inch beveled cutting edge
• Reinforced top lip for added structural strength
• Reinforced round back and end plates for strength, easy filling, and cleanout
• Screened back for improved operator visibility
• Self-cleaning tapered end plates help reduce material buildup
• Flat top provides a visual level indicator
• Drilled for an optional standard bolt-on cutting edge
• No PTO or auxiliary hydraulic connection required for the bucket itself

Compatibility

The HLA SBSN120BO500 is compatible with skid steers and loaders equipped with the universal skid-steer quick-attach interface used by the BO500 mount. Confirm that the carrier has the correct universal skid-steer quick-attach connection and is suitable for the bucket’s approximate 1,010-pound attachment weight before use.

Carrier Requirements

This snow bucket is a non-powered attachment. It does not require a PTO connection or auxiliary hydraulic service for bucket operation. The carrier must be equipped with a compatible universal skid-steer quick-attach interface. Carrier suitability should be assessed with consideration for the attachment’s width, capacity, and approximate weight.

Specifications
