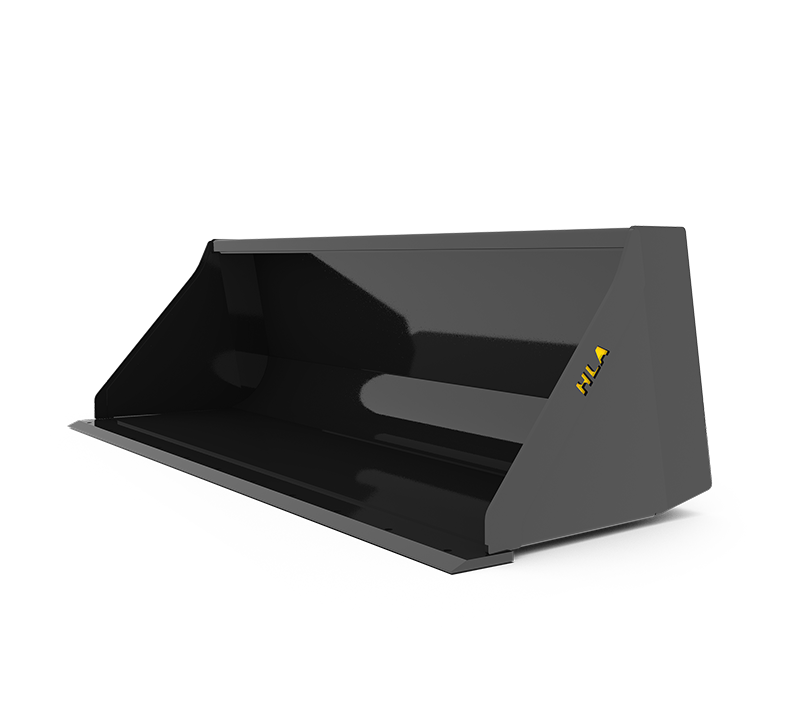

HLA Attachments - 108" Regular Duty Standard Front-End Loader Bucket [LA-MB108BO500]

HLA Attachments MB108BO500 108-Inch Regular-Duty Standard Front-End Loader Bucket is a wide material-handling bucket designed for compatible loaders using a BO500 skid-steer/universal-style quick-attach carrier. Its 108-inch inside width, 32.3-cubic-foot SAE heaped capacity, reinforced construction, and self-cleaning profile make it a practical choice for loading, carrying, levelling, and general material-handling work. The flat top provides a convenient visual level indicator, while the reinforced round back promotes easy filling and cleanout.

Durable Regular-Duty Construction

The MB108 combines 3/16-inch bucket material with 1/4-inch end plates and a reinforced top lip. Its round back and reinforced end plates add strength while helping material enter and leave the bucket smoothly. Tapered, self-cleaning end plates are designed to reduce material buildup during repeated loading and dumping cycles.

A 3/4 x 4-inch beveled cutting edge is supplied as standard. The bucket is also drilled to accept an optional bolt-on cutting edge, allowing the working edge to be configured for different operating requirements. Available options include double-bevel cutting edges, a single-bevel serrated cutting edge, and knock-on ripper teeth with weld-on adapters and flex pins.

Wide Bucket Profile and Useful Capacity

With a 108-inch inside width and an approximate outside width of 110 inches, this bucket provides broad coverage for moving material and working across wider areas. It offers a struck capacity of 25.3 cubic feet and an SAE heaped capacity of 32.3 cubic feet. The bucket measures 28 inches deep and 25 inches high, with an approximate catalogue weight of 675 pounds.

Key Features

• Regular-duty standard front-end loader material bucket
• 108-inch inside width and approximately 110-inch outside width
• 25.3-cubic-foot struck capacity
• 32.3-cubic-foot SAE heaped capacity
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4 x 4-inch beveled standard cutting edge
• Reinforced top lip for added structural support
• Reinforced round back and end plates for strength, easy filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top functions as a visual level indicator
• Drilled for an optional bolt-on cutting edge
• BO500 skid-steer/universal-style quick-attach interface

Compatibility

The MB108BO500 is configured with HLA Attachments’ BO500 quick-attach interface. This interface is identified for skid-steer-style or universal quick-attach carriers and is also listed for various loader models equipped with a compatible universal/skid-steer quick-attach carrier. Confirm that the loader’s carrier matches the BO500 interface and that the loader is suitable for the bucket’s dimensions, approximate weight, and intended load before installation or use.

Optional Wear Edges and Teeth

The bucket is prepared for optional bolt-on edge equipment. Compatible listed options include the 346CEB 3/4 x 6-inch double-bevel cutting edge, the 348CEB 3/4 x 8-inch double-bevel cutting edge, and the 346CESB 3/4 x 6-inch single-bevel serrated cutting edge. Each listed bolt-on cutting-edge option includes bolts and nuts. RTMBK knock-on ripper teeth are also available with weld-on adapters and flex pins.
