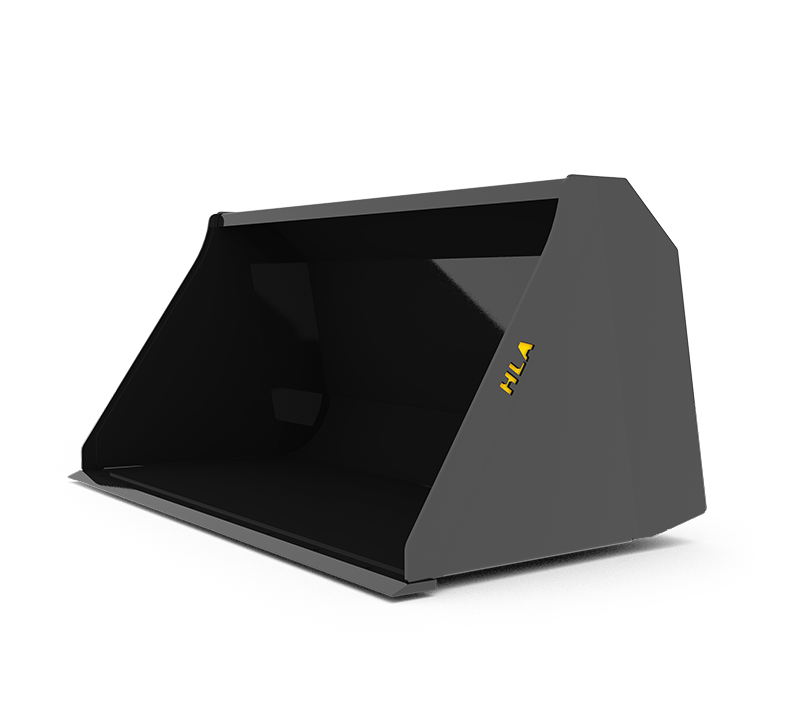

HLA Attachments - 108" High Volume Telehandler Bucket [LA-THMBHV108BO500]

HLA Attachments THMBHV108BO500 108-inch High Volume Telehandler Bucket combines a high-capacity bucket profile with heavy-duty construction and a BO500 universal skid-steer-style quick-attach mount. Designed for compatible telehandlers, it provides a 108-inch inside width, a 2.52-cubic-yard struck capacity and a 3.06-cubic-yard SAE heaped capacity. Its reinforced top lip, 1/4-inch bucket material, 1/4-inch end plates and substantial bevelled cutting edge make it a durable attachment for high-volume loading and material-handling applications.

High-Volume Telehandler Bucket

The THMBHV108 bucket body measures 47 inches deep and 41 inches high, giving it the volume required for handling larger loads. Its 108-inch inside width provides broad coverage, while the approximate 110-inch outside width helps operators evaluate machine clearance, transportation and storage requirements.

Capacity is rated at 2.52 cubic yards struck and 3.06 cubic yards SAE heaped. The bucket has an approximate manufacturer-listed weight of 1,515 lb, which should be considered when assessing the telehandler’s lift capacity, operating limits and attachment compatibility.

Heavy-Duty Construction

HLA Attachments builds the THMBHV108 with 1/4-inch bucket material and matching 1/4-inch end plates. A reinforced top lip adds structural support across the bucket opening. The standard 3/4 x 6-inch bevelled cutting edge provides a robust working edge, and the bucket is drilled to accept a standard bolt-on cutting edge.

For applications requiring a replaceable, double-bevel edge, an optional 348CEB cutting edge is available. This optional component measures 3/4 x 8 inches and includes bolts and nuts.

Key Features

• High-volume telehandler bucket manufactured by HLA Attachments
• 108-inch inside width
• Approximate 110-inch outside width
• 2.52-cu-yd struck capacity
• 3.06-cu-yd SAE heaped capacity
• 1/4-inch bucket material
• 1/4-inch end plates
• Reinforced top lip for added structural support
• Standard 3/4 x 6-inch bevelled cutting edge
• Drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer-style quick-attach interface
• Optional 3/4 x 8-inch double-bevel bolt-on cutting edge available

Compatibility and Mounting

This configuration uses HLA Attachments mounting code BO500, which identifies a universal skid-steer-style quick-attach interface. It is intended for telehandlers equipped with a compatible universal skid-steer quick-attach system.

Mounting-interface style alone does not guarantee fitment with every machine. Confirm the telehandler’s coupler dimensions, attachment interface, lift capacity and operating limits against HLA’s loader-mounting guide before ordering or operating the bucket.

Specifications
