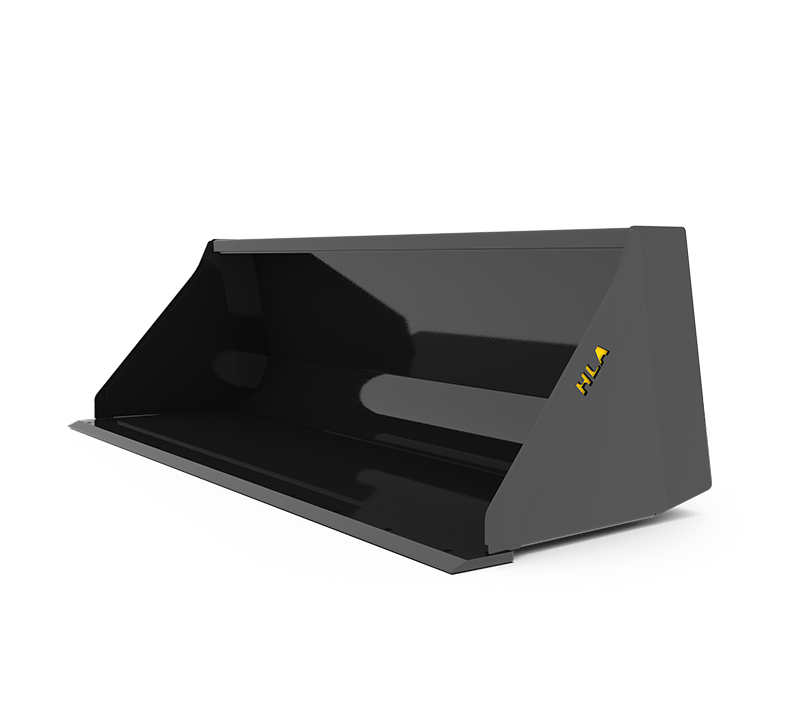

HLA Attachments - 108" Heavy Duty Standard Front-End Loader Bucket [LA-MB108HDBO500]

HLA Attachments MB108HD 108-Inch Heavy Duty Standard Front-End Loader Bucket with BO500 Mount is a high-capacity material bucket designed for demanding loading, handling, filling, and cleanout work. Its 108-inch inside width and 32.3-cu-ft SAE heaped capacity provide broad coverage and substantial carrying volume, while heavy-duty 1/4-inch bucket material, 1/4-inch end plates, and a reinforced structure support regular use in challenging applications. This configuration includes the BO500 universal skid-steer-style quick-attach interface for use with compatible loaders.

Heavy-Duty Material Handling

The MB108HD combines a wide working profile with a reinforced bucket design. It measures 108 inches across the inside and has a calculated outside width of 110 inches, making it suitable for moving larger volumes of material efficiently. Capacity is rated at 25.3 cubic feet struck and 32.3 cubic feet SAE heaped.

The reinforced round back and end plates add strength while promoting easy filling and cleanout. Tapered, self-cleaning end plates help reduce material buildup, which is especially useful during repetitive loading cycles. A flat top also serves as a convenient level indicator, helping the operator judge bucket position from the loader seat.

Durable Cutting Edge and Reinforced Construction

A 3/4-by-6-inch beveled cutting edge provides a substantial working edge for loading and material engagement. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be equipped with compatible optional edges for different operating needs.

Available cutting-edge options include 3/4-by-6-inch and 3/4-by-8-inch double-bevel bolt-on edges, as well as a 3/4-by-6-inch single-bevel serrated edge. Optional knock-on ripper teeth with weld-on adapters and flex pins are also available when more aggressive material penetration is required.

Key Features

• Heavy-duty standard front-end loader material bucket
• 108-inch inside width with a calculated 110-inch outside width
• 25.3-cu-ft struck capacity
• 32.3-cu-ft SAE heaped capacity
• Constructed with 1/4-inch bucket material
• Heavy-duty 1/4-inch end plates
• 3/4-by-6-inch beveled cutting edge
• Reinforced top lip for added structural strength
• Reinforced round back and end plates support strength, easy filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat bucket top serves as a visual level indicator
• Pre-drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer-style quick-attach mount
• Approximately 875 lb

Compatibility

This bucket is fitted with the HLA BO500 mounting code, identified as a universal skid-steer-style quick-attach interface. The BO500 mount is compatible with numerous loaders; however, loader-specific fit must be confirmed against HLA Attachments mounting-code tables before purchase or installation.

Optional Wear and Ground-Engaging Components

• 346CEB: 3/4-by-6-inch double-bevel bolt-on cutting edge
• 348CEB: 3/4-by-8-inch double-bevel bolt-on cutting edge
• 346CESB: 3/4-by-6-inch single-bevel serrated bolt-on cutting edge
• RTMBK: Knock-on ripper teeth with weld-on adapters and flex pins
